Annotation Views

eDrawings supports annotation views.

Click Annotations

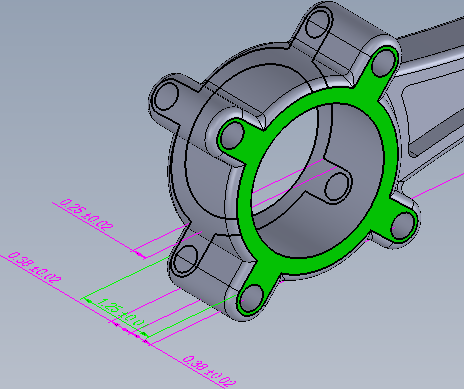

and select a view on the Annotation Views pane. If you select the dot, it shows the annotation view. If you select the name, it activates and orients the annotation view. In this example, the *Front annotation view is activated and oriented.
