Access Bill of Materials Example (C#)

This example shows how to access the Bill of Materials (BOM) of a file in the vault.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
//    a. Click File > New > Project > Visual C# > Windows Forms Application.
//    b. Type EdmBOM_CSharp in Name.
//    c. Click Browse and navigate to the folder where to create the project.
//    d. Click OK.
//    e. Click Show All Files in the Solution Explorer toolbar and expand
//       Form1.cs in the Solution Explorer.
//    f. Replace the code in Form1.cs with this code.
//    g. To create the form, replace the code in Form1.Designer.cs with
//       this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//    name in the Solution Explorer, click Add Reference, click
//    Assemblies > Framework in the left-side panel, browse to the top folder
//    of your SOLIDWORKS PDM Professional installation, locate and click
//    EPDM.Interop.epdm.dll, click Open, and click Add).
// 3. Add Microsoft.VisualBasic as a reference (click COM in the left-side panel,
//    click Microsoft.VisualBasic, click Add, and click Close).

// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
//    Embed Interop Types to False to handle methods that pass arrays of
//    structures.
// 5. Ensure that the vault contains the BOM layout.
//    To inspect the existing layouts:
//    a. Open the SOLIDWORKS PDM Professional Administration tool.
//    b. Log into vault_name.
//    c. Expand vault_name > Bills of Materials.
//    d. Verify that layout, BOM, exists.
// 6. Ensure that an assembly and its parts exist in the root folder of the
//    vault in default configuration, @.
// 7. Ensure that one or more named Bills of Materials exist for the assembly.
//    a. Open Windows Explorer on a vault_name view.
//    b. Click the assembly.
//    c. Click the Bill of Materials tab.
//    d. Click BOM.
//    e. If a named Bill of Materials does not exist in the BOM list:
//       1. Click Save > Save As in the tab toolbar.
//       2. In the Save As dialog, click Save

// 8. Click Debug > Start Debugging or press F5.
//
// Postconditions:

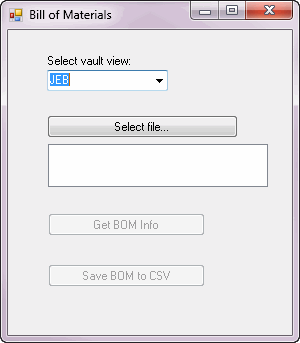

// 1. Opens the Bill of Materials dialog box.
//    a. Select a vault_name view.
//    b. Click Select file.
//    c. In the Select File dialog:
//       1. Click the assembly specified in Preconditions step 6.
//       2. Click Open.
//    d. Click Get BOM Info.
//       Displays message boxes containing:
//       * Information about all named BOMs of the assembly.
//       * Version information for the named BOMs.
//       * Information about all BOM layouts in the vault.
//       * Row and column information about a BOM view in the BOM layout
//         for the selected assembly in its @ configuration.
//    e. Click OK in each message box.
//
    f. Click Save BOM to CSV.
//       Saves the BOM to c:\temp\SavedBOM.csv.

// 2. Close the Bill of Materials dialog box.
//
3. Verify that c:\temp\SavedBOM.csv is created.
//----------------------------------------------------------------------------



//Form1.cs

using System;
using System.Collections;
using System.Collections.Generic;
using System.Data;
using System.Diagnostics;
using System.IO;
using System.Xml.Serialization;
using System.Windows.Forms;
using System.ComponentModel;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;

namespace EdmBOM_CSharp
{
    public partial class Form1 : Form
    {
        private IEdmVault5 vault1 = null;
        IEdmFile7 aFile;
        IEdmBom bom;
        IEdmBomMgr bomMgr;
        IEdmBomView3 bomView;

        public Form1()
        {
            InitializeComponent();
        }
        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                IEdmVault5 vault1 = new EdmVault5();
                IEdmVault8 vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void SelectFiles_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                File1List.Items.Clear();

                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;

                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Set the initial directory in the Select File dialog
                OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;

                //Show the Select File dialog
                System.Windows.Forms.DialogResult DialogResult;
                DialogResult = OpenFileDialog1.ShowDialog();

                if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
                {
                    // do nothing
                }
                else
                {
                    IEdmFolder5 ppoRetParentFolder;
                    foreach (string FileName in OpenFileDialog1.FileNames)
                    {
                        File1List.Items.Add(FileName);
                        aFile = (IEdmFile7)vault1.GetFileFromPath(FileName, out ppoRetParentFolder);
                    }
                }


                GetBOM.Enabled = true;


            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void GetBOM_Click(System.Object sender, System.EventArgs e)
        {

            try
            {
                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault9)vault1;
                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

              if (aFile != null)
              {
                // Get named BOMs and their versions for the selected file
                EdmBomInfo[] derivedBOMs = null;
                aFile.GetDerivedBOMs(out derivedBOMs);

                int arrSize = 0;
                EdmBomVersion[] ppoVersions = null;
                int i = 0;
                int j = 0;
                int id = 0;
                string str = "";
                string verstr = "";
                int verArrSize = 0;
                arrSize = derivedBOMs.Length;

                while (i < arrSize)
                {
                    id = derivedBOMs[i].mlBomID;
                    bom = (IEdmBom)vault2.GetObject(EdmObjectType.EdmObject_BOM, id);
                    str = "Named BOM: " + derivedBOMs[i].mbsBomName + Constants.vbLf + "Check-out user: " + bom.CheckOutUserID + Constants.vbLf + "Current state: " + bom.CurrentState.Name + Constants.vbLf + "Current version: " + bom.CurrentVersion + Constants.vbLf + "ID: " + bom.FileID + Constants.vbLf + "Is checked out: " + bom.IsCheckedOut;
                    MessageBox.Show(str);
                    bom.GetVersions(out ppoVersions);
                    verArrSize = ppoVersions.Length;
                    while (j < verArrSize)
                    {
                        verstr = "BOM version: " + Constants.vbLf + "Type as defined in EdmBomVersionType: " + ppoVersions[j].meType + Constants.vbLf + "Version number: " + ppoVersions[j].mlVersion + Constants.vbLf + "Date: " + ppoVersions[j].moDate + Constants.vbLf + "Label: " + ppoVersions[j].mbsTag + Constants.vbLf + "Comment: " + ppoVersions[j].mbsComment;
                        MessageBox.Show(verstr);
                        j = j + 1;
                    }
                    i = i + 1;
                }

                // Get a BOM view with the specified layout
                bomMgr = (IEdmBomMgr)vault2.CreateUtility(EdmUtility.EdmUtil_BomMgr);
                EdmBomLayout[] ppoRetLayouts = null;
                EdmBomLayout ppoRetLayout = default(EdmBomLayout);
                bomMgr.GetBomLayouts(out ppoRetLayouts);
                i = 0;
                arrSize = ppoRetLayouts.Length;
                str = "";
                while (i < arrSize)
                {
                    ppoRetLayout = ppoRetLayouts[i];
                    str = "BOM Layout " + i + ": " + ppoRetLayout.mbsLayoutName + Constants.vbLf + "ID: " + ppoRetLayout.mlLayoutID;
                    if (ppoRetLayout.mbsLayoutName == "BOM")
                    {
                        bomView = aFile.GetComputedBOM(ppoRetLayout.mbsLayoutName, 0, "@", (int)EdmBomFlag.EdmBf_AsBuilt + (int)EdmBomFlag.EdmBf_ShowSelected);
                    }
                    MessageBox.Show(str);
                    i = i + 1;
                }

                // Display BOM view row and column information
                object[] ppoRows = null;
                IEdmBomCell ppoRow = default(IEdmBomCell);
                bomView.GetRows(out ppoRows);
                i = 0;
                arrSize = ppoRows.Length;
                str = "";
                while (i < arrSize)
                {
                    ppoRow = (IEdmBomCell)ppoRows[i];
                    str = "BOM Row " + i + ": " + Constants.vbLf + "Item ID: " + ppoRow.GetItemID() + Constants.vbLf + "Path name: " + ppoRow.GetPathName() + Constants.vbLf + "Tree level: " + ppoRow.GetTreeLevel() + Constants.vbLf + " Is locked? " + ppoRow.IsLocked();
                    MessageBox.Show(str);
                    i = i + 1;
                }

                EdmBomColumn[] ppoColumns = null;
                bomView.GetColumns(out ppoColumns);
                i = 0;
                arrSize = ppoColumns.Length;
                str = "";
                while (i < arrSize)
                {
                    str = "BOM Column " + i + ": " + Constants.vbLf + "Header: " + ppoColumns[i].mbsCaption + Constants.vbLf + "Column type as defined in EdmBomColumnType: " + ppoColumns[i].meType + Constants.vbLf + "ID: " + ppoColumns[i].mlColumnID + Constants.vbLf + "Flags: " + ppoColumns[i].mlFlags + Constants.vbLf + "Variable ID: " + ppoColumns[i].mlVariableID + Constants.vbLf + "Variable type as defined in EdmVariableType: " + ppoColumns[i].mlVariableType + Constants.vbLf + "Column width: " + ppoColumns[i].mlWidth;
                    MessageBox.Show(str);
                    i = i + 1;
                }


                SaveBOM.Enabled = true;

              }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }

        }

        public void SaveBOM_Click(System.Object sender, System.EventArgs e)
        {

            try
            {
                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault9)vault1;
                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                if ((aFile != null) & (bomView != null))
                {
                    bomView.SaveToCSV("c:\\temp\\SavedBOM.csv"false);

                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }

        }


    }
}

Back to top

//Form1.Designer.cs

namespace EdmBOM_CSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.SelectFiles = new System.Windows.Forms.Button();
            this.File1List = new System.Windows.Forms.ListBox();
            this.GetBOM = new System.Windows.Forms.Button();
            this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
            this.SaveBOM = new System.Windows.Forms.Button();
            this.SuspendLayout();
            //
            // VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(36, 24);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = "Select vault view:";
            //
            // VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(39, 40);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            // SelectFiles
            //
            this.SelectFiles.Location = new System.Drawing.Point(39, 85);
            this.SelectFiles.Name = "SelectFiles";
            this.SelectFiles.Size = new System.Drawing.Size(191, 23);
            this.SelectFiles.TabIndex = 2;
            this.SelectFiles.Text = "Select file...";
            this.SelectFiles.UseVisualStyleBackColor = true;
            this.SelectFiles.Click += new System.EventHandler(this.SelectFiles_Click);
            //
            // File1List
            //
            this.File1List.FormattingEnabled = true;
            this.File1List.HorizontalScrollbar = true;
            this.File1List.Location = new System.Drawing.Point(40, 114);
            this.File1List.Name = "File1List";
            this.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended;
            this.File1List.Size = new System.Drawing.Size(220, 43);
            this.File1List.TabIndex = 4;
            //
            // GetBOM
            //
            this.GetBOM.Location = new System.Drawing.Point(40, 183);
            this.GetBOM.Name = "GetBOM";
            this.GetBOM.Size = new System.Drawing.Size(157, 23);
            this.GetBOM.TabIndex = 6;
            this.GetBOM.Text = "Get BOM";
            this.GetBOM.UseVisualStyleBackColor = true;
            this.GetBOM.Enabled = false;
            this.GetBOM.Click += new System.EventHandler(this.GetBOM_Click);
            //
            // OpenFileDialog1
            //
            this.OpenFileDialog1.FileName = "OpenFileDialog1";
            this.OpenFileDialog1.Title = "Select File";
            //
            // SaveBOM
            //
            this.SaveBOM.Location = new System.Drawing.Point(40, 252);
            this.SaveBOM.Name = "SaveBOM";
            this.SaveBOM.Size = new System.Drawing.Size(157, 23);
            this.SaveBOM.TabIndex = 7;
            this.SaveBOM.Text = "Save BOM to CSV";
            this.SaveBOM.UseVisualStyleBackColor = true;
            this.SaveBOM.Enabled = false;
            this.SaveBOM.Click += new System.EventHandler(this.SaveBOM_Click);
            //
            // Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(284, 363);
            this.Controls.Add(this.SaveBOM);
            this.Controls.Add(this.GetBOM);
            this.Controls.Add(this.File1List);
            this.Controls.Add(this.SelectFiles);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Bill of Materials";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }
        internal System.Windows.Forms.Label VaultsLabel;
        internal System.Windows.Forms.ComboBox VaultsComboBox;
        internal System.Windows.Forms.Button SelectFiles;
        internal System.Windows.Forms.ListBox File1List;
        internal System.Windows.Forms.Button GetBOM;
        internal System.Windows.Forms.OpenFileDialog OpenFileDialog1;

        #endregion

        private System.Windows.Forms.Button SaveBOM;
    }
}




Back to top



Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Access Bill of Materials Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2018 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
