Add Card Variables to Vault Example (VB.NET)

This example shows how to add card variables to a vault and edit them.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio 2010.
'    a. Click File > New > Project > Visual Basic > Windows Forms Application.
'    b. Type AddEditVars in Name.
'    c. Click Browse and navigate to the folder where to create
'       the project.
'    d. Click OK
'    e. Click Show All Files in the Solution Explorer toolbar and expand
'       Form1.vb in the Solution Explorer.
'    f. Replace the code in Form1.vb with this code.
'    g. To create the form, replace the code in Form1.Designer.vb with this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
'    name in the Solution Explorer, click Add Reference, click
'    Assemblies > Framework in the left-side panel, browse to the top folder of
'    your SOLIDWORKS PDM Professional installation, locate and click
'    EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
'    Embed Interop Types to False to handle methods that pass arrays of
'    structures.
' 4. Click Debug > Start Debugging or press F5.
'
' Postconditions:

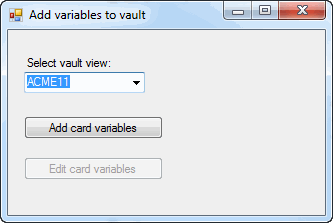

' 1. Displays the Add variables to vault dialog box.
' 2. Select a vault view.
' 3. Click Add card variables
'    a. Adds two card variables, MyNewVar and MySecondVar, to the vault.
'    b. Displays a message box with the IDs of the new variables.
'    c. Click OK.
' 4. Click Edit card variables.
'    a. Displays the Edit Variables dialog box.
'    b. Click OK.
'    c. Displays a message box.
'    d. Click OK.

' 5. Close the Add variables to vault dialog box.
'----------------------------------------------------------------------------

'Form1.vb


Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm


Public Class Form1

    Private vault1 As IEdmVault5 = Nothing
    Dim item As IEdmItem
    Dim fileInt As IEdmFile8

    Public Sub Form1_Load(ByVal sender As System.ObjectByVal e As System.EventArgsHandles MyBase.Load

        Try
            Dim vault1 As IEdmVault5 = New EdmVault5()
            Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
            Dim Views As EdmViewInfo() = Nothing

            vault.GetVaultViews(Views, False)
            VaultsComboBox.Items.Clear()
            For Each View As EdmViewInfo In Views
                VaultsComboBox.Items.Add(View.mbsVaultName)
            Next
            If VaultsComboBox.Items.Count > 0 Then
                VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
            End If

            Button1.Enabled = False

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub


    Public Sub AddVaultVars_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles AddVaultVars.Click
        'Add card variables to vault
        Try
            Dim vault2 As IEdmVault11 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault11)
            If Not vault1.IsLoggedIn Then
                'Log into selected vault as the current user
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            Dim poVarMgr As IEdmVariableMgr6
            poVarMgr = vault2.CreateUtility(EdmUtility.EdmUtil_VariableMgr)

            Dim aoNewVars(1) As EdmVariableData 'Array with 2 variables

            'Set some properties for the first variable
            aoNewVars(0).mbsVariableName = "MyNewVar"
            aoNewVars(0).meType = EdmVariableType.EdmVarType_Text
            aoNewVars(0).mlEdmVariableFlags = EdmVariableFlags.EdmVar_Mandatory
            Dim aoAttributes(0) As EdmAttributeData
            aoAttributes(0).mbsBlockName = "DrawingBorder"
            aoAttributes(0).mbsAttribName = "PartNumber"
            aoAttributes(0).mbsExtensions = "DWG,DXF"
            aoNewVars(0).mpoAttributes = aoAttributes

            'Set some properties for the second variable
            aoNewVars(1).mbsVariableName = "MySecondVar"
            aoNewVars(1).meType = EdmVariableType.EdmVarType_Date

            'Add the variables
            poVarMgr.AddVariables(aoNewVars)

            'Show the IDs of the new variables
            Dim sMsg As String
            sMsg = ""

            Dim iIdx As Integer
            iIdx = LBound(aoNewVars)

            While iIdx <= UBound(aoNewVars)
                sMsg = sMsg + aoNewVars(iIdx).mbsVariableName + " has ID " + CStr(aoNewVars(iIdx).mlVariableID) + vbLf
                iIdx = iIdx + 1
            End While

            MessageBox.Show(sMsg)

            Button1.Enabled = True

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub


    Private Sub Button1_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles Button1.Click
        'Edit card variables
        Try
            Dim vault2 As IEdmVault11 = Nothing
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            vault2 = DirectCast(vault1, IEdmVault11)
            If Not vault1.IsLoggedIn Then
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If

            Dim varMgr As IEdmVariableMgr5
            varMgr = vault2
            If varMgr.EditVariables(Me.Handle.ToInt32()) Then
                MessageBox.Show("An update was made!")
            Else
                MessageBox.Show("No changes were made.")
            End If

        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub
End Class
