Batch Add Item References Example (VB.NET)
This example shows how to add item references in one batch.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio 2010.
' a. Click File > New > Project > Visual Basic > Windows Forms Application.
' b. Type BatchGetFiles in Name.
' c. Click Browse and navigate to the folder where to create the project.
' d. Click OK.
' e. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' f. Replace the code in Form1.vb with this code.
' g. To create the
form, replace the code in Form1.Designer.vb with
' this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add Reference, click
' Assemblies > Framework in the left-side panel, browse to the top folder of
' your SOLIDWORKS PDM Professional installation, locate and click
' EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
' Embed Interop Types to False to handle methods that pass arrays of
' structures.
' 4.
Open Start > All Programs > SOLIDWORKS PDM Professional >
' Item Explorer.
' a. Click the vault to which to add new items.
' b. Click New Item on the toolbar to add
00000004 and 00000005.
' c. Keep the Item Explorer open.
' 5. Click Debug > Start Debugging or press F5.
'
' Postconditions:

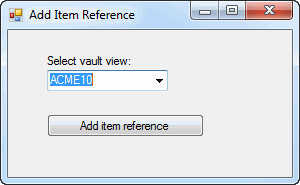

' 1. The Add
Item Reference dialog box displays.
' a. Select a vault view.
' b. Click Add
item reference.
' 2. Click OK in the BatchAddItemRefs dialog
box.
' 3. In the Item Explorer:
' a. Click 00000004 under New Item Folder.
' b. Observe that item 00000005 is linked to item
00000004.
' 4. Close the Add Item Reference dialog box and the Item Explorer.
'----------------------------------------------------------------------------
'Form1.vb
Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm
Public Class Form1
Private vault1 As IEdmVault5 = Nothing
Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
Try
vault1 = New EdmVault5()
Dim vault As IEdmVault8 = DirectCast(vault1, IEdmVault8)
Dim Views As EdmViewInfo() = Nothing
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
End If
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub AddItemRefs_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles AddItemRefs.Click
Try
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
If Not vault1.IsLoggedIn Then
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
AddItemReference(vault1)
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Private Sub AddItemReference(ByVal vault As IEdmVault11)
'Set up the search interface to find items
Dim res As IEdmSearchResult5
Dim search As IEdmSearch7
search = vault.CreateUtility(EdmUtility.EdmUtil_Search)
search.StartFolderID = vault.ItemRootFolderID
search.SetToken(EdmSearchToken.Edmstok_FindFolders, False)
search.SetToken(EdmSearchToken.Edmstok_FindFiles, True)
search.SetToken(EdmSearchToken.Edmstok_FindItems, True)
search.SetToken(EdmSearchToken.Edmstok_Recursive, True)
'Get the database ID of item number 00000004
search.FileName = "00000004.<item>"
res = search.GetFirstResult
If res Is Nothing Then Exit Sub
Dim item4ID As Integer
item4ID = res.ID
'Get the database ID of item number 00000005
search.FileName = "00000005.<item>"
res = search.GetFirstResult
If res Is Nothing Then Exit Sub
Dim item5ID As Integer
item5ID = res.ID
'Add item number 00000005 as a reference to item number 00000004
Dim addRefs(0) As EdmItemRef
addRefs(0).moParentNamePathOrItemID = item4ID
addRefs(0).moNamePathOrID = item5ID
addRefs(0).mlEdmRefFlags = EdmRefFlags.EdmRef_Item
'No item references to remove
Dim removeRefs() As EdmItemRef
removeRefs = Nothing
Dim batch As IEdmBatchItemReferenceUpdate
batch = vault.CreateUtility(EdmUtility.EdmUtil_BatchItemReferenceUpdate)
batch.UpdateReferences(addRefs, removeRefs)
MsgBox("Result of operation: " + vbLf + vault.GetErrorMessage(addRefs(0).mhResult))
End Sub
End Class
Back to top
'Form1.Designer.vb
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
Inherits System.Windows.Forms.Form
'Form overrides dispose to clean up the component list.
<System.Diagnostics.DebuggerNonUserCode()> _
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
Try
If disposing AndAlso components IsNot Nothing Then
components.Dispose()
End If
Finally
MyBase.Dispose(disposing)
End Try
End Sub
'Required by the Windows Form Designer
Private components As System.ComponentModel.IContainer
'NOTE: The following procedure is required by the Windows Form Designer
'It can be modified using the Windows Form Designer.
'Do not modify it using the code editor.
<System.Diagnostics.DebuggerStepThrough()> _
Private Sub InitializeComponent()
Me.VaultsLabel = New System.Windows.Forms.Label()
Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
Me.AddItemRefs = New System.Windows.Forms.Button()
Me.SuspendLayout()
'
'VaultsLabel
'
Me.VaultsLabel.AutoSize = True
Me.VaultsLabel.Location = New System.Drawing.Point(36, 24)
Me.VaultsLabel.Name = "VaultsLabel"
Me.VaultsLabel.Size = New System.Drawing.Size(91, 13)
Me.VaultsLabel.TabIndex = 0
Me.VaultsLabel.Text = "Select vault view:"
'
'VaultsComboBox
'
Me.VaultsComboBox.FormattingEnabled = True
Me.VaultsComboBox.Location = New System.Drawing.Point(39, 40)
Me.VaultsComboBox.Name = "VaultsComboBox"
Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
Me.VaultsComboBox.TabIndex = 1
'
'AddItemRefs
'
Me.AddItemRefs.Location = New System.Drawing.Point(39, 84)
Me.AddItemRefs.Name = "AddItemRefs"
Me.AddItemRefs.Size = New System.Drawing.Size(157, 23)
Me.AddItemRefs.TabIndex = 6
Me.AddItemRefs.Text = "Add item reference"
Me.AddItemRefs.UseVisualStyleBackColor = True
'
'Form1
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(284, 147)
Me.Controls.Add(Me.AddItemRefs)
Me.Controls.Add(Me.VaultsComboBox)
Me.Controls.Add(Me.VaultsLabel)
Me.Name = "Form1"
Me.Text = "Add Item Reference"
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
Friend WithEvents VaultsLabel As System.Windows.Forms.Label
Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
Friend WithEvents AddItemRefs As System.Windows.Forms.Button
End Class
