Batch Change States of Files Example (C#)

This example shows how to change the states of several files in one batch.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
//    a. Click File > New > Project > Visual C# > Windows Forms Application.
//    b. Type BatchChangeFileStates_CSharp in Name.
//    c. Click Browse and navigate to the folder where to create the project.
//    d. Click OK
//    e. Click Show All Files in the Solution Explorer toolbar and expand
//       Form1.cs in the Solution Explorer.
//    f. Replace the code in Form1.cs with this code.
//    g. To create the form, replace the code in Form1.Designer.cs with
//       this code.

// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//    name in the Solution Explorer, click Add Reference, click
//    Assemblies > Framework in the left-side panel, browse to the top folder of
//    your SOLIDWORKS PDM Professional installation, locate and click
//    EPDM.Interop.epdm.dll, click Open, and click Add).
// 3. Add Microsoft.VisualBasic as a reference (click COM in the left-side
//    panel, click Microsoft.VisualBasic, click Add, and click Close).

// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
//    Embed Interop Types to False to handle methods that pass arrays of
//    structures.
// 5. Ensure that a workflow exists with:
//    a. A Waiting for Approval state.
//    b. An Approved state.
//    c. A Passed Approval transition from the Waiting for Approval state to
//       the Approved state.
//    d. One or more vault files in the Waiting for Approval state.
// 6. Modify the bsPasswd parameter in IEdmBatchChangeState4::ChangeState2 to
//    match the password of your logged-in PDM user.

// 7. Click Debug > Start Debugging or press F5.
//
// Postconditions:

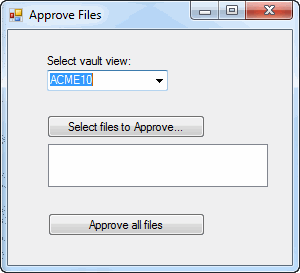

// 1. The Approve Files dialog box displays.
//    a. Select a vault view.
//    b. Click Select files to approve.
//    c. In the Select File dialog:
//       1. Select vault files in the Waiting for Approval state.
//       2. Click Open.
//    d. Click Approve all files.
// 2. Click OK in the Do Transition dialog box.
//    The selected files change to the Approved state using the Passed Approval
//    transition.
// 3. Close the Approve Files dialog box.
//----------------------------------------------------------------------------



//Form1.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;

namespace BatchChangeFileStates_CSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }

        private IEdmVault5 vault1 = null;
        IEdmBatchChangeState4 batchChanger;
        IEdmFile5 aFile;
        IEdmFolder5 aFolder;
        IEdmPos5 aPos;
        bool retVal;

        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                IEdmVault5 vault1 = new EdmVault5();
                IEdmVault8 vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void Transition_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                //File1List.Items.Clear()

                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;

                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Set the initial directory in the Select File dialog
                OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;
                //Show the Select File dialog
                System.Windows.Forms.DialogResult DialogResult;
                DialogResult = OpenFileDialog1.ShowDialog();
                //If the user didn't click Open, exit this subroutine
                if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
                {
                    return;
                }

                batchChanger = (IEdmBatchChangeState4)vault2.CreateUtility(EdmUtility.EdmUtil_BatchChangeState);
                IEdmFolder5 ppoRetParentFolder;
                foreach (string FileName in OpenFileDialog1.FileNames)
                {
                    File1List.Items.Add(FileName);
                    aFile = vault1.GetFileFromPath(FileName, out ppoRetParentFolder);
                    aPos = aFile.GetFirstFolderPosition();
                    aFolder = aFile.GetNextFolder(aPos);
                    // Add each file selected to the batch
                    batchChanger.AddFile(aFile.ID, aFolder.ID);
                }

                batchChanger.Comment = "Transition to Approved state.";

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }


        public void BatchChange_Click(System.Object sender, System.EventArgs e)
        {

            try
            {
                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault7)vault1;
                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                // Get the available transitions
                EdmChangeStateTransitionInfo[] ppoTransitions = null;
                batchChanger.GetAvailableTransitionList(out ppoTransitions);

                int i = 0;
                string str = "";
                while (i <= ppoTransitions.GetUpperBound(0))
                {
                    if (i == 0)
                    {
                        str = ppoTransitions[i].moName;
                    }
                    else
                    {
                        str = str + ", " + ppoTransitions[i].moName;
                    }
                    i = i + 1;
                }

                //MsgBox("Transitions available: " & str)

                // Get list of files affected by the state transition
                IEdmSelectionList6 selList = default(IEdmSelectionList6);
                selList = (IEdmSelectionList6)batchChanger.GetFileList((int)EdmChangeStateFileListFlag.Ecsflf_GetActionUpdated + (int)EdmChangeStateFileListFlag.Ecsflf_GetChanged + (int)EdmChangeStateFileListFlag.Ecsflf_GetUnprocessed);

                EdmSelectionObject selObject = new EdmSelectionObject();

                aPos = selList.GetHeadPosition();
                str = "Files affected by this state transition: ";
                i = 0;
                while (i < selList.Count)
                {
                    selList.GetNext2(aPos, out selObject);
                    str = str + selObject.mbsPath;
                    i = i + 1;
                }

                //MsgBox(str)

                // Create the file reference tree and verify allowed transitions
                retVal = batchChanger.CreateTree("Passed Approval");

                bool retVal2 = false;
                if ((retVal))
                {
                    // Show all of the items in the batch
                    retVal2 = batchChanger.ShowDlg(this.Handle.ToInt32());

                    if ((retVal2))
                    {
                        // User clicked OK; commit all of the items in the batch to the vault
                        batchChanger.ChangeState2(this.Handle.ToInt32(), "password");
                    }
                }

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }

        }

    }
}



Back to top

//Form1.Designer.cs

namespace BatchChangeFileStates_CSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.Transition = new System.Windows.Forms.Button();
            this.File1List = new System.Windows.Forms.ListBox();
            this.BatchChange = new System.Windows.Forms.Button();
            this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
            this.SuspendLayout();
            //
            //VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(36, 24);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = "Select vault view:";
            //
            //VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(39, 40);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            //Transition
            //
            this.Transition.Location = new System.Drawing.Point(39, 85);
            this.Transition.Name = "Transition";
            this.Transition.Size = new System.Drawing.Size(158, 23);
            this.Transition.TabIndex = 2;
            this.Transition.Text = "Select files to approve...";
            this.Transition.UseVisualStyleBackColor = true;
            this.Transition.Click += new System.EventHandler(this.Transition_Click);
            //
            //File1List
            //
            this.File1List.FormattingEnabled = true;
            this.File1List.HorizontalScrollbar = true;
            this.File1List.Location = new System.Drawing.Point(40, 114);
            this.File1List.Name = "File1List";
            this.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended;
            this.File1List.Size = new System.Drawing.Size(220, 43);
            this.File1List.TabIndex = 4;
            //
            //BatchChange
            //
            this.BatchChange.Location = new System.Drawing.Point(40, 183);
            this.BatchChange.Name = "BatchChange";
            this.BatchChange.Size = new System.Drawing.Size(157, 23);
            this.BatchChange.TabIndex = 6;
            this.BatchChange.Text = "Approve all files";
            this.BatchChange.UseVisualStyleBackColor = true;
            this.BatchChange.Click += new System.EventHandler(this.BatchChange_Click);
            //
            //OpenFileDialog1
            //
            this.OpenFileDialog1.FileName = "OpenFileDialog1";
            this.OpenFileDialog1.Multiselect = true;
            this.OpenFileDialog1.Title = "Select File";
            //
            //Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(284, 235);
            this.Controls.Add(this.BatchChange);
            this.Controls.Add(this.File1List);
            this.Controls.Add(this.Transition);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Approve Files";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        internal System.Windows.Forms.Label VaultsLabel;
        internal System.Windows.Forms.ComboBox VaultsComboBox;
        internal System.Windows.Forms.Button Transition;
        internal System.Windows.Forms.ListBox File1List;
        internal System.Windows.Forms.Button BatchChange;
        internal System.Windows.Forms.OpenFileDialog OpenFileDialog1;
    }
}
