> Batch Get and Set Reference Variables Example (C#)

Batch Get and Set Reference Variables Example (C#)

This example shows how to get and set reference variables in one batch.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
//     a. Click File > New > Project > Visual C# > Windows Forms Application.
//     b. Type BatchGetSetRefVariables_CSharp in Name.
//     c. Click Browse and navigate to the folder where to create the project.
//     d. Click OK.
//     e. Click Show All Files in the Solution Explorer toolbar and expand
//       Form1.cs in the Solution Explorer.
//     f. Replace the code in Form1.cs with this code.
//     g. To create the form, replace the code in Form1.Designer.cs with
//        this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Reference, click
//    Assemblies > Framework in the left-side panel, browse to the top folder of
//     your SOLIDWORKS PDM Professional installation, locate and click
//    EPDM.Interop.epdm.dll, click Open, and click Add).
// 3. Add Microsoft.VisualBasic as a reference (click
//     COM in the left-side panel, click
//     Microsoft.VisualBasic, click Add, and click Close).
// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
//    Embed Interop Types to False to handle methods that pass arrays of
//     structures.
// 5. Open the Administration tool.
//     a. Log into a vault.
//     b. Double-click Bill of Materials > BOM.
//     c. Click Description in the Columns list.
//     d. Select Look for variable in reference specific values.
//     e. Click OK.
// 6. Open Windows Explorer on a vault view.
// 7. Ensure that an assembly and its referenced parts reside in the vault.
// 8. Check out the assembly.
// 9. Click the Bill of Materials tab in the vault view.
// 10. Select Latest in the Reference Version dropdown.
// 11. Select @ in the Configuration dropdown.
// 12. Type a description in Description for each part in the assembly.
// 13. Click Save on the Bill of Materials toolbar and close the vault view.
// 14. Click Debug > Start Debugging or press F5.
//
// Postconditions:

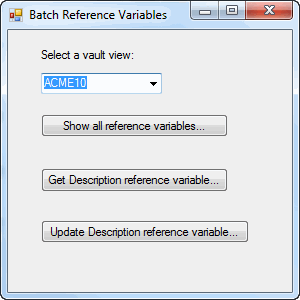

//  1. The Batch Reference Variables dialog box displays.
//     a. Select a vault view.
//     b. Click Show all reference variables.
//        1. In the Select Parent File dialog, select the assembly file identified
//           in Preconditions step 8 and click Open.
//        2. In the Select Child File dialog, select a part file referenced by the
//           assembly file and click Open.
//           Displays all of the reference variables for all configurations.
//        3. Click OK in the dialog box.
//     c. Click Get Description reference variable.
//        1. In the Select Parent File dialog, select the assembly file identified
//           in Preconditions step 8 and click Open.
//        2. In the Select Child File dialog, select a part file referenced by the
//           assembly file and click Open.
//           Displays the current value of reference variable, Description.
//        3. Click OK in the dialog box.
//     d. Click Update Description reference variable.
//        1. In the Select Parent File dialog, select the assembly file identified
//           in Preconditions step 8 and click Open.
//        2. In the Select Child File dialog, select a part file referenced by the
//           assembly file and click Open.
//        3. Type a new description and click OK.
//        4. Click OK in the dialog box.
// 2. Close the Batch Reference Variables dialog box.
// 3. Open the vault view and click the assembly.
// 4. Click the Bill of Materials tab.
// 5. Select @ in the Configuration dropdown.
//  6. Observe the text in the Description column for the updated part.
//----------------------------------------------------------------------------

//Form1.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;

namespace BatchGetSetRefVariables_CSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }

        private IEdmVault5 vault = null;
        IEdmFolder5 ppoRetParentFolder;

        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                vault = new EdmVault5();
                IEdmVault8 vault1 = (IEdmVault8)vault;
                EdmViewInfo[] Views = null;

                vault1.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void Button1_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                ShowRefVars((IEdmVault11)vault);
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void Button2_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                ShowRefDescription((IEdmVault11)vault);
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void Button3_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                UpdateRefDescription((IEdmVault11)vault);
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void ShowRefVars(IEdmVault11 vault)
        {
            if (vault == null)
            {
                vault = (IEdmVault11)new EdmVault5();
            }

            if (!vault.IsLoggedIn)
            {
                vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
            }

            //Let the user select the parent file
            IEdmStrLst5 pathList = default(IEdmStrLst5);
            pathList = (IEdmStrLst5)vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Parent File:");
            if (pathList == null)
                return;

            IEdmFile8 parent = default(IEdmFile8);

            parent = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);

            //Let the user select the child file
            pathList = vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Child File:");
            if (pathList == null)
                return;

            IEdmFile8 child = default(IEdmFile8);
            child = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);

            //Get reference variables in the latest version
            IEdmBatchRefVars batch = default(IEdmBatchRefVars);
            batch = (IEdmBatchRefVars)vault.CreateUtility(EdmUtility.EdmUtil_BatchRefVars);
            EdmRefVar[] vars = null;
            batch.GetAllRefVars(out vars, parent.ID, 0, child.ID);

            //Show the result
            string msg = null;
            msg = "Reference variables:" + Constants.vbLf + Constants.vbLf;
            int idx = 0;
            idx = Information.LBound(vars);
            while (idx <= Information.UBound(vars))
            {
                msg = msg + "Parent ID: " + Convert.ToString(vars[idx].mlParentFileID) + Constants.vbLf;
                msg = msg + "Parent cfg: " + vars[idx].mbsParentCfgName + Constants.vbLf;
                msg = msg + "Child ID: " + Convert.ToString(vars[idx].mlChildFileID) + Constants.vbLf;
                msg = msg + "Child cfg: " + vars[idx].mbsChildCfgName + Constants.vbLf;
                msg = msg + "Status: " + vault.GetErrorMessage(vars[idx].mhResult) + Constants.vbLf;
                msg = msg + "Variable ID: " + Convert.ToString(vars[idx].mlVarID) + Constants.vbLf;
                msg = msg + "Value: " + Convert.ToString(vars[idx].moValue) + Constants.vbLf;
                msg = msg + Constants.vbLf;
                idx = idx + 1;
            }

            Interaction.MsgBox(msg);
        }

        private void ShowRefDescription(IEdmVault11 vault)
        {
            if (vault == null)
            {
                vault = (IEdmVault11)new EdmVault5();
            }

            if (!vault.IsLoggedIn)
            {
                vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
            }

            //Let the user select the parent file
            IEdmStrLst5 pathList = default(IEdmStrLst5);
            pathList = vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Parent File:");
            if (pathList == null)
                return;

            IEdmFile8 parent = default(IEdmFile8);
            parent = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);

            //Let the user select the child file
            pathList = vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Child File:");
            if (pathList == null)
                return;

            IEdmFile8 child = default(IEdmFile8);
            child = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);

            //Get the Description variable
            IEdmVariableMgr6 varMgr = default(IEdmVariableMgr6);
            varMgr = (IEdmVariableMgr6)vault.CreateUtility(EdmUtility.EdmUtil_VariableMgr);
            IEdmVariable5 desc = default(IEdmVariable5);
            desc = varMgr.GetVariable("Description");
            if (desc == null)
                return;

            //Get reference variables in the latest version
            IEdmBatchRefVars batch = default(IEdmBatchRefVars);
            batch = (IEdmBatchRefVars)vault.CreateUtility(EdmUtility.EdmUtil_BatchRefVars);

            EdmRefVar[] vars = new EdmRefVar[1];
            vars[0].mlParentFileID = parent.ID;
            vars[0].mlChildFileID = child.ID;
            vars[0].mbsChildCfgName = "@";
            vars[0].mbsParentCfgName = "@";
            vars[0].mlParentVersion = 0;
            vars[0].mlVarID = desc.ID;

            batch.GetRefVars(ref vars);

            //Show the result to the caller
            string msg = null;
            msg = "Reference variable: " + "Description" + Constants.vbLf + Constants.vbLf;
            msg = msg + "Status: " + vault.GetErrorMessage(vars[0].mhResult) + Constants.vbLf;
            msg = msg + "Value: " + Convert.ToString(vars[0].moValue);
            Interaction.MsgBox(msg);

        }

        private void UpdateRefDescription(IEdmVault11 vault)
        {
            if (vault == null)
            {
                vault = (IEdmVault11)new EdmVault5();
            }

            if (!vault.IsLoggedIn)
            {
                vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
            }

            //Let the user select the parent file
            IEdmStrLst5 pathList = default(IEdmStrLst5);
            pathList = vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Parent File:");
            if (pathList == null)
                return;

            IEdmFile8 parent = default(IEdmFile8);
            parent = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);

            //Let the user select the child file
            pathList = vault.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles, "All Files (*.*)|*.*||", "", "", "", "Select Child File:");
            if (pathList == null)
                return;

            IEdmFile8 child = default(IEdmFile8);
            child = (IEdmFile8)vault.GetFileFromPath(pathList.GetNext(pathList.GetHeadPosition()), out ppoRetParentFolder);

            //Get the Description variable
            IEdmVariableMgr6 varMgr = default(IEdmVariableMgr6);
            varMgr = (IEdmVariableMgr6)vault.CreateUtility(EdmUtility.EdmUtil_VariableMgr);
            IEdmVariable5 desc = default(IEdmVariable5);
            desc = varMgr.GetVariable("Description");
            if (desc == null)
                return;

            //Get reference variables in the latest version
            IEdmBatchRefVars batch = default(IEdmBatchRefVars);
            batch = (IEdmBatchRefVars)vault.CreateUtility(EdmUtility.EdmUtil_BatchRefVars);

            EdmRefVar[] vars = new EdmRefVar[1];
            vars[0].mlParentFileID = parent.ID;
            vars[0].mlChildFileID = child.ID;
            vars[0].mbsChildCfgName = "@";
            vars[0].mbsParentCfgName = "@";
            vars[0].mlParentVersion = 0;
            vars[0].mlVarID = desc.ID;

            batch.GetRefVars(ref vars);

            //Let the user edit the Description variable
            vars[0].moValue = Interaction.InputBox("Enter new description:", "Update Reference Variable", vars[0].moValue.ToString());

            //Store the value back in the reference
            batch.SetRefVars(ref vars);
            Interaction.MsgBox(vault.GetErrorMessage(vars[0].mhResult));
        }
    }
}

//Form1.Designer.cs

namespace BatchGetSetRefVariables_CSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.Button1 = new System.Windows.Forms.Button();
            this.Button2 = new System.Windows.Forms.Button();
            this.Button3 = new System.Windows.Forms.Button();
            this.SuspendLayout();
            //
            //VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(33, 43);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
            this.VaultsComboBox.TabIndex = 0;
            //
            //VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(30, 18);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(100, 13);
            this.VaultsLabel.TabIndex = 1;
            this.VaultsLabel.Text = "Select a vault view:";
            //
            //Button1
            //
            this.Button1.Location = new System.Drawing.Point(33, 84);
            this.Button1.Name = "Button1";
            this.Button1.Size = new System.Drawing.Size(187, 23);
            this.Button1.TabIndex = 2;
            this.Button1.Text = "Show all reference variables...";
            this.Button1.UseVisualStyleBackColor = true;
            this.Button1.Click += new System.EventHandler(Button1_Click);
            //
            //Button2
            //
            this.Button2.Location = new System.Drawing.Point(33, 138);
            this.Button2.Name = "Button2";
            this.Button2.Size = new System.Drawing.Size(187, 24);
            this.Button2.TabIndex = 3;
            this.Button2.Text = "Get Description reference variable...";
            this.Button2.UseVisualStyleBackColor = true;
            this.Button2.Click += new System.EventHandler(Button2_Click);
            //
            //Button3
            //
            this.Button3.Location = new System.Drawing.Point(33, 190);
            this.Button3.Name = "Button3";
            this.Button3.Size = new System.Drawing.Size(208, 23);
            this.Button3.TabIndex = 4;
            this.Button3.Text = "Update Description reference variable...";
            this.Button3.UseVisualStyleBackColor = true;
            this.Button3.Click += new System.EventHandler(Button3_Click);
            //
            //Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(284, 262);
            this.Controls.Add(this.Button3);
            this.Controls.Add(this.Button2);
            this.Controls.Add(this.Button1);
            this.Controls.Add(this.VaultsLabel);
            this.Controls.Add(this.VaultsComboBox);
            this.Name = "Form1";
            this.Text = "Batch Reference Variables";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }
        internal System.Windows.Forms.ComboBox VaultsComboBox;
        internal System.Windows.Forms.Label VaultsLabel;
        internal System.Windows.Forms.Button Button1;
        internal System.Windows.Forms.Button Button2;
        internal System.Windows.Forms.Button Button3;

        #endregion
    }
}

Search 'Batch Get and Set Reference Variables Example (C#)' in the SOLIDWORKS Knowledge Base.

Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:		Feedback on Help Topics
Page:		Batch Get and Set Reference Variables Example (C#)
*Comment:
*		I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Cancel

Print Topic

Select the scope of content to print:

This topic and all topics linked from this topic

Just this topic

This topic and only immediate topics under it

This selected topic and all subtopics

Cancel

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

Never show this message again

Web Help Content Version: API Help (English only) 2018 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
