Generate Configuration Values Example (C#)

This example shows how to copy card control variable values from one configuration to another.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
//    a. Click File > New > Project > Visual C# > Windows Forms Application.
//    b. Type Files_CSharp in Name.
//    c. Click Browse and navigate to the folder where to create
//       the project.
//    d. Click OK
//    e. Click Show All Files in the Solution Explorer toolbar and expand
//       Form1.cs in the Solution Explorer.
//    f. Replace the code in Form1.cs with this code.
//    g. To create the form, replace the code in Form1.Designer.cs with this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//    name in the Solution Explorer, click Add Reference, click
//    Assemblies > Framework in the left-side panel, browse to the top folder of
//    your SOLIDWORKS PDM Professional installation, locate and click
//    EPDM.Interop.epdm.dll, click Open, and click Add).
// 3. Add Microsoft.VisualBasic as a reference (click Framework in the left-side panel,
//    click Microsoft.VisualBasic, click Add, and click Close).

// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
//    Embed Interop Types to False to handle methods that pass arrays of
//    structures.
// 5. Check out a file that has a data card with two or more configurations.

// 6. Click Debug > Start Debugging or press F5.
//
// Postconditions:

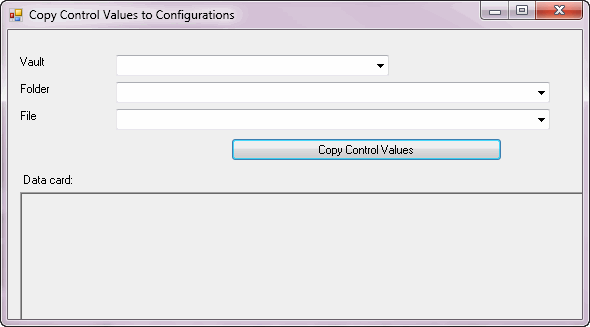

// 1. Displays the Copy Control Values to Configurations dialog box.
//    a. Select a vault view.
//       Folder is set to the root folder.
//    b. Select a file that has a data card with two or more configurations.
//    c. Displays the data card.
//    d. Click Copy Control Values.
//       Copies the value set in Preconditions step 5 to all configurations.

// 2. Close the dialog box.
// 3. Inspect the control values in all of the configurations of the data card.

//----------------------------------------------------------------------------

//Form1.cs


using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using EPDM.Interop.epdm;

namespace Files_CSharp
{
    public partial class MainForm : Form
    {
        Dictionary<int,IEdmFolder5> oFoldersArray = new Dictionary<intIEdmFolder5>();
        Dictionary<intIEdmFile5> oFileArray = new Dictionary<intIEdmFile5>();
        IEdmCardView63 edmCardView;

        public MainForm()
        {
            InitializeComponent();
        }

        private void MainForm_Load(object sender, EventArgs e)
        {
            try
            {
                //Declare and create an instance of IEdmVault5
                IEdmVault5 vault1 = new EdmVault5();

                //Cast IEdmVault5 to IEdmVault8
                IEdmVault8 vault = (IEdmVault8)vault1;

                EdmViewInfo[] Views = null;

                //Populate the form with the names of
                //the vaults on the computer
                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }


            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }

        }

        private void VaultsComboBox_SelectedIndexChanged(object sender, EventArgs e)
        {
            try
            {
                //Declare and create an instance of IEdmVault5
                IEdmVault5 vault = new EdmVault5();

                //Log into selected vault as the current user
                vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());

                IEdmPos5 folderPos = vault.RootFolder.GetFirstSubFolderPosition();

                FoldersComboBox.Items.Clear();
                oFoldersArray.Clear();

                int i = FoldersComboBox.Items.Add("\\");
                oFoldersArray[i] = vault.RootFolder;

                while (!folderPos.IsNull)
                {
                    IEdmFolder5 edmFolder = vault.RootFolder.GetNextSubFolder(folderPos);

                    i = FoldersComboBox.Items.Add(edmFolder.Name);
                    oFoldersArray[i] = edmFolder;
                }

                FoldersComboBox.Text = (string)FoldersComboBox.Items[0];
            }catch(Exception)
            {
                FoldersComboBox.Items.Clear();
                oFoldersArray.Clear();
                FoldersComboBox.Text = "Error";
            }
        }

        private void FoldersComboBox_SelectedIndexChanged(object sender, EventArgs e)
        {
            try
            {
                int i = FoldersComboBox.SelectedIndex;
                IEdmFolder5 edmFolder = oFoldersArray[i];

                IEdmPos5 filePos = edmFolder.GetFirstFilePosition();

                FilesComboBox.Items.Clear();
                oFileArray.Clear();

                while (!filePos.IsNull)
                {
                    IEdmFile5 edmFile = edmFolder.GetNextFile(filePos);

                    i = FilesComboBox.Items.Add(edmFile.Name);
                    oFileArray[i] = edmFile;
                }

                FilesComboBox.Text = (string)FilesComboBox.Items[0];
            }
            catch (Exception ex)
            {
                FilesComboBox.Items.Clear();
                oFileArray.Clear();
                FilesComboBox.Text = "Error";
            }

        }

        private void ShowDataCard()
        {
            if (edmCardView != null)
                edmCardView.ShowWindow(false);

            int i = FoldersComboBox.SelectedIndex;
            IEdmFolder5 edmFolder = oFoldersArray[i];

            i = FilesComboBox.SelectedIndex;
            IEdmFile5 edmFile = oFileArray[i];

            IEdmVault10 vault1 = (IEdmVault10)edmFolder.Vault;

            EdmCardViewParams @params = default(EdmCardViewParams);
            @params.mlFileID = edmFile.ID;
            @params.mlFolderID = edmFolder.ID;
            @params.mlCardID = 0;
            @params.mlX = 10;
            @params.mlY = 15;
            @params.mhParentWindow = CardPanel.Handle.ToInt32();
            @params.mlEdmCardViewFlags = (int)EdmCardViewFlag.EdmCvf_Normal;

            edmCardView = vault1.CreateCardViewEx2(@params, this);
            if (edmCardView == null)
            {
                MessageBox.Show("The file does not have a card.");
                return;
            }

            edmCardView.SetFocus(0);

            int width = 0;
            int height = 0;
            edmCardView.GetCardSize(out width, out height);
            CardPanel.Width = width+20;
            CardPanel.Height = height+20;
            edmCardView.ShowWindow(true);
        }

        private void FilesComboBox_SelectedIndexChanged(object sender, EventArgs e)
        {
            ShowDataCard();
        }

        private void DoBtn_Click(object sender, EventArgs e)
        {
            int i = FoldersComboBox.SelectedIndex;
            IEdmFolder5 edmFolder = oFoldersArray[i];

            i = FilesComboBox.SelectedIndex;
            IEdmFile14 edmFile = (IEdmFile14)oFileArray[i];

            List<string> cfgList = new List<string>();
            EdmStrLst5 configLst =  edmFile.GetConfigurations();
            IEdmPos5 cfgPos = configLst.GetHeadPosition();
            while(!cfgPos.IsNull)
            {
                string configName = configLst.GetNext(cfgPos);
                cfgList.Add(configName);
            }

            foreach (string configName in cfgList)
                // Move variable values from "@" to configName
                edmFile.GenerateDefaultConfigValues(edmFile.ID, "@", configName, ""false);

            ShowDataCard();
        }
    }
}





Back to top

//Form1.Designer.cs

namespace Files_CSharp
{
    partial class MainForm
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.DoBtn = new System.Windows.Forms.Button();
            this.CardPanel = new System.Windows.Forms.Panel();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.FoldersComboBox = new System.Windows.Forms.ComboBox();
            this.FilesComboBox = new System.Windows.Forms.ComboBox();
            this.label1 = new System.Windows.Forms.Label();
            this.label2 = new System.Windows.Forms.Label();
            this.label3 = new System.Windows.Forms.Label();
            this.label4 = new System.Windows.Forms.Label();
            this.SuspendLayout();
            //
            // DoBtn
            //
            this.DoBtn.Location = new System.Drawing.Point(223, 108);
            this.DoBtn.Name = "DoBtn";
            this.DoBtn.Size = new System.Drawing.Size(271, 23);
            this.DoBtn.TabIndex = 0;
            this.DoBtn.Text = "Copy Control Values";
            this.DoBtn.UseVisualStyleBackColor = true;
            this.DoBtn.Click += new System.EventHandler(this.DoBtn_Click);
            //
            // CardPanel
            //
            this.CardPanel.AutoScroll = true;
            this.CardPanel.BackgroundImageLayout = System.Windows.Forms.ImageLayout.Center;
            this.CardPanel.BorderStyle = System.Windows.Forms.BorderStyle.Fixed3D;
            this.CardPanel.Location = new System.Drawing.Point(12, 162);
            this.CardPanel.Name = "CardPanel";
            this.CardPanel.Size = new System.Drawing.Size(841, 479);
            this.CardPanel.TabIndex = 1;
            //
            // VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(108, 25);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(273, 21);
            this.VaultsComboBox.TabIndex = 2;
            this.VaultsComboBox.SelectedIndexChanged += new System.EventHandler(this.VaultsComboBox_SelectedIndexChanged);
            //
            // FoldersComboBox
            //
            this.FoldersComboBox.FormattingEnabled = true;
            this.FoldersComboBox.Location = new System.Drawing.Point(108, 52);
            this.FoldersComboBox.Name = "FoldersComboBox";
            this.FoldersComboBox.Size = new System.Drawing.Size(434, 21);
            this.FoldersComboBox.TabIndex = 3;
            this.FoldersComboBox.SelectedIndexChanged += new System.EventHandler(this.FoldersComboBox_SelectedIndexChanged);
            //
            // FilesComboBox
            //
            this.FilesComboBox.FormattingEnabled = true;
            this.FilesComboBox.Location = new System.Drawing.Point(108, 79);
            this.FilesComboBox.Name = "FilesComboBox";
            this.FilesComboBox.Size = new System.Drawing.Size(434, 21);
            this.FilesComboBox.TabIndex = 4;
            this.FilesComboBox.SelectedIndexChanged += new System.EventHandler(this.FilesComboBox_SelectedIndexChanged);
            //
            // label1
            //
            this.label1.AutoSize = true;
            this.label1.Location = new System.Drawing.Point(9, 25);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(31, 13);
            this.label1.TabIndex = 5;
            this.label1.Text = "Vault";
            //
            // label2
            //
            this.label2.AutoSize = true;
            this.label2.Location = new System.Drawing.Point(9, 52);
            this.label2.Name = "label2";
            this.label2.Size = new System.Drawing.Size(36, 13);
            this.label2.TabIndex = 6;
            this.label2.Text = "Folder";
            //
            // label3
            //
            this.label3.AutoSize = true;
            this.label3.Location = new System.Drawing.Point(9, 79);
            this.label3.Name = "label3";
            this.label3.Size = new System.Drawing.Size(23, 13);
            this.label3.TabIndex = 7;
            this.label3.Text = "File";
            //
            // label4
            //
            this.label4.AutoSize = true;
            this.label4.Location = new System.Drawing.Point(12, 143);
            this.label4.Name = "label4";
            this.label4.Size = new System.Drawing.Size(57, 13);
            this.label4.TabIndex = 8;
            this.label4.Text = "Data card:";
            //
            // MainForm
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(913, 670);
            this.Controls.Add(this.label4);
            this.Controls.Add(this.label3);
            this.Controls.Add(this.label2);
            this.Controls.Add(this.label1);
            this.Controls.Add(this.FilesComboBox);
            this.Controls.Add(this.FoldersComboBox);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.CardPanel);
            this.Controls.Add(this.DoBtn);
            this.Name = "MainForm";
            this.Text = "Copy Control Values to Configurations";
            this.Load += new System.EventHandler(this.MainForm_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        private System.Windows.Forms.Button DoBtn;
        private System.Windows.Forms.Panel CardPanel;
        private System.Windows.Forms.ComboBox VaultsComboBox;
        private System.Windows.Forms.ComboBox FoldersComboBox;
        private System.Windows.Forms.ComboBox FilesComboBox;
        private System.Windows.Forms.Label label1;
        private System.Windows.Forms.Label label2;
        private System.Windows.Forms.Label label3;
        private System.Windows.Forms.Label label4;
    }
}








Back to top



Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Generate Configuration Values Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2018 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
