Get Card Control Information Example (C#)

This example shows how to get information about the list and edit box controls in a selected file's data card.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
//  1. Start Microsoft Visual Studio 2010.
//  2. Click File > New > Project > Visual C# > Windows Forms Application.
//  3. Type CardControlInfo_CSharp in Name.
//  4. Click Browse to navigate to the folder where to create the project.
//  5. Click OK
//
  6. Click Show All Files in the Solution Explorer toolbar and expand
//     Form1.cs in the Solution Explorer.

//  7. Replace the code in Form1.cs with this code.
//  8. To create the form, replace the code in Form1.Designer.cs with this code.
//  9. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Reference, click
//     Framework in the left-side panel, browse to the top folder of your
//     SOLIDWORKS PDM Professional installation, locate and select
//     EPDM.Interop.epdm.dll, click Open, and click Add).
// 10.
Add Microsoft.VisualBasic as a reference (click COM in the left-side panel,
//     click Microsoft.VisualBasic, click Add, and click Close).

// 11. Right-click EPDM.Interop.epdm in References, click Properties, and set
//     Embed Interop Types to False to handle methods that pass arrays of
//     structures.
// 12. Ensure that there is a file in the vault whose extension has a
//     file data card in the vault.

// 13. Click Debug > Start Debugging or press F5.
//
// Postconditions:

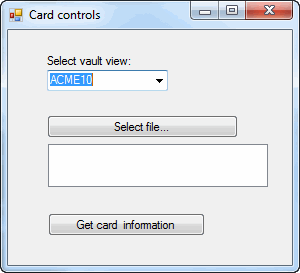

//  1. Displays a dialog.
//  2. Select a vault.
//  3. Click Select file.
//  4. In the Select File dialog:
//     a. Click a file whose extension has a file data card in the vault.
//     b. Click Open.

//  5. Click Get card information.
//  6. A message box displays information about the selected file's data card.
//  7. Click OK in the message box.
//  8. A message box displays the list items of any drop list controls.
//  9. Click OK in the message box.
// 10. A message box displays information about each edit box control in the
//     data card.
// 11. Click OK in the message box.

// 12. Close the dialog.

//----------------------------------------------------------------------------

//Form1.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;

namespace CardControlInfo_CSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        private IEdmVault5 vault1 = null;
        IEdmFile5 aFile;
        IEdmFolder5 aFolder;
        IEdmFolder5 ppoRetParentFolder;
        IEdmCard6 aCard;
        IEdmCardControl7 aControl;
        IEdmPos5 aPos;
        int plWidth;
        int plHeight;
        int plX;
        int plY;
        int plParentCtrlID;
        int plPageNo;
        object poMin = null;
        object poMax = null;
        int varType;
        int contType;
        string fileExt;
        int cardID;
        string str;

        int k;

        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                IEdmVault5 vault1 = new EdmVault5();
                IEdmVault8 vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void SelectFiles_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                File1List.Items.Clear();

                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }

                vault2 = (IEdmVault7)vault1;
                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Set the initial directory in the Select File dialog
                OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;

                //Show the Select File dialog
                System.Windows.Forms.DialogResult DialogResult;
                DialogResult = OpenFileDialog1.ShowDialog();

                if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
                {
                    // do nothing
                }
                else
                {
                    foreach (string FileName in OpenFileDialog1.FileNames)
                    {
                        File1List.Items.Add(FileName);
                        aFile = vault1.GetFileFromPath(FileName, out ppoRetParentFolder);
                        k = FileName.LastIndexOf(".");
                        fileExt = FileName.Substring(k + 1, (FileName.Length) - k - 1);
                        aPos = aFile.GetFirstFolderPosition();
                        aFolder = aFile.GetNextFolder(aPos);
                    }
                }

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void GetCardControls_Click(System.Object sender, System.EventArgs e)
        {

            try
            {
                IEdmVault7 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }

                vault2 = (IEdmVault9)vault1;
                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }


                if ((aFile != null))
                {
                    // Get the selected file's data card
                    aCard = (IEdmCard6)aFolder.GetCard(fileExt);
                    cardID = aFolder.GetCardID(fileExt);

                    aCard.GetSize(out plWidth, out plHeight);
                    str = "File: " + aFile.Name + Constants.vbLf + "Card ID: " + cardID + ", EdmCardType: " + aCard.CardType + ", Width: " + plWidth + ", Height: " + plHeight;
                    MessageBox.Show(str);

                    aPos = aCard.GetFirstControlPosition();
                    while (!(aPos.IsNull))
                    {
                        aControl = (IEdmCardControl6)aCard.GetNextControl(aPos);
                        contType = (int)aControl.ControlType;



                        bool ret = false;
                        string[] variableItemsList = null;
                        if (((contType == 7) | (contType == 8) | (contType == 9) | (contType == 10)))
                        {
                            str = "List values associated with drop-down card control: " + aControl.VariableID.ToString();
                            ret = aControl.GetControlVariableList(aFile.IDout variableItemsList);

                            foreach (string listValue in variableItemsList)
                            {
                                str = str + Constants.vbLf + listValue;
                            }
                            MessageBox.Show(str);
                        }



                        // Get the edit box controls in the card
                        if (contType == 4)
                        {
                            str = "";
                            aControl.GetParentInfo(out plParentCtrlID, out plPageNo);
                            aControl.GetPosition(out plX, out plY, out plWidth, out plHeight);
                            varType = (int)aControl.GetValidation(out poMin, out poMax);

                            str = "Card control: " + aControl.Name;
                            str = str + Constants.vbLf + "Variable ID: " + aControl.VariableID + Constants.vbLf + "EdmCardControlType: " + contType + Constants.vbLf + "Is multi-line? " + aControl.IsMultiLine + Constants.vbLf + "Is read-only? " + aControl.IsReadOnly + Constants.vbLf + "Show in preview? " + aControl.ShowInPreview;
                            str = str + Constants.vbLf + "Location on card: [" + plX + ", " + plY + "], Width: " + plWidth + ", Height: " + plHeight;
                            str = str + Constants.vbLf + "Parent control ID (0, if none): " + plParentCtrlID;
                            str = str + Constants.vbLf + "Tab index: " + plPageNo;
                            str = str + Constants.vbLf + "EdmVariableType: " + varType;

                            str = str + Constants.vbLf + "Updates all configurations? " + aControl.UpdatesAllConfigurations.ToString();



                            MessageBox.Show(str);
                        }
                    }
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }

        }
    }
}

//Form1.Designer.cs

namespace CardControlInfo_CSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.SelectFiles = new System.Windows.Forms.Button();
            this.File1List = new System.Windows.Forms.ListBox();
            this.GetCardControls = new System.Windows.Forms.Button();
            this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
            this.SuspendLayout();
            //
            //VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(36, 24);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = "Select vault view:";
            //
            //VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(39, 40);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            //SelectFiles
            //
            this.SelectFiles.Location = new System.Drawing.Point(39, 85);
            this.SelectFiles.Name = "SelectFiles";
            this.SelectFiles.Size = new System.Drawing.Size(191, 23);
            this.SelectFiles.TabIndex = 2;
            this.SelectFiles.Text = "Select file...";
            this.SelectFiles.UseVisualStyleBackColor = true;
            this.SelectFiles.Click +=new System.EventHandler(SelectFiles_Click);
            //
            //File1List
            //
            this.File1List.FormattingEnabled = true;
            this.File1List.HorizontalScrollbar = true;
            this.File1List.Location = new System.Drawing.Point(40, 114);
            this.File1List.Name = "File1List";
            this.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended;
            this.File1List.Size = new System.Drawing.Size(220, 43);
            this.File1List.TabIndex = 4;
            //
            //GetCardControls
            //
            this.GetCardControls.Location = new System.Drawing.Point(40, 183);
            this.GetCardControls.Name = "GetCardControls";
            this.GetCardControls.Size = new System.Drawing.Size(157, 23);
            this.GetCardControls.TabIndex = 6;
            this.GetCardControls.Text = "Get card  information";
            this.GetCardControls.UseVisualStyleBackColor = true;
            this.GetCardControls.Click += new System.EventHandler(GetCardControls_Click);
            //
            //OpenFileDialog1
            //
            this.OpenFileDialog1.FileName = "OpenFileDialog1";
            this.OpenFileDialog1.Title = "Select File";
            //
            //Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(284, 235);
            this.Controls.Add(this.GetCardControls);
            this.Controls.Add(this.File1List);
            this.Controls.Add(this.SelectFiles);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Card controls";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }
        internal System.Windows.Forms.Label VaultsLabel;
        internal System.Windows.Forms.ComboBox VaultsComboBox;
        internal System.Windows.Forms.Button SelectFiles;
        internal System.Windows.Forms.ListBox File1List;
        internal System.Windows.Forms.Button GetCardControls;
        internal System.Windows.Forms.OpenFileDialog OpenFileDialog1;

        #endregion
    }
}
