Get File's State Transitions Example (VB.NET)
This example shows how to get a file's current and next possible state
transitions.
NOTE: If using the .NET Framework 4.0 primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio 2010.
' a. Click File > New > Project > Visual Basic > Windows Forms Application.
' b. Type StatesVBNET in Name.
' c. Click Browse and navigate to the folder where to create the project.
' d. Click OK.
' e. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' f. Replace the code in Form1.vb with this code.
' g. To create the form, replace the code in Form1.Designer.vb with
' this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add Reference, click
' Assemblies > Framework in the left-side panel, browse to the top folder of
' your SOLIDWORKS PDM Professional installation, locate and click
' EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
' Embed Interop Types to False to handle methods that pass arrays of
' structures.
' 4. Ensure that the vault contains a file in a workflow state.
' 5. Click Debug > Start Debugging or press F5.
'
' Postconditions:

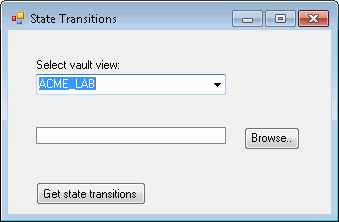

' 1. Displays the State Transitions dialog box.
' 2. Select a vault view.
' 3. Click Browse.
' 4. Displays the Select a file dialog box.
' a. Click a file in the selected vault.
' b. Click Open.
' The selected file's path and file name appear
' in the Select a file dialog box.
' 5. Click Get state transitions.
' 6. Displays a message box showing the name of the selected
' file and its current and next possible state transitions.
' 7. Click OK to close the message box.
' 8. Close the State Transitions dialog box.
'----------------------------------------------------------------------------
'Form1.vb
Imports EPDM.Interop.epdm
Public Class Form1
Private vault1 As IEdmVault5 = Nothing
Dim aFile As IEdmFile5
Private Sub Form1_Load( _
ByVal sender As System.Object, _
ByVal e As System.EventArgs) _
Handles MyBase.Load
Try
Dim vault As IEdmVault8 = New EdmVault5
Dim Views() As EdmViewInfo = Nothing
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = VaultsComboBox.Items(0)
End If
Catch ex As Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + _
ex.ErrorCode.ToString("X") + vbCrLf + _
ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub GetTransitionButton_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles GetTransitionButton.Click
Try
'Only create a new vault object
'if one hasn't been created yet
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
If Not vault1.IsLoggedIn Then
'Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Get the file's current workflow state
Dim workflowState As IEdmState5
workflowState = aFile.CurrentState
'Start an enumeration of the transitions to
'and from the file's current workflow state
Dim pos As IEdmPos5
pos = workflowState.GetFirstTransitionPosition
'Make sure current workflow state
'has a next transition state
'If not, exit application
If pos.IsNull Then
MessageBox.Show("No next possible transition states.")
Exit Sub
End If
Dim transition As IEdmTransition10
'Get the file's next possible transition to or from
'the file's current workflow state
transition = workflowState.GetNextTransition(pos)
Dim message As String = "Current state for " + aFile.Name + ": " + vbLf
message = message + " * " + workflowState.Name + vbLf + vbLf
message = message + "Next possible state transitions for " + aFile.Name + ":" + vbLf
message = message + " * " + transition.Name + vbLf
'message = message + " Requires authentication? " + transition.Authentication.ToString + vbLf
'Iterate through the file's remaining next possible
'transitions to or from the file's current workflow state
While (Not pos.IsNull)
transition = workflowState.GetNextTransition(pos)
message = message + " * " + transition.Name + vbLf
'message = message + " Requires authentication? " + transition.Authentication.ToString + vbLf
End While
'Display a message box showing the file's name and its
'next possible state transitions
MessageBox.Show(message)
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub BrowseButton_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles BrowseButton.Click
Try
'If one hasn't been created yet
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
If Not vault1.IsLoggedIn Then
'Log into selected vault as the current user
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Set the initial directory in the Select a file dialog
OpenFileDialog1.InitialDirectory = vault1.RootFolderPath
'Show the Select a file dialog
Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
DialogResult = OpenFileDialog1.ShowDialog()
If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
'Do nothing
Else
'Browse for a file whose next possible state
'transitions to get
Dim fileName As String = OpenFileDialog1.FileName
FileListBox.Items.Add(fileName)
aFile = vault1.GetFileFromPath(fileName)
End If
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
End Class
Back to top
'Form1.Designer.vb
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
Inherits System.Windows.Forms.Form
'Form overrides dispose to clean up the component list.
<System.Diagnostics.DebuggerNonUserCode()> _
Protected Overrides Sub Dispose(ByVal disposing As Boolean)
Try
If disposing AndAlso components IsNot Nothing Then
components.Dispose()
End If
Finally
MyBase.Dispose(disposing)
End Try
End Sub
'Required by the Windows Form Designer
Private components As System.ComponentModel.IContainer
'NOTE: The following procedure is required by the Windows Form Designer
'It can be modified using the Windows Form Designer.
'Do not modify it using the code editor.
<System.Diagnostics.DebuggerStepThrough()> _
Private Sub InitializeComponent()
Me.VaultsLabel = New System.Windows.Forms.Label()
Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
Me.FileListBox = New System.Windows.Forms.ListBox()
Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
Me.BrowseButton = New System.Windows.Forms.Button()
Me.GetTransitionButton = New System.Windows.Forms.Button()
Me.SuspendLayout()
'
'VaultsLabel
'
Me.VaultsLabel.AutoSize = True
Me.VaultsLabel.ImageAlign = System.Drawing.ContentAlignment.MiddleLeft
Me.VaultsLabel.Location = New System.Drawing.Point(25, 28)
Me.VaultsLabel.Name = "VaultsLabel"
Me.VaultsLabel.Size = New System.Drawing.Size(91, 13)
Me.VaultsLabel.TabIndex = 0
Me.VaultsLabel.Text = "Select vault view:"
'
'VaultsComboBox
'
Me.VaultsComboBox.FormattingEnabled = True
Me.VaultsComboBox.Location = New System.Drawing.Point(28, 44)
Me.VaultsComboBox.Name = "VaultsComboBox"
Me.VaultsComboBox.Size = New System.Drawing.Size(190, 21)
Me.VaultsComboBox.TabIndex = 1
'
'FileListBox
'
Me.FileListBox.FormattingEnabled = True
Me.FileListBox.Location = New System.Drawing.Point(28, 97)
Me.FileListBox.Name = "FileListBox"
Me.FileListBox.Size = New System.Drawing.Size(190, 17)
Me.FileListBox.TabIndex = 3
'
'OpenFileDialog1
'
Me.OpenFileDialog1.FileName = "OpenFileDialog1"
Me.OpenFileDialog1.Multiselect = True
Me.OpenFileDialog1.Title = "Select a file"
'
'BrowseButton
'
Me.BrowseButton.Location = New System.Drawing.Point(236, 97)
Me.BrowseButton.Name = "BrowseButton"
Me.BrowseButton.Size = New System.Drawing.Size(56, 23)
Me.BrowseButton.TabIndex = 4
Me.BrowseButton.Text = "Browse..."
Me.BrowseButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft
Me.BrowseButton.UseVisualStyleBackColor = True
'
'GetTransitionButton
'
Me.GetTransitionButton.ImageAlign = System.Drawing.ContentAlignment.MiddleLeft
Me.GetTransitionButton.Location = New System.Drawing.Point(28, 152)
Me.GetTransitionButton.Name = "GetTransitionButton"
Me.GetTransitionButton.Size = New System.Drawing.Size(201, 23)
Me.GetTransitionButton.TabIndex = 5
Me.GetTransitionButton.Text = "Get next possible state transitions"
Me.GetTransitionButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft
Me.GetTransitionButton.UseVisualStyleBackColor = True
'
'Form1
'
Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
Me.ClientSize = New System.Drawing.Size(323, 184)
Me.Controls.Add(Me.GetTransitionButton)
Me.Controls.Add(Me.BrowseButton)
Me.Controls.Add(Me.FileListBox)
Me.Controls.Add(Me.VaultsComboBox)
Me.Controls.Add(Me.VaultsLabel)
Me.Name = "Form1"
Me.Text = "Workflow State Transitions"
Me.ResumeLayout(False)
Me.PerformLayout()
End Sub
Friend WithEvents VaultsLabel As System.Windows.Forms.Label
Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
Friend WithEvents FileListBox As System.Windows.Forms.ListBox
Friend WithEvents BrowseButton As System.Windows.Forms.Button
Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog
Friend WithEvents GetTransitionButton As System.Windows.Forms.Button
End Class
