Get and Set Item References Example (C#)

This example shows how to get and set item references.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio 2010.
//    a. Click File > New > Project > Visual C# > Windows Forms Application.
//    b. Type ItemRefs_CSharp in Name.
//    c. Click Browse and navigate to the folder where to create
//       the project.
//    d. Click OK
//    e. Click Show All Files in the Solution Explorer toolbar and expand
//       Form1.cs in the Solution Explorer.
//    f. Replace the code in Form1.cs with this code.
//    g. To create the form, replace the code in Form1.Designer.cs with this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//    name in the Solution Explorer, click Add Reference, click
//    Assemblies > Framework in the left-side panel, browse to the top folder of
//    your SOLIDWORKS PDM Professional installation, locate and click
//    EPDM.Interop.epdm.dll, click Open, and click Add).
// 3. Add Microsoft.VisualBasic as a reference (click COM in the left-side panel,
//    click Microsoft.VisualBasic, click Add, and click Close).

// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
//    Embed Interop Types to False to handle methods that pass arrays of
//    structures.
// 5. Ensure that an item folder with at least one item is checked into the vault.

// 6. Click Debug > Start Debugging or press F5.
//
// Postconditions:

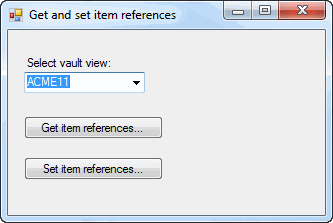

// 1. Displays the Get and set item references dialog box.
// 2. Select a vault view.
// 3. Click Get item references
//    a. Click an item folder in the vault.
//    b. Click OK.
//    c. Displays a message box confirming your folder selection.
//    d. Click OK.
//    e. Displays a message box with item references for the first item found
//       in the selected folder.
//    f. Click OK.
// 4. Click Set item references.
//    a. Click one or more files to add as references to the item.
//    b. Click Open.
//    c. Displays a message box with the updated references.
//       - or -
//       Displays a message box with errors.
//    d. Click OK.

// 5. Close the Get and set item references dialog box.

//----------------------------------------------------------------------------

//Form1.cs


using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;

namespace ItemRefs_CSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        private IEdmVault5 vault1 = null;
        IEdmItem item;

        IEdmFile8 fileInt;

        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                IEdmVault5 vault1 = new EdmVault5();
                IEdmVault8 vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }

                Button1.Enabled = false;

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }


        public void GetItemRefs_Click(System.Object sender, System.EventArgs e)
        {

            try
            {
                IEdmVault11 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault11)vault1;
                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                IEdmFolder6 folder = default(IEdmFolder6);
                folder = (IEdmFolder6)vault2.BrowseForFolder2(this.Handle.ToInt32(), "Select a folder", vault2.RootFolder, (int)EdmBrowseForFolderFlag.EdmBwsFld_None);
                if ((folder != null))
                {
                    if (folder.ObjectType == EdmObjectType.EdmObject_Folder)
                    {
                        Interaction.MsgBox("You selected the file folder: " + Constants.vbLf + folder.LocalPath);
                    }
                    else
                    {
                        Interaction.MsgBox("You selected the item folder: " + Constants.vbLf + folder.LocalPath);
                    }
                }

                //Get the first item in the selected folder
                IEdmPos5 pos = default(IEdmPos5);
                string msg = null;

                pos = folder.GetFirstFilePosition();
                fileInt = (IEdmFile8)folder.GetNextFile(pos);

                //Search for item by name to get its ID
                IEdmSearch7 search = default(IEdmSearch7);
                search = (IEdmSearch7)vault2.CreateUtility(EdmUtility.EdmUtil_Search);
                search.FindFiles = true;
                search.FindFolders = false;
                search.Recursive = true;
                search.SetToken(EdmSearchToken.Edmstok_FindItems, true);
                search.StartFolderID = vault2.ItemRootFolderID;
                search.FileName = fileInt.Name;

                IEdmSearchResult5 result = default(IEdmSearchResult5);
                result = search.GetFirstResult();

                if (result == null)
                {
                    Interaction.MsgBox("The item '" + fileInt.Name + "' was not found.");
                }

                while ((result != null))
                {
                    if ((result.IsKindOf(EdmObjectType.EdmObject_Item)))
                    {
                        fileInt = (IEdmFile8)result;
                        item = (IEdmItem)fileInt;

                        //Create a message about the item and its references
                        msg = "Name=" + item.Name + Constants.vbLf;
                        msg = msg + "ID = " + item.ID.ToString() + Constants.vbLf;
                        msg = msg + "Descriptive name = " + item.ItemDescriptiveName + Constants.vbLf;
                        msg = msg + "Check-out path = " + fileInt.LockPath + Constants.vbLf;
                        msg = msg + "Workflow state = " + fileInt.CurrentState.Name + Constants.vbLf;
                        msg = msg + Constants.vbLf + "Referenced files:" + Constants.vbLf;

                        EdmItemRef[] refs = null;
                        item.GetReferences((int)EdmRefFlags.EdmRef_Dynamic + (int)EdmRefFlags.EdmRef_Static + (int)EdmRefFlags.EdmRef_Item + (int)EdmRefFlags.EdmRef_File, out refs);

                        int idx = 0;
                        idx = Information.LBound(refs);


                        while ((idx <= Information.UBound(refs)))
                        {
                            msg = msg + "File ID=(" + Convert.ToString(refs[idx].moNamePathOrID) + ") ";
                            msg = msg + "Parent Item ID=(" + Convert.ToString(refs[idx].moParentNamePathOrItemID) + ") ";
                            msg = msg + "Configuration='" + refs[idx].mbsConfiguration + "' ";

                            if ((refs[idx].mlEdmRefFlags & (int)EdmRefFlags.EdmRef_Dynamic) == (int)EdmRefFlags.EdmRef_Dynamic)
                            {
                                msg = msg + " (auto-update reference)";
                            }
                            else
                            {
                                if ((refs[idx].mlEdmRefFlags & (int)EdmRefFlags.EdmRef_Static) == (int)EdmRefFlags.EdmRef_Static)
                                {
                                    msg = msg + " (static reference)";
                                }
                            }
                            idx = idx + 1;
                            msg = msg + Constants.vbLf;
                        }

                        MessageBox.Show(msg);
                        Button1.Enabled = true;

                    }
                    return;
                }

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }


        private void Button1_Click(System.Object sender, System.EventArgs e)
        {
            //Set item references

            try
            {
                IEdmVault11 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault11)vault1;
                if (!vault1.IsLoggedIn)
                {
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Get the current item references
                EdmItemRef[] oldRefs = null;
                item.GetReferences((int)EdmRefFlags.EdmRef_Dynamic + (int)EdmRefFlags.EdmRef_Static + (int)EdmRefFlags.EdmRef_Item + (int)EdmRefFlags.EdmRef_File, out oldRefs);

                //Let the user browse for new file references
                IEdmStrLst5 pathList = vault2.BrowseForFile(this.Handle.ToInt32(), (int)EdmBrowseFlag.EdmBws_ForOpen + (int)EdmBrowseFlag.EdmBws_PermitVaultFiles + (int)EdmBrowseFlag.EdmBws_PermitMultipleSel, "All Files|*.*||");

                if (pathList == null)
                    return;

                //Create an array of new item references
                EdmItemRef[] newRefs = new EdmItemRef[pathList.Count];
                int idx = 0;
                IEdmPos5 pos = default(IEdmPos5);
                pos = pathList.GetHeadPosition();

                while (!pos.IsNull)
                {
                    string path = null;
                    path = pathList.GetNext(pos);
                    newRefs[idx].moNamePathOrID = path;
                    newRefs[idx].mlEdmRefFlags = (int)EdmRefFlags.EdmRef_Static + (int)EdmRefFlags.EdmRef_File;
                    newRefs[idx].moParentNamePathOrItemID = item.ID;
                    idx = idx + 1;
                }

                //Check out the item
                fileInt.LockFile(vault2.ItemRootFolderIDthis.Handle.ToInt32());

                //Update the item references
                item.UpdateReferences(newRefs, oldRefs);

                //Collect all errors
                string msg = "";
                string errstr = "";
                idx = Information.LBound(newRefs);

                while ((idx <= Information.UBound(newRefs)))
                {
                    if (newRefs[idx].mhResult != 0)
                    {
                        errstr = vault2.GetErrorName(newRefs[idx].mhResult);
                        msg = msg + "Failed to save ref: '" + Convert.ToString(newRefs[idx].moNamePathOrID) + "' (" + errstr + ")" + Constants.vbLf;
                    }
                    idx = idx + 1;
                }

                idx = Information.LBound(oldRefs);

                while ((idx <= Information.UBound(oldRefs)))
                {
                    if (oldRefs[idx].mhResult != 0)
                    {
                        errstr = vault2.GetErrorName(oldRefs[idx].mhResult);
                        msg = msg + "Failed to delete ref: '" + Convert.ToString(oldRefs[idx].moNamePathOrID) + "' (" + errstr + ")" + Constants.vbLf;
                    }
                    idx = idx + 1;
                }

                //Display a status message
                if (string.IsNullOrEmpty(msg))
                {
                    msg = "Updated references successfully!" + Constants.vbLf;

                    EdmItemRef[] refs = null;
                    item.GetReferences((int)EdmRefFlags.EdmRef_Dynamic + (int)EdmRefFlags.EdmRef_Static + (int)EdmRefFlags.EdmRef_Item + (int)EdmRefFlags.EdmRef_File, out refs);
                    idx = Information.LBound(refs);

                    //Construct a message about the reference updates

                    while ((idx <= Information.UBound(refs)))
                    {
                        msg = msg + "File ID=(" + Convert.ToString(refs[idx].moNamePathOrID) + ") ";
                        msg = msg + "Parent Item ID=(" + Convert.ToString(refs[idx].moParentNamePathOrItemID) + ") ";
                        msg = msg + "Configuration='" + refs[idx].mbsConfiguration + "' ";

                        if ((refs[idx].mlEdmRefFlags & (int)EdmRefFlags.EdmRef_Dynamic) == (int)EdmRefFlags.EdmRef_Dynamic)
                        {
                            msg = msg + " (auto-update reference)";
                        }
                        else
                        {
                            if ((refs[idx].mlEdmRefFlags & (int)EdmRefFlags.EdmRef_Static) == (int)EdmRefFlags.EdmRef_Static)
                            {
                                msg = msg + " (static reference)";
                            }
                        }
                        idx = idx + 1;
                        msg = msg + Constants.vbLf;
                    }

                    MessageBox.Show(msg);
                }
                else
                {
                    MessageBox.Show("Errors detected: " + Constants.vbLf + msg);
                }

                //Check in the item
                fileInt.UnlockFile(this.Handle.ToInt32(), "Updated item references", (int)EdmUnlockFlag.EdmUnlock_IgnoreRefsNotLockedByCaller);

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }
    }
}



Back to top

//Form1.Designer.cs

namespace ItemRefs_CSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.GetItemRefs = new System.Windows.Forms.Button();
            this.OpenFileDialog = new System.Windows.Forms.OpenFileDialog();
            this.Button1 = new System.Windows.Forms.Button();
            this.SuspendLayout();
            //
            //VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(13, 26);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(94, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = " Select vault view:";
            //
            //VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(16, 42);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            //GetItemRefs
            //
            this.GetItemRefs.Location = new System.Drawing.Point(16, 86);
            this.GetItemRefs.Name = "GetItemRefs";
            this.GetItemRefs.Size = new System.Drawing.Size(139, 23);
            this.GetItemRefs.TabIndex = 5;
            this.GetItemRefs.Text = "Get item references...";
            this.GetItemRefs.UseVisualStyleBackColor = true;
            this.GetItemRefs.Click +=new System.EventHandler(GetItemRefs_Click);
            //
            //OpenFileDialog
            //
            this.OpenFileDialog.Title = "Open";
            //
            //Button1
            //
            this.Button1.Location = new System.Drawing.Point(16, 127);
            this.Button1.Name = "Button1";
            this.Button1.Size = new System.Drawing.Size(139, 23);
            this.Button1.TabIndex = 6;
            this.Button1.Text = "Set item references...";
            this.Button1.UseVisualStyleBackColor = true;
            this.Button1.Click +=new System.EventHandler(Button1_Click);
            //
            //Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(317, 185);
            this.Controls.Add(this.Button1);
            this.Controls.Add(this.GetItemRefs);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Get and set item references";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        internal System.Windows.Forms.Label VaultsLabel;
        internal System.Windows.Forms.ComboBox VaultsComboBox;
        internal System.Windows.Forms.Button GetItemRefs;
        internal System.Windows.Forms.OpenFileDialog OpenFileDialog;
        internal System.Windows.Forms.Button Button1;
    }
}





Back to top



Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Get and Set Item References Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2018 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
