Roll Back Revisions Example (VB.NET)

This example shows how to roll back a checked-in file to its first revision in the current version.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

' Preconditions:
' 1. Start Microsoft Visual Studio 2015.
'    a. Click File > New > Project > Visual Basic > Windows Forms Application.
'    b. Type RevisionVBNET in Name.
'    c. Click Browse and navigate to the folder where to create the project.
'    d. Click OK
'    e. Click Show All Files in the Solution Explorer toolbar and expand
'       Form1.vb in the Solution Explorer.
'    f. Replace the code in Form1.vb with this code.
'    g. To create the form, replace the code in Form1.Designer.vb with
'       this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
'    name in the Solution Explorer, click Add > Reference, click
'    Assemblies > Framework in the left-side panel, browse to the top folder of
'    your SOLIDWORKS PDM Professional installation, locate and click
'    EPDM.Interop.epdm.dll > AddOK).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
'    Embed Interop Types to False to handle methods that pass arrays of
'    structures.
' 4. To find a file with a revision scheme:
'    a. Open a vault view in Windows Explorer.
'    b. Click a checked-in file.
'    c. Click Display > History.
'    d. Examine the Event column. If Revision is:
'       * listed in the Event column, then the file
'         has a revision scheme. Scroll down and examine the
'         Event and Version columns to verify that at least three
'         revisions exist for the current version of the file.
'       * not listed in the Event column, then
'         repeat steps 4b - 4d until you find a file with
'         a revision scheme.
' 5. Click Debug > Start Debugging or press F5.
' Postconditions:

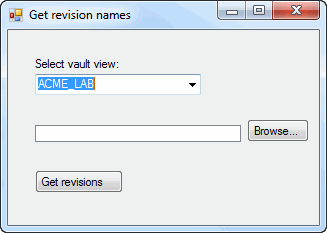

' 1. Displays the Get revision names dialog box.
' 2. Select a vault view.
' 3. Click Browse.
' 4. Displays the Select a file dialog box.
'    a. Click the file identified in Preconditions step 4 in the
'       selected vault.
'    b. Click Open to display the selected file's path and file
'       name in the Get revision names dialog box.
' 5. Click Get revisions.
' 6. Displays a message box listing the names of the revisions
'    for the selected file. Click OK to close the message box.
' 7. Displays a message box showing the revision to which the file
'    was rolled back and the current version. Click OK to close the
'    message box.
' 8. Close the Get revision names dialog box.
' 9. Click the file in the vault in Windows Explorer for which revisions
'    were rolled back.
'    a. Click Display > History.
'    b. Scroll down and examine the Event, Version, and Comment columns.
Imports EPDM.Interop.epdm
Public Class Form1
    Private vault1 As IEdmVault5 = Nothing
    Dim aFile As IEdmFile5
    Dim folder As IEdmFolder5
    Private Sub Form1_Load( _
      ByVal sender As System.Object, _
      ByVal e As System.EventArgs) _
      Handles MyBase.Load
            Dim vault As IEdmVault8 = New EdmVault5
            Dim Views() As EdmViewInfo = Nothing
            vault.GetVaultViews(Views, False)
            For Each View As EdmViewInfo In Views
            If VaultsComboBox.Items.Count > 0 Then
                VaultsComboBox.Text = VaultsComboBox.Items(0)
            End If
        Catch ex As Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + _
              ex.ErrorCode.ToString("X") + vbCrLf + _
        Catch ex As Exception
        End Try
    End Sub
    Public Sub RevisionButton_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles RevisionButton.Click
            'Only create a new vault object
            'if one hasn't been created yet
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            If Not vault1.IsLoggedIn Then
                'Log into selected vault as the current user
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If
            'Get the local version number
            Dim version As Integer
            version = aFile.GetLocalVersionNo(folder.ID)
            If version < 1 Then
                MsgBox("A local copy of " + aFile.Name + " does not exist.")
                Exit Sub
            End If
            'Get the version interface
            Dim verEnum As IEdmEnumeratorVersion7
            verEnum = aFile
            Dim ver As IEdmVersion8
            Dim rev As IEdmRevision7
	    Dim verNbr As Integer

            ver = verEnum.GetVersion(version)
            'Enumerate the revisions
            Dim message As String
            Dim pos As IEdmPos5
            pos = ver.GetFirstRevisionPosition
            If Not pos.IsNull Then
                message = "The following revisions are set on " + aFile.Name + ": " + vbLf
                While Not pos.IsNull
                    rev = ver.GetNextRevision(pos)
                    message = message + "    " + rev.Name + vbLf
		    verNbr = rev.VersionNo
                End While
                message = "A revision scheme is not defined for " + aFile.Name + "." + vbLf
                Exit Sub
            End If

	   'Roll back to first revision
           pos = ver.GetFirstRevisionPosition()
	   rev = ver.GetNextRevision(pos)
	   ver = verEnum.GetVersion(version)
	   message = ("Roll back to revision " + rev.Name + " of version " + verNbr.ToString)
           rev.Rollback3(message, True)
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
        End Try
    End Sub
    Public Sub BrowseButton_Click(ByVal sender As System.ObjectByVal e As System.EventArgsHandles BrowseButton.Click
            'If one hasn't been created yet
            If vault1 Is Nothing Then
                vault1 = New EdmVault5()
            End If
            If Not vault1.IsLoggedIn Then
                'Log into selected vault as the current user
                vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
            End If
            'Set the initial directory in the Select a file dialog
            OpenFileDialog1.InitialDirectory = vault1.RootFolderPath
            'Show the Select a file dialog
            Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
            DialogResult = OpenFileDialog1.ShowDialog()
            If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
                'Do nothing
                'Browse for a local file whose revisions you want to see
                Dim fileName As String = OpenFileDialog1.FileName
                aFile = vault1.GetFileFromPath(fileName, folder)
            End If
        Catch ex As System.Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
        Catch ex As Exception
        End Try
    End Sub
End Class
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class Form1
    Inherits System.Windows.Forms.Form
    'Form overrides dispose to clean up the component list.
    <System.Diagnostics.DebuggerNonUserCode()> _
    Protected Overrides Sub Dispose(ByVal disposing As Boolean)
            If disposing AndAlso components IsNot Nothing Then
            End If
        End Try
    End Sub
    'Required by the Windows Form Designer
    Private components As System.ComponentModel.IContainer
    'NOTE: The following procedure is required by the Windows Form Designer
    'It can be modified using the Windows Form Designer.
    'Do not modify it using the code editor.
    <System.Diagnostics.DebuggerStepThrough()> _
    Private Sub InitializeComponent()
        Me.VaultsLabel = New System.Windows.Forms.Label()
        Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
        Me.FileListBox = New System.Windows.Forms.ListBox()
        Me.BrowseButton = New System.Windows.Forms.Button()
        Me.RevisionButton = New System.Windows.Forms.Button()
        Me.OpenFileDialog1 = New System.Windows.Forms.OpenFileDialog()
        Me.VaultsLabel.AutoSize = True
        Me.VaultsLabel.Location = New System.Drawing.Point(24, 27)
        Me.VaultsLabel.Name = "VaultsLabel"
        Me.VaultsLabel.Size = New System.Drawing.Size(91, 13)
        Me.VaultsLabel.TabIndex = 0
        Me.VaultsLabel.Text = "Select vault view:"
        Me.VaultsComboBox.FormattingEnabled = True
        Me.VaultsComboBox.Location = New System.Drawing.Point(27, 44)
        Me.VaultsComboBox.Name = "VaultsComboBox"
        Me.VaultsComboBox.Size = New System.Drawing.Size(166, 21)
        Me.VaultsComboBox.TabIndex = 1
        Me.OpenFileDialog1.FileName = "OpenFileDialog1"
        Me.OpenFileDialog1.Multiselect = True
        Me.OpenFileDialog1.Title = "Select a file"
        Me.FileListBox.FormattingEnabled = True
        Me.FileListBox.Location = New System.Drawing.Point(27, 95)
        Me.FileListBox.Name = "FileListBox"
        Me.FileListBox.Size = New System.Drawing.Size(206, 17)
        Me.FileListBox.TabIndex = 2
        Me.BrowseButton.Location = New System.Drawing.Point(239, 89)
        Me.BrowseButton.Name = "BrowseButton"
        Me.BrowseButton.Size = New System.Drawing.Size(62, 23)
        Me.BrowseButton.TabIndex = 3
        Me.BrowseButton.Text = "Browse..."
        Me.BrowseButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft
        Me.BrowseButton.UseVisualStyleBackColor = True
        Me.RevisionButton.Location = New System.Drawing.Point(27, 140)
        Me.RevisionButton.Name = "RevisionButton"
        Me.RevisionButton.Size = New System.Drawing.Size(88, 23)
        Me.RevisionButton.TabIndex = 4
        Me.RevisionButton.Text = "Get revisions"
        Me.RevisionButton.TextAlign = System.Drawing.ContentAlignment.MiddleLeft
        Me.RevisionButton.UseVisualStyleBackColor = True
        Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
        Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
        Me.ClientSize = New System.Drawing.Size(311, 195)
        Me.Name = "Form1"
        Me.Text = "Get revision names"
    End Sub
    Friend WithEvents VaultsLabel As System.Windows.Forms.Label
    Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
    Friend WithEvents FileListBox As System.Windows.Forms.ListBox
    Friend WithEvents BrowseButton As System.Windows.Forms.Button
    Friend WithEvents RevisionButton As System.Windows.Forms.Button
    Friend WithEvents OpenFileDialog1 As System.Windows.Forms.OpenFileDialog
End Class
