Traverse Folders and Files in Vault Example (C#)

This example shows how to recursively traverse all of the folders and files in a vault.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
//  1. Start Microsoft Visual Studio 2010 or later.
//  2. Click File > New > Project > Visual C# > Windows Forms Application.
//  3. Type TraverseFilesFoldersCSharp in Name.
//  4. Click Browse and navigate to the folder where to create the project.
//  5. Click OK
//  6. Replace the code in Form1.cs with this code.
//  7. Replace the code in Form1.Designer.cs with this code.
//  8. If using Microsoft Visual Studio 2012 and .NET Framework 4.5, ensure
//     that the Prefer 32-bit check box is cleared (right-click the project
//     name in the Solution Explorer and click Properties. On the Build tab,
//     if Platform target is set to Any CPU, ensure that Prefer 32-bit is cleared.)

//  9. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Reference, click Browse
//     navigate to the top folder of your SOLIDWORKS PDM Professional installation,
//     locate and select EPDM.Interop.epdm.dll).

// 10. Right-click EPDM.Interop.epdm in References, click Properties, and set
//     Embed Interop Types to False to handle methods that pass arrays of
//     structures.
// 11. Ensure that the vault contains one or more checked-out files.
// 12. Click Debug > Start Debugging or press F5.
//
// Postconditions:

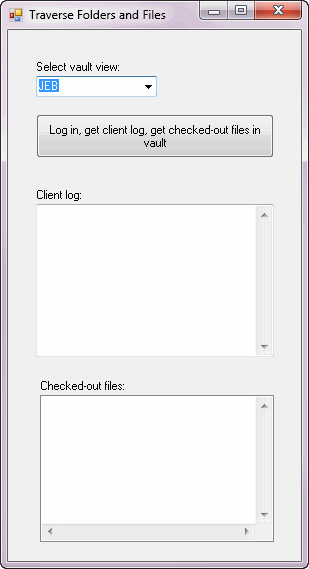

// 1. Displays a Traverse Folders and Files dialog.
// 2. Select a vault.
// 3. Click Log in, get client log, get checked-out files in vault.
// 4. Displays a message box with the vault type.
// 5. Click OK.
// 6. Populates Client log and Checked-out files.

// 7. Close the dialog.
//----------------------------------------------------------------------------

//Form1.cs


using System;
using System.Diagnostics;
using System.Windows.Forms;
using System.Runtime.InteropServices;
using EPDM.Interop.epdm;

namespace TraverseFilesAndFoldersCSharp
{
    public partial class Form1 : Form
    {
        IEdmVault17 vault;
        public Form1()
        {
            InitializeComponent();
        }

        void TraverseFilesAndFolders_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                //Declare and create an instance of IEdmVault5
                IEdmVault5 vault1 = new EdmVault5();

                //Cast IEdmVault5 to IEdmVault8
                vault = (IEdmVault17)vault1;

                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void TraverseFoldersButton_Click(System.Object sender, System.EventArgs e)
        {
            try
            {


                //Log into selected vault as the current user
                vault.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());

                MessageBox.Show(vault.GetVaultType().ToString(), "Vault type");

                String log;
                vault.GetClientLog(out log);
                textBox1.Text = log;

                TraverseFolder(vault.RootFolder);

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void TraverseFolder(IEdmFolder5 CurFolder)
        {
            try
            {
                //Enumerate the files in the folder
                IEdmPos5 FilePos = default(IEdmPos5);
                FilePos = CurFolder.GetFirstFilePosition();
                IEdmFile5 file = default(IEdmFile5);
                while (!FilePos.IsNull)
                {
                    file = CurFolder.GetNextFile(FilePos);
                    //Get its checked out status
                    if (file.IsLocked)
                    {
                        listBox1.Items.Add(file.LockPath);
                    }
                }

                //Enumerate the sub-folders in the folder
                IEdmPos5 FolderPos = default(IEdmPos5);
                FolderPos = CurFolder.GetFirstSubFolderPosition();
                while (!FolderPos.IsNull)
                {
                    IEdmFolder5 SubFolder = default(IEdmFolder5);
                    SubFolder = CurFolder.GetNextSubFolder(FolderPos);
                    TraverseFolder(SubFolder);
                }

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }
    }
}

//Form1.Designer.cs

namespace TraverseFilesAndFoldersCSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.TraverseFoldersButton = new System.Windows.Forms.Button();
            this.label1 = new System.Windows.Forms.Label();
            this.label2 = new System.Windows.Forms.Label();
            this.listBox1 = new System.Windows.Forms.ListBox();
            this.textBox1 = new System.Windows.Forms.TextBox();
            this.SuspendLayout();
            //
            // VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(25, 30);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = "Select vault view:";
            //
            // VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(28, 46);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            // TraverseFoldersButton
            //
            this.TraverseFoldersButton.Location = new System.Drawing.Point(28, 84);
            this.TraverseFoldersButton.Name = "TraverseFoldersButton";
            this.TraverseFoldersButton.Size = new System.Drawing.Size(238, 44);
            this.TraverseFoldersButton.TabIndex = 2;
            this.TraverseFoldersButton.Text = "Log in, get client log, get checked-out files in vault";
            this.TraverseFoldersButton.UseVisualStyleBackColor = true;
            this.TraverseFoldersButton.Click += new System.EventHandler(this.TraverseFoldersButton_Click);
            //
            // label1
            //
            this.label1.AutoSize = true;
            this.label1.Location = new System.Drawing.Point(25, 158);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(53, 13);
            this.label1.TabIndex = 3;
            this.label1.Text = "Client log:";
            //
            // label2
            //
            this.label2.AutoSize = true;
            this.label2.Location = new System.Drawing.Point(29, 349);
            this.label2.Name = "label2";
            this.label2.Size = new System.Drawing.Size(92, 13);
            this.label2.TabIndex = 4;
            this.label2.Text = "Checked-out files:";
            //
            // listBox1
            //
            this.listBox1.FormattingEnabled = true;
            this.listBox1.HorizontalScrollbar = true;
            this.listBox1.Location = new System.Drawing.Point(32, 365);
            this.listBox1.Name = "listBox1";
            this.listBox1.ScrollAlwaysVisible = true;
            this.listBox1.Size = new System.Drawing.Size(234, 147);
            this.listBox1.TabIndex = 5;
            //
            // textBox1
            //
            this.textBox1.Location = new System.Drawing.Point(28, 174);
            this.textBox1.Multiline = true;
            this.textBox1.Name = "textBox1";
            this.textBox1.ScrollBars = System.Windows.Forms.ScrollBars.Both;
            this.textBox1.Size = new System.Drawing.Size(238, 153);
            this.textBox1.TabIndex = 6;
            //
            // Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(293, 531);
            this.Controls.Add(this.textBox1);
            this.Controls.Add(this.listBox1);
            this.Controls.Add(this.label2);
            this.Controls.Add(this.label1);
            this.Controls.Add(this.TraverseFoldersButton);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Traverse Folders and Files";
            this.Load += new System.EventHandler(this.TraverseFilesAndFolders_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        private System.Windows.Forms.Label VaultsLabel;
        private System.Windows.Forms.ComboBox VaultsComboBox;
        private System.Windows.Forms.Button TraverseFoldersButton;
        private System.Windows.Forms.Label label1;
        private System.Windows.Forms.Label label2;
        private System.Windows.Forms.ListBox listBox1;
        private System.Windows.Forms.TextBox textBox1;
    }
}
