Traverse Files and Folders in Vault Example (VB.NET)

This example shows how to recursively traverse all of the folders and files in a vault.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

'----------------------------------------------------------------------------
' Preconditions:
'  1. Start Microsoft Visual Studio 2010 or later.
'  2. Click File > New > Project > Visual Basic > Windows Forms Application.
'  3. Type TraverseFilesFolders in Name.
'  4. Click Browse and navigate to the folder where to create the project.
'  5. Click OK
'  6. Replace the code in Form1.vb with this code.
'  7. Replace the code in Form1.Designer.vb with this code.
'  8. If using Microsoft Visual Studio 2012 and .NET Framework 4.5, ensure
'     that the Prefer 32-bit check box is cleared (right-click the project
'     name in the Solution Explorer and click Properties. On the Compile tab,
'     if Target CPU is set to AnyCPU, ensure that Prefer 32-bit is cleared.)

'  9. Add EPDM.Interop.epdm.dll as a reference (right-click the project
'     name in the Solution Explorer, click Add Reference, click Browse
'     navigate to the top folder of your SOLIDWORKS PDM Professional installation,
'     locate and select EPDM.Interop.epdm.dll).

' 10. Right-click EPDM.Interop.epdm in References, click Properties, and set
'     Embed Interop Types to False to handle methods that pass arrays of
'     structures.
' 11. Ensure that the vault contains one or more checked-out files.
' 12. Click Debug > Start Debugging or press F5.
'
' Postconditions:

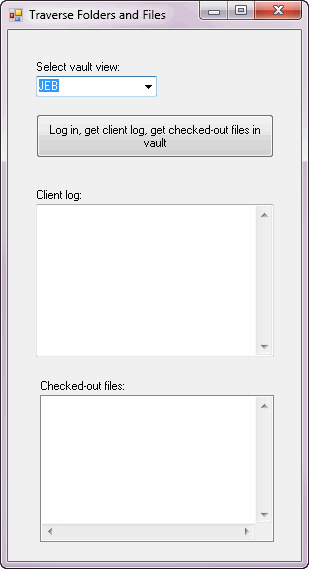

' 1. Displays a Traverse Folders and Files dialog.
' 2. Select a vault.
' 3. Click Log in, get client log, get checked-out files in vault.
' 4. Displays a message box with the vault type.
' 5. Click OK.
' 6. Populates Client log and Checked-out files.

' 7. Close the dialog.
'----------------------------------------------------------------------------



'Form1.vb



Imports EPDM.Interop.epdm


Public Class TraverseFilesFolders

    Dim vault As IEdmVault17
    Public Sub TraverseFilesFolders_Load(
ByVal sender As System.Object,
ByVal e As System.EventArgs) _
      Handles MyBase.Load

        Try

            Dim Views() As EdmViewInfo = Nothing
            Dim vault5 As IEdmVault5 = New EdmVault5()
            vault = DirectCast(vault5, IEdmVault17)


            vault.GetVaultViews(Views, False)
            VaultsComboBox.Items.Clear()
            For Each View As EdmViewInfo In Views
                VaultsComboBox.Items.Add(View.mbsVaultName)
            Next
            If VaultsComboBox.Items.Count > 0 Then
                VaultsComboBox.Text = VaultsComboBox.Items(0)
            End If

        Catch ex As Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" +
ex.ErrorCode.ToString("X") + vbCrLf +
ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub TraverseFoldersButton_Click(
ByVal sender As System.Object,
ByVal e As System.EventArgs) _
      Handles TraverseFoldersButton.Click

        Try

            'Log into selected vault as the current user
            vault.LoginAuto(VaultsComboBox.Text,
Me.Handle.ToInt32())

            MessageBox.Show(vault.GetVaultType().ToString(), "Vault type")

            Dim log As String = Nothing
            vault.GetClientLog(log)
            TextBox1.Text = log

            TraverseFolder(vault.RootFolder)

        Catch ex As Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" +
ex.ErrorCode.ToString("X") + vbCrLf +
ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub

    Public Sub TraverseFolder(
ByVal CurFolder As IEdmFolder5)

        Try

            'Enumerate the files in the folder
            Dim FilePos As IEdmPos5
            FilePos = CurFolder.GetFirstFilePosition
            Dim file As IEdmFile5
            While Not FilePos.IsNull
                file = CurFolder.GetNextFile(FilePos)
                'Get its checked out status
                If file.IsLocked Then
                    ListBox2.Items.Add(file.LockPath)
                End If
            End While

            'Enumerate the subfolders in the folder
            Dim FolderPos As IEdmPos5
            FolderPos = CurFolder.GetFirstSubFolderPosition
            While Not FolderPos.IsNull
                Dim SubFolder As IEdmFolder5
                SubFolder = CurFolder.GetNextSubFolder _
                  (FolderPos)
                TraverseFolder(SubFolder)
            End While


        Catch ex As Runtime.InteropServices.COMException
            MessageBox.Show("HRESULT = 0x" +
ex.ErrorCode.ToString("X") + vbCrLf +
ex.Message)
        Catch ex As Exception
            MessageBox.Show(ex.Message)
        End Try
    End Sub


End Class

'Form1.Designer.vb

<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()> _
Partial Class TraverseFilesFolders
    Inherits System.Windows.Forms.Form

    'Form overrides dispose to clean up the component list.
    <System.Diagnostics.DebuggerNonUserCode()> _
    Protected Overrides Sub Dispose(ByVal disposing As Boolean)
        Try
            If disposing AndAlso components IsNot Nothing Then
                components.Dispose()
            End If
        Finally
            MyBase.Dispose(disposing)
        End Try
    End Sub

    'Required by the Windows Form Designer
    Private components As System.ComponentModel.IContainer

    'NOTE: The following procedure is required by the Windows Form Designer
    'It can be modified using the Windows Form Designer.
    'Do not modify it using the code editor.
    <System.Diagnostics.DebuggerStepThrough()> _
    Private Sub InitializeComponent()
        Me.Label1 = New System.Windows.Forms.Label()
        Me.VaultsComboBox = New System.Windows.Forms.ComboBox()
        Me.TraverseFoldersButton = New System.Windows.Forms.Button()
        Me.Label2 = New System.Windows.Forms.Label()
        Me.Label3 = New System.Windows.Forms.Label()
        Me.ListBox2 = New System.Windows.Forms.ListBox()
        Me.TextBox1 = New System.Windows.Forms.TextBox()
        Me.SuspendLayout()
        '
        'Label1
        '
        Me.Label1.AutoSize = True
        Me.Label1.Location = New System.Drawing.Point(22, 34)
        Me.Label1.Name = "Label1"
        Me.Label1.Size = New System.Drawing.Size(91, 13)
        Me.Label1.TabIndex = 0
        Me.Label1.Text = "Select vault view:"
        '
        'VaultsComboBox
        '
        Me.VaultsComboBox.FormattingEnabled = True
        Me.VaultsComboBox.Location = New System.Drawing.Point(25, 50)
        Me.VaultsComboBox.Name = "VaultsComboBox"
        Me.VaultsComboBox.Size = New System.Drawing.Size(121, 21)
        Me.VaultsComboBox.TabIndex = 1
        '
        'TraverseFoldersButton
        '
        Me.TraverseFoldersButton.Location = New System.Drawing.Point(25, 89)
        Me.TraverseFoldersButton.Name = "TraverseFoldersButton"
        Me.TraverseFoldersButton.Size = New System.Drawing.Size(212, 34)
        Me.TraverseFoldersButton.TabIndex = 2
        Me.TraverseFoldersButton.Text = "Log in, get client log, get checked-out files in vault"
        Me.TraverseFoldersButton.UseVisualStyleBackColor = True
        '
        'Label2
        '
        Me.Label2.AutoSize = True
        Me.Label2.Location = New System.Drawing.Point(22, 144)
        Me.Label2.Name = "Label2"
        Me.Label2.Size = New System.Drawing.Size(53, 13)
        Me.Label2.TabIndex = 4
        Me.Label2.Text = "Client log:"
        '
        'Label3
        '
        Me.Label3.AutoSize = True
        Me.Label3.Location = New System.Drawing.Point(24, 310)
        Me.Label3.Name = "Label3"
        Me.Label3.Size = New System.Drawing.Size(89, 13)
        Me.Label3.TabIndex = 5
        Me.Label3.Text = "Checked-out files:"
        '
        'ListBox2
        '
        Me.ListBox2.FormattingEnabled = True
        Me.ListBox2.HorizontalScrollbar = True
        Me.ListBox2.Location = New System.Drawing.Point(27, 326)
        Me.ListBox2.Name = "ListBox2"
        Me.ListBox2.ScrollAlwaysVisible = True
        Me.ListBox2.SelectionMode = System.Windows.Forms.SelectionMode.None
        Me.ListBox2.Size = New System.Drawing.Size(210, 160)
        Me.ListBox2.TabIndex = 6
        '
        'TextBox1
        '
        Me.TextBox1.Location = New System.Drawing.Point(25, 160)
        Me.TextBox1.Multiline = True
        Me.TextBox1.Name = "TextBox1"
        Me.TextBox1.ScrollBars = System.Windows.Forms.ScrollBars.Both
        Me.TextBox1.Size = New System.Drawing.Size(212, 147)
        Me.TextBox1.TabIndex = 7
        '
        'TraverseFilesFolders
        '
        Me.AutoScaleDimensions = New System.Drawing.SizeF(6.0!, 13.0!)
        Me.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font
        Me.ClientSize = New System.Drawing.Size(258, 509)
        Me.Controls.Add(Me.TextBox1)
        Me.Controls.Add(Me.ListBox2)
        Me.Controls.Add(Me.Label3)
        Me.Controls.Add(Me.Label2)
        Me.Controls.Add(Me.TraverseFoldersButton)
        Me.Controls.Add(Me.VaultsComboBox)
        Me.Controls.Add(Me.Label1)
        Me.Name = "TraverseFilesFolders"
        Me.Text = "Traverse Folders and Files"
        Me.ResumeLayout(False)
        Me.PerformLayout()

    End Sub
    Friend WithEvents Label1 As System.Windows.Forms.Label
    Friend WithEvents VaultsComboBox As System.Windows.Forms.ComboBox
    Friend WithEvents TraverseFoldersButton As System.Windows.Forms.Button
    Friend WithEvents Label2 As Label
    Friend WithEvents Label3 As Label
    Friend WithEvents ListBox2 As ListBox
    Friend WithEvents TextBox1 As TextBox
End Class
