Update File Raw References Example (C#)

This example shows how to get file references directly from a file and update file references directly in that file.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
//  1. Start Microsoft Visual Studio 2010.
//     a. Click File > New > Project > Visual C# > Windows Forms Application.
//     b. Type RawReferencesCSharp in Name.
//     c. Click Browse and navigate to the folder where to create the project.
//     d. Click OK
//     e. Click Show All Files in the Solution Explorer toolbar and expand
//        Form1.cs in the Solution Explorer.
//     f. Replace the code in Form1.cs with this code.
//     g. To create the form, replace the code in Form1.Designer.cs with
//        this code.
//  2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
//     name in the Solution Explorer, click Add Reference, click
//     Assemblies > Framework in the left-side panel, browse to the top folder of
//     your SOLIDWORKS PDM Professional installation, locate and click
//     EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
//  3. Right-click EPDM.Interop.epdm in References, click Properties, and set
//     Embed Interop Types to False to handle methods that pass arrays of
//     structures.
//  4. Check out a SOLIDWORKS assembly or drawing document whose file
//     references you want to update and check out all of the document's
//     referenced files.
//  5. Click Debug > Start Debugging or press F5.
//
// Postconditions:

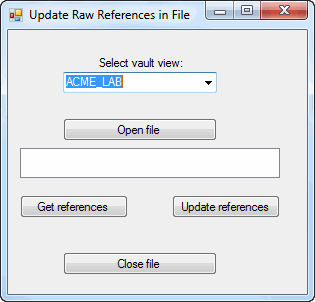

//  1. Displays the Update Raw References in File dialog box.
//  2. Select the vault view where the SOLIDWORKS assembly or
//     drawing document that you checked out in
//     Preconditions step 4 resides.
//  3. Click Open file.
//  4. Displays the Open a file dialog box.
//     a. Click the assembly or drawing document you checked out
//        in Preconditions step 4.
//     b. Click Open.
//     The opened file's path and file name appear
//     in the Update Raw References in File dialog box.
//  5. Click Get references.
//     a. Displays a message box for each referenced file.
//        The referenced file's ID, path and file name, file name,
//        type, and number of times referenced appear in the
//        message box.
//     b. Click OK to close each message box.
//  6. Rename one of the referenced files in the selected vault
//     in Windows Explorer.
//  7. Click Update references.
//     a. Displays a message box confirming that references were updated.
//     b. Click OK to close the message box.
//  8. Click Get references.
//     a. Displays a message box for each referenced file.
//        The referenced file's ID, path and file name, file name,
//        type, and number of times referenced appear in the
//        message box. Note that the renamed file is now a referenced
//        file of the open document.
//     b. Click OK to close each message box.
//  9. Click Close file.
// 10. Click OK to close the message box confirming that the open
//     document was closed.
// 11. Close the Update Raw References in File dialog box.
// 12. Check in the SOLIDWORKS assembly or drawing document and
//     its file references.
//----------------------------------------------------------------------------

//Form1.cs
using System;
using System.Windows.Forms;
using EPDM.Interop.epdm;

namespace RawReferencesCSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        IEdmVault5 vault1 = null;
        IEdmFile5 aFile;
        string fileName;
        IEdmRawReferenceMgr rawRefs;
        EdmRawReference[] refs = null;


        private void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                IEdmVault5 vault1 = new EdmVault5();
                IEdmVault8 vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + "\n" + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void UpdateButton_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                //Only create a new vault object
                //if one hasn't been created yet
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }

                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Update the file references directly in the file
                rawRefs.UpdateReferences(refs);
                MessageBox.Show("File references updated.");

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void OpenButton_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                //If one hasn't been created yet
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }

                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }
                //Set the initial directory in the Open a file dialog
                OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;
                //Show the Open a file dialog
                System.Windows.Forms.DialogResult DialogResult;
                DialogResult = OpenFileDialog1.ShowDialog();

                if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
                {
                    //Do nothing
                }
                else
                {
                    //Click a file
                    IEdmFolder5 retPath = default(IEdmFolder5);
                    fileName = OpenFileDialog1.FileName;
                    FileListBox.Items.Add(fileName);
                    aFile = vault1.GetFileFromPath(fileName, out retPath);

                }

                //Get IEdmRawReferences interface
                IEdmVault7 vault2 = null;
                vault2 = (IEdmVault7)vault1;
                rawRefs = (IEdmRawReferenceMgr)vault2.CreateUtility(EdmUtility.EdmUtil_RawReferenceMgr);
                bool fileRefsSupported = false;
                fileRefsSupported = rawRefs.Open(fileName);
                if (!fileRefsSupported)
                {
                    MessageBox.Show("File's format does not support file references.");
                    return;
                }


            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void GetButton_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                //Only create a new vault object
                //if one hasn't been created yet
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }

                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                int arrSize = 0;
                int i = 0;
                string message = null;
                //Get the file references directly from the file
                rawRefs.GetReferences(ref refs);
                arrSize = refs.Length;
                if (arrSize == 0)
                {
                    MessageBox.Show("No file references for opened file.");
                    return;
                }
                while (i < arrSize)
                {
                    message = "File reference information: " + "\n" + "\n";
                    message = message + "  Internal ID: " + refs[i].mbsRefID + "\n";
                    message = message + "  Referenced how: " + refs[i].mbsIncludePath + "\n";
                    message = message + "  Reference name: " + refs[i].mbsRefName + "\n";
                    message = message + "  Number of times file referenced = " + refs[i].mlCount.ToString() + "\n";
                    switch (refs[i].mlFlags)
                    {
                        case (int)EdmRawRefFlags.Edmrrf_Ghost:
                            message = message + "  Type = DWG files can store grandchildren as references" + "\n";
                            break;
                        case (int)EdmRawRefFlags.Edmrrf_InternalComponent:
                            message = message + "  Type = Not used" + "\n";
                            break;
                        case (int)EdmRawRefFlags.Edmrrf_Nothing:
                            message = message + "  Type = Normal file reference" + "\n";
                            break;
                    }
                    i = i + 1;
                    MessageBox.Show(message);
                }

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void CloseButton_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                //Only create a new vault object
                //if one hasn't been created yet
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }

                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Close the file
                rawRefs.Close();
                MessageBox.Show("File closed.");

            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

    }
}
//Form1.Designer.cs
namespace RawReferencesCSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
        /// Clean up any resources being used.
        /// </summary>
        /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
        /// Required method for Designer support - do not modify
        /// the contents of this method with the code editor.
        /// </summary>
        private void InitializeComponent()
        {
            this.label1 = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.OpenButton = new System.Windows.Forms.Button();
            this.FileListBox = new System.Windows.Forms.ListBox();
            this.UpdateButton = new System.Windows.Forms.Button();
            this.GetButton = new System.Windows.Forms.Button();
            this.CloseButton = new System.Windows.Forms.Button();
            this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
            this.SuspendLayout();
            //
            // label1
            //
            this.label1.AutoSize = true;
            this.label1.Location = new System.Drawing.Point(82, 24);
            this.label1.Name = "label1";
            this.label1.Size = new System.Drawing.Size(91, 13);
            this.label1.TabIndex = 0;
            this.label1.Text = "Select vault view:";
            //
            // VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(41, 40);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(196, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            // OpenButton
            //
            this.OpenButton.Location = new System.Drawing.Point(74, 67);
            this.OpenButton.Name = "OpenButton";
            this.OpenButton.Size = new System.Drawing.Size(108, 23);
            this.OpenButton.TabIndex = 2;
            this.OpenButton.Text = "Open file";
            this.OpenButton.UseVisualStyleBackColor = true;
            this.OpenButton.Click += new System.EventHandler(OpenButton_Click);
            //
            // FileListBox
            //
            this.FileListBox.FormattingEnabled = true;
            this.FileListBox.Location = new System.Drawing.Point(12, 96);
            this.FileListBox.Name = "FileListBox";
            this.FileListBox.Size = new System.Drawing.Size(235, 30);
            this.FileListBox.TabIndex = 3;
            //
            // OpenFileDialog1
            //
            this.OpenFileDialog1.FileName = "OpenFileDialog1";
            this.OpenFileDialog1.Multiselect = true;
            this.OpenFileDialog1.Title = "Open a file";
            //
            // UpdateButton
            //
            this.UpdateButton.Location = new System.Drawing.Point(139, 144);
            this.UpdateButton.Name = "UpdateButton";
            this.UpdateButton.Size = new System.Drawing.Size(108, 23);
            this.UpdateButton.TabIndex = 4;
            this.UpdateButton.Text = "Update references";
            this.UpdateButton.UseVisualStyleBackColor = true;
            this.UpdateButton.Click += new System.EventHandler(UpdateButton_Click);
            //
            // GetButton
            //
            this.GetButton.Location = new System.Drawing.Point(12, 144);
            this.GetButton.Name = "GetButton";
            this.GetButton.Size = new System.Drawing.Size(108, 23);
            this.GetButton.TabIndex = 5;
            this.GetButton.Text = "Get references";
            this.GetButton.UseVisualStyleBackColor = true;
            this.GetButton.Click += new System.EventHandler(GetButton_Click);
            //
            // CloseButton
            //
            this.CloseButton.Location = new System.Drawing.Point(74, 192);
            this.CloseButton.Name = "CloseButton";
            this.CloseButton.Size = new System.Drawing.Size(99, 23);
            this.CloseButton.TabIndex = 6;
            this.CloseButton.Text = "Close file";
            this.CloseButton.UseVisualStyleBackColor = true;
            this.CloseButton.Click += new System.EventHandler(CloseButton_Click);
            //
            // Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(266, 233);
            this.Controls.Add(this.CloseButton);
            this.Controls.Add(this.GetButton);
            this.Controls.Add(this.UpdateButton);
            this.Controls.Add(this.FileListBox);
            this.Controls.Add(this.OpenButton);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.label1);
            this.Name = "Form1";
            this.Text = "Update Raw References in File";
            this.Load += new System.EventHandler(Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        private System.Windows.Forms.Label label1;
        private System.Windows.Forms.ComboBox VaultsComboBox;
        private System.Windows.Forms.Button OpenButton;
        private System.Windows.Forms.ListBox FileListBox;
        private System.Windows.Forms.Button UpdateButton;
        private System.Windows.Forms.Button GetButton;
        private System.Windows.Forms.Button CloseButton;
        private System.Windows.Forms.OpenFileDialog OpenFileDialog1;

    }
}



Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Update File Raw References Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2018 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
