Copy Assembly Tree of Files Example (C#)

This example shows how to copy an assembly and its tree of reference files to a destination folder in the vault.

NOTE: If using the .NET Framework 4.0 primary interop assembly provided with SOLIDWORKS PDM Professional, see Using .NET Framework 4.0 in Stand-alone Applications.

//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
//    a. Click File > New > Project > Visual C# > Windows Forms Application.
//    b. Type CopyTree_CSharp in Name.
//    c. Click Browse and navigate to the folder where to create
//       the project.
//    d. Click OK
//    e. Click Show All Files in the Solution Explorer toolbar and expand
//       Form1.cs in the Solution Explorer.
//    f. Replace the code in Form1.cs with this code.
//    g. To create the form, replace the code in Form1.Designer.cs with this code.
// 2. Add references to:
//    a. Microsoft.VisualBasic (right-click the project
//       name in the Solution Explorer, click Add > Reference >
//       Assemblies > Framework >
select Microsoft.VisualBasic).
//    b. EPDM.Interop.epdm.dll (click Browse and browse to the top folder
//       of your SOLIDWORKS PDM Professional installation, select
//       EPDM.Interop.epdm.dll).
//    c. EPDM.interop.EPDMResultCode.dll (click Browse, select
//       EPDM.interop.EPDMResultCode.dll, and click OK)
.

// 3. Add Microsoft.VisualBasic as a reference
//    (click
Add > Reference, select Assemblies > Framework
//    in the left-side panel, click Microsoft.VisualBasic, and click OK).

// 4. Right-click EPDM.Interop.epdm in References, click Properties, and set
//    Embed Interop Types to False to handle methods that pass arrays of
//    structures.
// 5. Ensure that the vault root folder contains an assembly that
//    is checked in with its referenced parts and drawings.
// 6. Create a destination folder called New Folder in the vault.

// 7. Click Debug > Start Debugging or press F5.

//
// Postconditions:

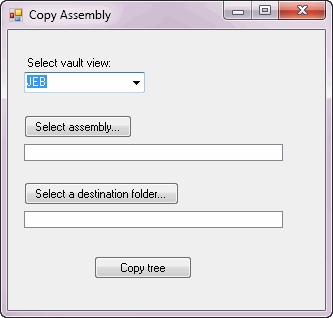

// 1. Displays the Copy Assembly dialog box.
//    a. Select a vault view.
//    b. Click Select assembly
//       Locate and double-click an assembly.
//    c. Click Select a destination folder.
//       1. Locate and select New Folder.
//       2. Click OK.
//    d. Click Copy tree.
//       The Copy Tree dialog shows the files to copy.
//    e. Click Copy
//       The Copying tree progress bar appears.
//    f. Inspect the destination folder.

// 2. Close the Copy Assembly dialog box.

//----------------------------------------------------------------------------

//Form1.cs


using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
using Microsoft.VisualBasic;




namespace CopyTree_CSharp
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }
        private IEdmVault5 vault1 = null;

        public void Form1_Load(System.Object sender, System.EventArgs e)
        {
            try
            {
                IEdmVault5 vault1 = new EdmVault5();
                IEdmVault8 vault = (IEdmVault8)vault1;
                EdmViewInfo[] Views = null;

                vault.GetVaultViews(out Views, false);
                VaultsComboBox.Items.Clear();
                foreach (EdmViewInfo View in Views)
                {
                    VaultsComboBox.Items.Add(View.mbsVaultName);
                }
                if (VaultsComboBox.Items.Count > 0)
                {
                    VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        public void BrowseButton_Click(System.Object sender, System.EventArgs e)
        {
            try
            {
                ListBox.Items.Clear();

                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                //Set the initial directory in the Open dialog
                OpenFileDialog.InitialDirectory = vault1.RootFolderPath;
                //Show the Open dialog
                System.Windows.Forms.DialogResult DialogResult;
                DialogResult = OpenFileDialog.ShowDialog();
                //If the user didn't click Open, exit
                if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
                {
                    return;
                }

                foreach (string FileName in OpenFileDialog.FileNames)
                {
                    ListBox.Items.Add(FileName);
                }
            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }
        public void AddFiles_Click(System.Object sender, System.EventArgs e)
        {

            try
            {

                IEdmVault19 vault2 = null;
                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                vault2 = (IEdmVault19)vault1;
                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                if (!(ListBox.Items.Count == 1))
                {
                    MessageBox.Show("Please select an assembly.");
                    return;
                }

                if (!(listBox1.Items.Count == 1))
                {
                    MessageBox.Show("Please select a destination folder.");
                    return;
                }


                IEdmFile12 aFile = default(IEdmFile12);
                string destFolder = null;
                IEdmFolder9 Folder = default(IEdmFolder9);

                Folder = (IEdmFolder9)vault2.RootFolder;


                string[] FileNames = new string[3];
                int Index = 0;
                dynamic fileStr = "";
                foreach (Object FileName_loopVariable in ListBox.Items)
                {
                    fileStr = FileName_loopVariable.ToString();

                    FileNames[Index] = fileStr.Substring(fileStr.LastIndexOf("\\"));
                    Index = Index + 1;
                }


                // Copy the assembly's tree of files to the specified destination folder
                EdmCopyTreeOptions copyTreeOptions;
                copyTreeOptions.mbsPrefix = "Copy_";
                copyTreeOptions.mbsSuffix = "";
                copyTreeOptions.mbIncludeDrawings = 0; // 0 = true
                copyTreeOptions.mbUseLatestVersion = 0;

                IEdmFolder5 ppoParentFolder;

                aFile = (IEdmFile12)vault2.GetFileFromPath(Folder.LocalPath + "\\" + FileNames[0], out ppoParentFolder);
                destFolder = listBox1.Items[0].ToString();
                vault2.CopyTree(aFile.ID, Folder.ID, destFolder, truetrue, copyTreeOptions, this.Handle.ToInt32());


            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }
        }

        private void BrowseDestFolder_Click(object sender, EventArgs e)
        {
            try
            {
                listBox1.Items.Clear();

                if (vault1 == null)
                {
                    vault1 = new EdmVault5();
                }
                if (!vault1.IsLoggedIn)
                {
                    //Log into selected vault as the current user
                    vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
                }

                IEdmFolder10 rootFolder = default(IEdmFolder10);
                rootFolder = (IEdmFolder10)vault1.RootFolder;

                IEdmFolder10 aFolder = default(IEdmFolder10);
                aFolder = (IEdmFolder10)vault1.BrowseForFolder(this.Handle.ToInt32(), "Select a destination folder");

                listBox1.Items.Add(rootFolder.LocalPath + "\\" + aFolder.Name);


            }
            catch (System.Runtime.InteropServices.COMException ex)
            {
                MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
            }
            catch (Exception ex)
            {
                MessageBox.Show(ex.Message);
            }

        }


    }
}




Back to top

//Form1.Designer.cs

namespace CopyTree_CSharp
{
    partial class Form1
    {
        /// <summary>
        /// Required designer variable.
        /// </summary>
        private System.ComponentModel.IContainer components = null;

        /// <summary>
                /// Clean up any resources being used.
                /// </summary>
                /// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
        protected override void Dispose(bool disposing)
        {
            if (disposing && (components != null))
            {
                components.Dispose();
            }
            base.Dispose(disposing);
        }

        #region Windows Form Designer generated code

        /// <summary>
                /// Required method for Designer support - do not modify
                /// the contents of this method with the code editor.
                /// </summary>
        private void InitializeComponent()
        {
            this.VaultsLabel = new System.Windows.Forms.Label();
            this.VaultsComboBox = new System.Windows.Forms.ComboBox();
            this.BrowseAssembly = new System.Windows.Forms.Button();
            this.ListBox = new System.Windows.Forms.ListBox();
            this.CopyTree = new System.Windows.Forms.Button();
            this.OpenFileDialog = new System.Windows.Forms.OpenFileDialog();
            this.BrowseDestFolder = new System.Windows.Forms.Button();
            this.listBox1 = new System.Windows.Forms.ListBox();
            this.SuspendLayout();
            //
            // VaultsLabel
            //
            this.VaultsLabel.AutoSize = true;
            this.VaultsLabel.Location = new System.Drawing.Point(13, 26);
            this.VaultsLabel.Name = "VaultsLabel";
            this.VaultsLabel.Size = new System.Drawing.Size(94, 13);
            this.VaultsLabel.TabIndex = 0;
            this.VaultsLabel.Text = " Select vault view:";
            //
            // VaultsComboBox
            //
            this.VaultsComboBox.FormattingEnabled = true;
            this.VaultsComboBox.Location = new System.Drawing.Point(16, 42);
            this.VaultsComboBox.Name = "VaultsComboBox";
            this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
            this.VaultsComboBox.TabIndex = 1;
            //
            // BrowseAssembly
            //
            this.BrowseAssembly.Location = new System.Drawing.Point(16, 85);
            this.BrowseAssembly.Name = "BrowseAssembly";
            this.BrowseAssembly.Size = new System.Drawing.Size(121, 23);
            this.BrowseAssembly.TabIndex = 3;
            this.BrowseAssembly.Text = "Select assembly...";
            this.BrowseAssembly.UseVisualStyleBackColor = true;
            this.BrowseAssembly.Click += new System.EventHandler(this.BrowseButton_Click);
            //
            // ListBox
            //
            this.ListBox.FormattingEnabled = true;
            this.ListBox.HorizontalScrollbar = true;
            this.ListBox.Location = new System.Drawing.Point(16, 114);
            this.ListBox.Name = "ListBox";
            this.ListBox.SelectionMode = System.Windows.Forms.SelectionMode.None;
            this.ListBox.Size = new System.Drawing.Size(259, 30);
            this.ListBox.TabIndex = 4;
            //
            // CopyTree
            //
            this.CopyTree.Location = new System.Drawing.Point(77, 293);
            this.CopyTree.Name = "CopyTree";
            this.CopyTree.Size = new System.Drawing.Size(98, 23);
            this.CopyTree.TabIndex = 5;
            this.CopyTree.Text = "Copy tree";
            this.CopyTree.UseVisualStyleBackColor = true;
            this.CopyTree.Click += new System.EventHandler(this.AddFiles_Click);
            //
            // OpenFileDialog
            //
            this.OpenFileDialog.Title = "Open";
            //
            // BrowseDestFolder
            //
            this.BrowseDestFolder.Location = new System.Drawing.Point(16, 181);
            this.BrowseDestFolder.Name = "BrowseDestFolder";
            this.BrowseDestFolder.Size = new System.Drawing.Size(142, 23);
            this.BrowseDestFolder.TabIndex = 6;
            this.BrowseDestFolder.Text = "Select destination folder...";
            this.BrowseDestFolder.UseVisualStyleBackColor = true;
            this.BrowseDestFolder.Click += new System.EventHandler(this.BrowseDestFolder_Click);
            //
            // listBox1
            //
            this.listBox1.FormattingEnabled = true;
            this.listBox1.Location = new System.Drawing.Point(16, 211);
            this.listBox1.Name = "listBox1";
            this.listBox1.SelectionMode = System.Windows.Forms.SelectionMode.None;
            this.listBox1.Size = new System.Drawing.Size(259, 30);
            this.listBox1.TabIndex = 7;
            //
            //
            // Form1
            //
            this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 13F);
            this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
            this.ClientSize = new System.Drawing.Size(317, 363);
            this.Controls.Add(this.listBox1);
            this.Controls.Add(this.BrowseDestFolder);
            this.Controls.Add(this.CopyTree);
            this.Controls.Add(this.ListBox);
            this.Controls.Add(this.BrowseAssembly);
            this.Controls.Add(this.VaultsComboBox);
            this.Controls.Add(this.VaultsLabel);
            this.Name = "Form1";
            this.Text = "Copy Assembly";
            this.Load += new System.EventHandler(this.Form1_Load);
            this.ResumeLayout(false);
            this.PerformLayout();

        }

        #endregion

        internal System.Windows.Forms.Label VaultsLabel;
        internal System.Windows.Forms.ComboBox VaultsComboBox;
        internal System.Windows.Forms.Button BrowseAssembly;
        internal System.Windows.Forms.ListBox ListBox;
        internal System.Windows.Forms.Button CopyTree;
        internal System.Windows.Forms.OpenFileDialog OpenFileDialog;
        internal System.Windows.Forms.Button BrowseDestFolder;
        internal System.Windows.Forms.ListBox listBox1;
    }
}




Back to top



Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   Copy Assembly Tree of Files Example (C#)
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:



x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2018 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.
