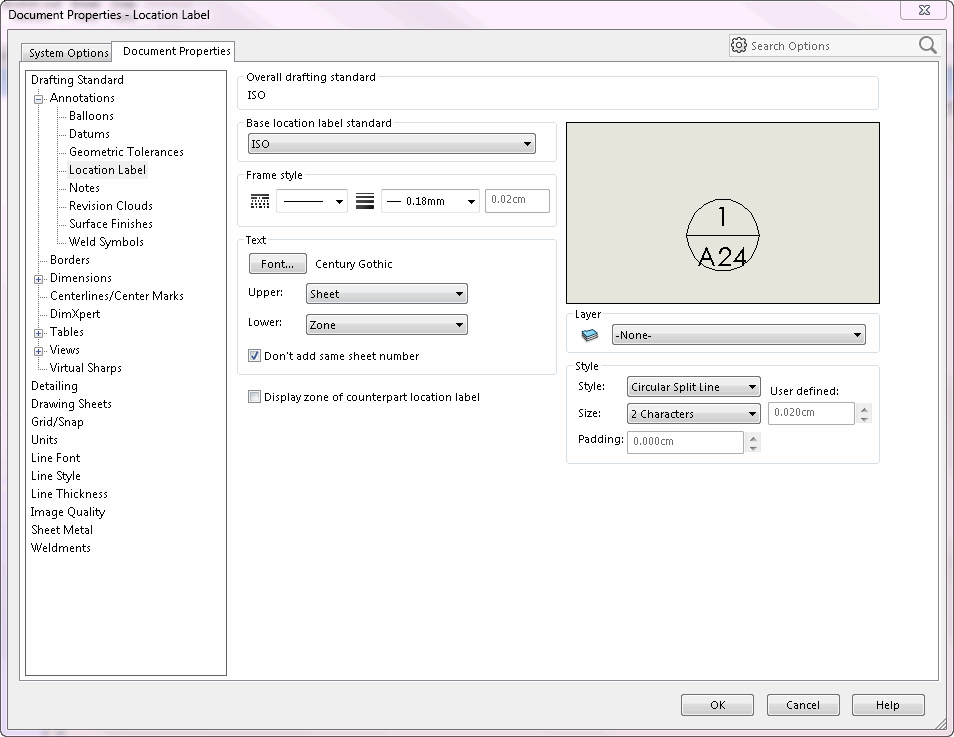

Document Properties > Annotations > Location Label



Setting

Get/Set Methods

Return Value or <Value>

Comments

Base location label standard

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingLocationLabel, swDetailingStandard_e.<Value>)

See swDetailingStandard_e for valid options

Specifies the standard to use for a location label

Frame style - Frame Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFrameLineStyle, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFrameLineStyle, swUserPreferenceOption_e.swDetailingLocationLabel, swLineStyles_e.<Value>)

See swLineStyles_e for valid options

Specifies the style of the frame of a location label

Frame style -  Frame Thickness

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFrameLineThickness, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFrameLineThickness, swUserPreferenceOption_e.swDetailingLocationLabel, swLineWeights_e.<Value>)

See swLineWeights_e for valid options

Specifies the thickness of the frame of a location label

Frame style - Custom Thickness

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelFrameLineThicknessCustom, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelFrameLineThicknessCustom, swUserPreferenceOption_e.swDetailingLocationLabel, <Value>)

Double value

Specifies the custom thickness of the lines of a location label frame

Text - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingLocationLabelTextFormat, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingLocationLabelTextFormat, swUserPreferenceOption_e.swDetailingLocationLabel, <Value>)

See ITextFormat for valid font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method

Text - Upper

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelUpperText, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelUpperText, swUserPreferenceOption_e.swDetailingLocationLabel, swLocationLabelText_e.<Value>)

See swLocationLabelText_e for valid options

Specifies the text for the upper section of a location label

Text - Lower

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelLowerText, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelLowerText, swUserPreferenceOption_e.swDetailingLocationLabel, swLocationLabelText_e.<Value>)

See swLocationLabelText_e for valid options

Specifies the text for the lower section of a location label


Text - Don't add same sheet number

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingLocationLabelAddSameSheetNumber, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingLocationLabelAddSameSheetNumber, swUserPreferenceOption_e.swDetailingLocationLabel, <Value>)


Boolean value

Specifies whether to add the same sheet number to a location label

Display zone of counterpart location label

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCounterpartLocationLabel, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCounterpartLocationLabel, swUserPreferenceOption_e.swDetailingLocationLabel, <Value>)

Boolean value

Specifies whether to display the zone of the counterpart location label


Layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingLocationLabel, <Value>)


String value

Specifies the name of the layer to which to apply these settings; this setting is available only in drawings

Style - Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelStyle, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelStyle, swUserPreferenceOption_e.swDetailingLocationLabel, swBalloonStyle_e.<Value>)


See swBalloonStyle_e for valid options

Specifies the style of a location label

Style - Size

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFit, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFit, swUserPreferenceOption_e.swDetailingLocationLabel, swBalloonFit_e.<Value>)


See swBalloonFit_e for valid options

Specifies the size of a location label

Style - User defined

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelStyleCustomSize, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelStyleCustomSize, swUserPreferenceOption_e.swDetailingLocationLabel, <Value>)


Double value

Specifies a user-defined size of a location label

Style - Padding

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelPadding, swUserPreferenceOption_e.swDetailingLocationLabel)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelPadding, swUserPreferenceOption_e.swDetailingLocationLabel, <Value>)


Double value

Specifies the size of the extra padding inside tight-fit borders for a location label
