SOLIDWORKS API

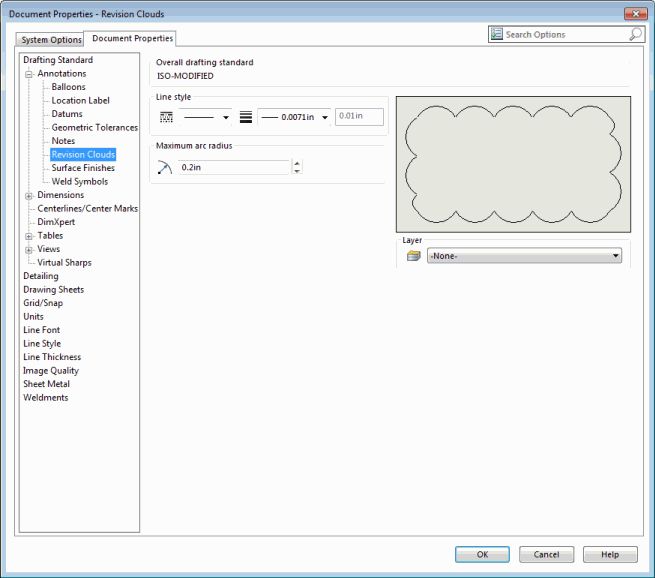

Document Properties > Annotations > Revision Clouds



Setting

Get/Set Methods

Return Value or <Value>

Comments

Overall drafting standard

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingRevisionCloud)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingRevisionCloud, swDetailingStandard_e.<Value>)

See swDetailingStandard_e for valid options

Specifies the overall drafting standard

Line style - Frame Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionCloudLineStyle, swUserPreferenceOption_e.swDetailingRevisionCloud)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionCloudLineStyle, swUserPreferenceOption_e.swDetailingRevisionCloud, swLineStyles_e.<Value>)

See swLineStyles_e for valid options

Specifies the style of the frames of revision clouds

Line style - Frame Thickness

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionCloudLineThickness, swUserPreferenceOption_e.swDetailingRevisionCloud)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingRevisionCloudLineThickness, swUserPreferenceOption_e.swDetailingRevisionCloud, swLineWeights_e.<Value>)

See swLineWeights_e for valid options

Specifies the thickness of the frames of revision clouds

Line style - Custom Thickness

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingRevisionCloudLineThicknessCustom, swUserPreferenceOption_e.swDetailingRevisionCloud)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingRevisionCloudLineThicknessCustom, swUserPreferenceOption_e.swDetailingRevisionCloud, <Value>)

Double value

Specifies a custom thickness for the frames of revision clouds; sets Custom Thickness to the specified thickness and Frame Thickness to Custom Size

Maximum arc radius

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingRevisionCloudMaxArcRadius, swUserPreferenceOption_e.swDetailingRevisionCloud)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingRevisionCloudMaxArcRadius, swUserPreferenceOption_e.swDetailingRevisionCloud, <Value>)

Double value

Specifies the maximum radius of each frame arc

Layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingRevisionCloud)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingRevisionCloud, <Value>)

Valid Options:

  • "Border"

  • "Dimensions"

  • "Notes"

  • "BOM"

  • "FORMAT"

This setting is available only on drawings; depending on drawing, some options may not apply
