> Solidworks Help

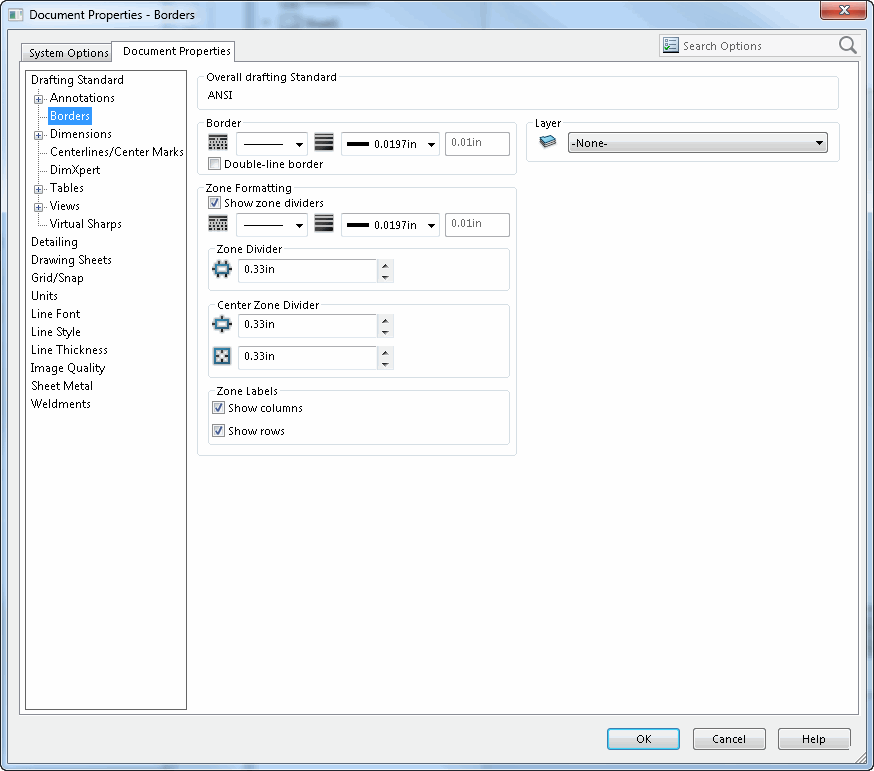

Document Properties > Borders (drawings only)

Setting	Get/Set Methods	Return Value or <Value>	Comments
Border - Line Style of Border	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBorderLeaderLineStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBorderLeaderLineStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e.<Value>)	See swLineStyles_e for valid options	Specifies the style of border lines
Border - Line Width of Border	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBorderLeaderLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBorderLeaderLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)	See swLineWeights_e for valid options	Specifies the thickness of border lines
Border - Custom thickness	IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBorderLeaderCustomLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBorderLeaderCustomLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Double value	Specifies custom thickness of border lines; sets Custom Thickness to the specified thickness and Line Width of Border to Custom Size
Border - Double-line border	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingBorderDoubleLine, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingBorderDoubleLine, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Boolean value	Specifies whether to use double-line borders
Zone Formatting - Show zone dividers	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingBorderShowZoneDividers, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingBorderShowZoneDividers, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Boolean value	Specifies whether to show zone dividers
Zone Formatting - Line Style of Zone Divider	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBorderZoneDividerLineStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBorderZoneDividerLineStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineStyles_e.<Value>)	See swLineStyles_e for valid options	Specifies the style of zone divider lines
Zone Formatting - Line Width of Zone Divider	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBorderZoneDividerLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingBorderZoneDividerLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)	See swLineWeights_e for valid options	Specifies the thickness of zone divider lines
Zone Formatting - Custom thickness	IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBorderZoneDividerCustomLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBorderZoneDividerCustomLineThickness, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Double value	Specifies custom thickness of zone divider lines; sets Custom Thickness to the specified thickness and Line Width of Zone Divider to Custom Size
Zone Divider - Length of Zone Divider	IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBorderZoneDividerLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBorderZoneDividerLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Double value	Specifies the length of zone dividers
Center Zone Divider - Length of outer Center Zone Divider	IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBorderOuterCenterZoneDividerLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBorderOuterCenterZoneDividerLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Double value	Specifies the length of outer center zone dividers
Center Zone Divider - Length of inner Center Zone Divider	IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBorderInnerCenterZoneDividerLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingBorderInnerCenterZoneDividerLength, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Double value	Specifies the length of inner center zone dividers
Zone Labels - Show columns	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingBorderShowColumns, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingBorderShowColumns, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Boolean value	Specifies whether to show column zone labels
Zone Labels - Show rows	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingBorderShowRows, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingBorderShowRows, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Boolean value	Specifies whether to show row zone labels
Layer	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swBorderLayer, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swBorderLayer, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Valid Options: "Border" "Dimensions" "Notes" "BOM" "FORMAT"	Depending on the drawing, some options may not apply
