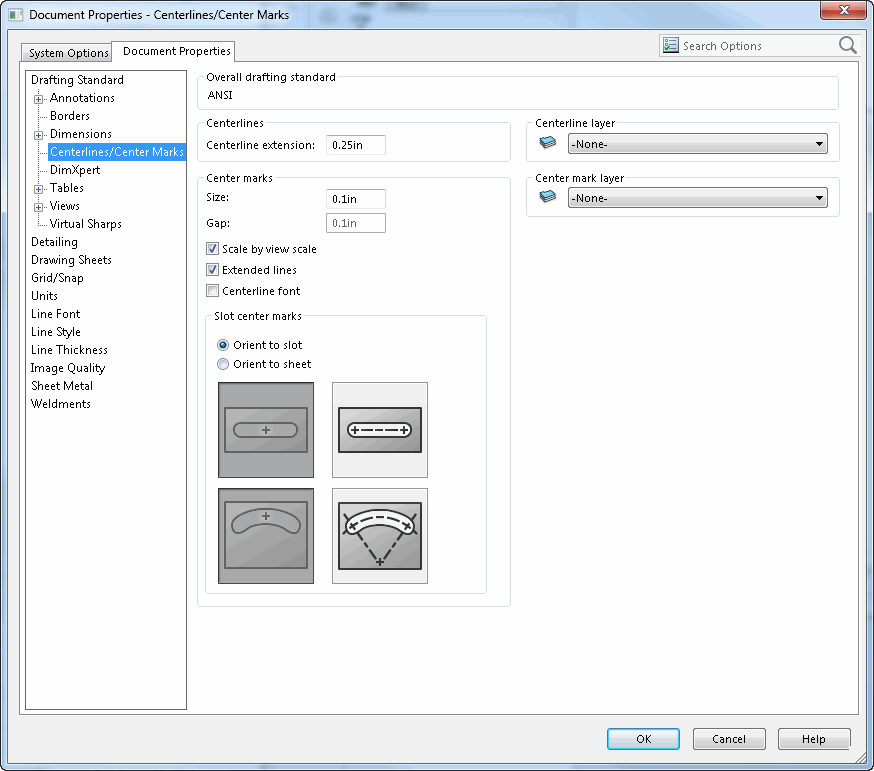

Document Properties > Centerlines/Center Marks



Setting

Get/Set Methods

Return Value or <Value>

Comments

Centerlines - Centerline extension

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingCenterlineExtension, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingCenterlineExtension, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in meters

Specifies length to extend the centerline beyond section geometry when in a drawing view

Center marks - Size

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingCenterMarkSize, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingCenterMarkSize, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in meters

Specifies the size of center marks in drawings

Center marks - Gap



IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingCenterMarkGap, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingCenterMarkGap, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in meters

Specifies the center mark gap size

Center marks - Scale by view scale



IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingCenterMarkScaleByViewScale, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingCenterMarkScaleByViewScale, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to scale center marks by the view scale

Center marks - Extended lines

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingCenterMarkShowLines, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingCenterMarkShowLines, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display center mark extension lines

Center marks - Centerline font

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingCenterMarkUseCenterLine, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingCenterMarkUseCenterLine, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether lines in center marks use font specified for centerlines

Slot center marks - Orient to slot or Orient to sheet

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swCenterLineMarkOrient, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swCenterLineMarkOrient, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swCenterLineMarkOrient_e.<Value>)

See swCenterLineMarkOrient_e for valid options

Specifies the orientation of the centerline marks

Slot center marks - Place mark at centers of straight slots

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swCenterLineMarkLinear, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swCenterLineMarkLinear, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies placement of marks at centers of straight slots

Slot center marks - Place mark at ends of straight slots

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swCenterLineMarkEndsOnlyLinear, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swCenterLineMarkEndsOnlyLinear, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies placement of marks at ends of straight slots; only available with Slot center marks - Orient to slot option

Slot center marks - Place mark at centers of arc slots

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swCenterLineMarkCircular, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swCenterLineMarkCircular, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies placement of marks at centers of arc slots

Slot center marks - Place mark at ends of arc slots

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swCenterLineMarkEndsOnlyCircular, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swCenterLineMarkEndsOnlyCircular, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies placement of marks at ends of arc slots; only available with Slot center marks - Orient to slot option

Centerline layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swCenterLineLayer, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swCenterLineLayer, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)



Valid Options:

  • "Border"
  • "Dimensions"
  • "Notes"
  • "BOM"
  • "FORMAT"

Depending on the drawing, some options may not apply

Center mark layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swCenterMarkLayer, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swCenterMarkLayer, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)



Valid Options:

  • "Border"
  • "Dimensions"
  • "Notes"
  • "BOM"
  • "FORMAT"

Depending on drawing, some options may not apply
