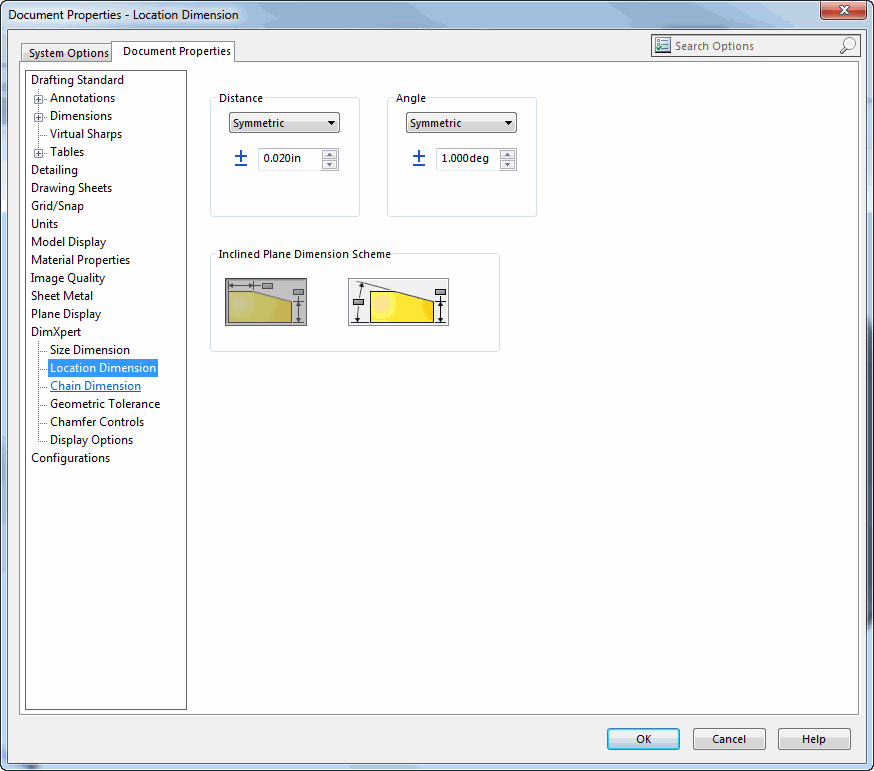

Document Properties > DimXpert > Location Dimension



Setting

Get/Set Methods

Return Value or <Value>

Comments

Distance - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLocationDistanceTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLocationDistanceTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the tolerance type for linear dimensions between two features

Distance - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLocationDistanceTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLocationDistanceTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

for the distance of linear dimensions between two features

Distance - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLocationDistanceTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLocationDistanceTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance for the distance of linear dimensions between two features

Distance - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLocationDistanceBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLocationDistanceBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance for the distance of linear dimensions between two features

Angle - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLocationAngleTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLocationAngleTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the tolerance type for angular dimensions between two features

Angle - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLocationAngleTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLocationAngleTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

for the angle of angular dimensions between two features

Angle - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLocationAngleTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLocationAngleTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance for the angle of angular dimensions between two features

Angle - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLocationAngleBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLocationAngleBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance for the angle of angular dimensions between two features

Inclined Plane Dimension Scheme - Linear or Linear and angle

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertLocationInclinedPlane, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertLocationInclinedPlane, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to locate planes with angular dimensions
