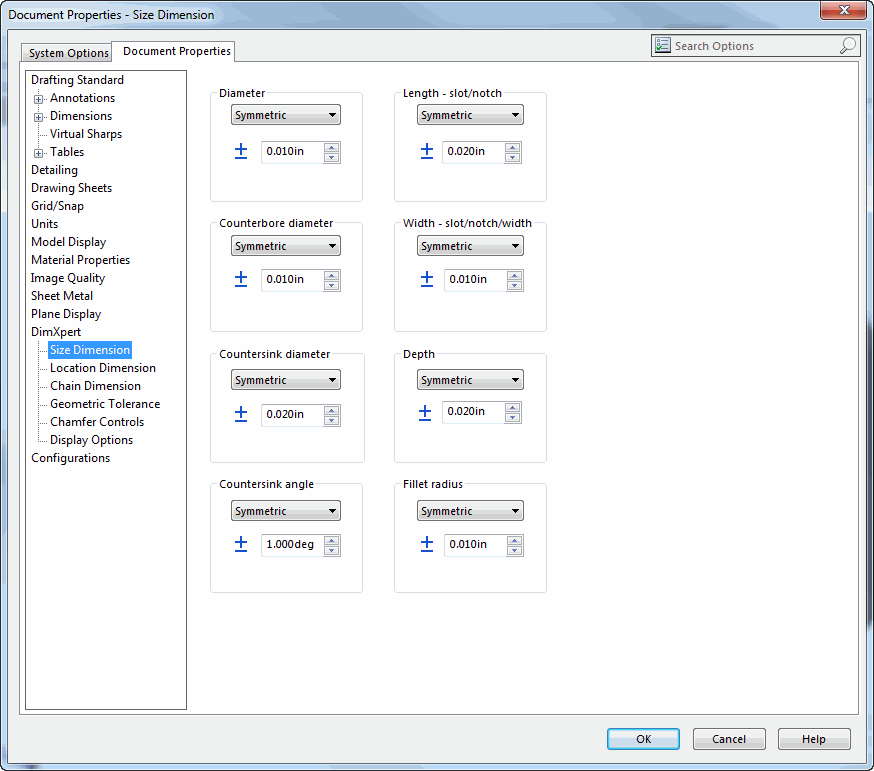

Document Properties > DimXpert > Size Dimension



Setting

Get/Set Methods

Return Value or <Value>

Comments

Diameter - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDiameterTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDiameterTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the diameter tolerance type for bosses, cylinders, counterbore holes, countersink holes, and simple holes

Diameter - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDiameterTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDiameterTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

of the diameters of bosses, cylinders, counterbore holes, countersink holes, and simple holes

Diameter - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDiameterTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDiameterTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance of the diameters of bosses, cylinders, counterbore holes, countersink holes, and simple holes

Diameter - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeDiameterBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeDiameterBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance of the diameters of bosses, cylinders, counterbore holes, countersink holes, and simple holes

Counterbore diameter - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCounterboreDiameterTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCounterboreDiameterTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the diameter tolerance type for the counterbore portion of counterbore holes

Counterbore diameter - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCounterboreDiameterTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCounterboreDiameterTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

of the counterbore portion of counterbore holes

Counterbore diameter - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCounterboreDiameterTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCounterboreDiameterTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance of the counterbore portion of counterbore holes

Counterbore diameter - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCounterboreDiameterBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCounterboreDiameterBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance of the counterbore portion of counterbore holes

Countersink diameter - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCountersinkDiameterTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCountersinkDiameterTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the diameter tolerance type for countersinks

Countersink diameter - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkDiameterTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkDiameterTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

of countersink diameters

Countersink diameter - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkDiameterTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkDiameterTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance of countersink diameters

Countersink diameter - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCountersinkDiameterBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCountersinkDiameterBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance of countersink diameters

Countersink angle - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCountersinkAngleTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertCountersinkAngleTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the tolerance type for countersink angles

Countersink angle - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkAngleTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkAngleTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

of countersink angles

Countersink angle - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkAngleTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertCountersinkAngleTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance of countersink angles

Countersink angle - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCountersinkAngleBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeCountersinkAngleBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance of countersink angles

Length - slot/notch - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthSlotTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthSlotTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the tolerance type for the lengths of slots/notches

Length - slot/notch - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthSlotTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthSlotTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

of the lengths of slots/notches

Length - slot/notch - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthSlotTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthSlotTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance of the lengths of slots/notches

Length - slot/notch - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeLengthSlotBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeLengthSlotBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance of the lengths of slots/notches

Width - slot/notch/width - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertWidthSlotTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertWidthSlotTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the tolerance type for the widths of slots/notches

Width - slot/notch/width - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertWidthSlotTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertWidthSlotTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

of the widths of slots/notches

Width - slot/notch/width - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertWidthSlotTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertWidthSlotTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance of the widths of slots/notches

Width - slot/notch/width - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeWidthSlotBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeWidthSlotBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance of the widths of slots/notches

Depth - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDepthTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertDepthTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the depth tolerance type for counterbores, counterbore holes, countersinks, notches, pockets, simple holes, and slots

Depth - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDepthTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDepthTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

of the depths of counterbores, counterbore holes, countersinks, notches, pockets, simple holes, and slots

Depth - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDepthTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertDepthTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance of the depths of counterbores, counterbore holes, countersinks, notches, pockets, simple holes, and slots

Depth - Block tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeDepthBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeDepthBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance of the depths of counterbores, counterbore holes, countersinks, notches, pockets, simple holes, and slots

Fillet radius - Tolerance type

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertFilletRadiusTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertFilletRadiusTolType, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertTolType_e.<Value>)

See swDimXpertTolType_e for valid options

Sets the fillet radius tolerance type

Fillet radius - Bilateral or Symmetric tolerance upper value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertFilletRadiusTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertFilletRadiusTolUpperValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies:

  • the upper and lower symmetric tolerances
    - or -
  • the upper bilateral tolerance

for fillet radii

Fillet radius - Bilateral tolerance lower value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertFilletRadiusTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertFilletRadiusTolLowerValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

Specifies the lower bilateral tolerance for fillet radii

Fillet radius - Block precision tolerance value

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeFilletRadiusBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertSizeFilletRadiusBlockPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertBlockPrecision_e.<Value>)

See swDimXpertBlockPrecision_e for valid options

Sets the block precision tolerance for fillet radii
