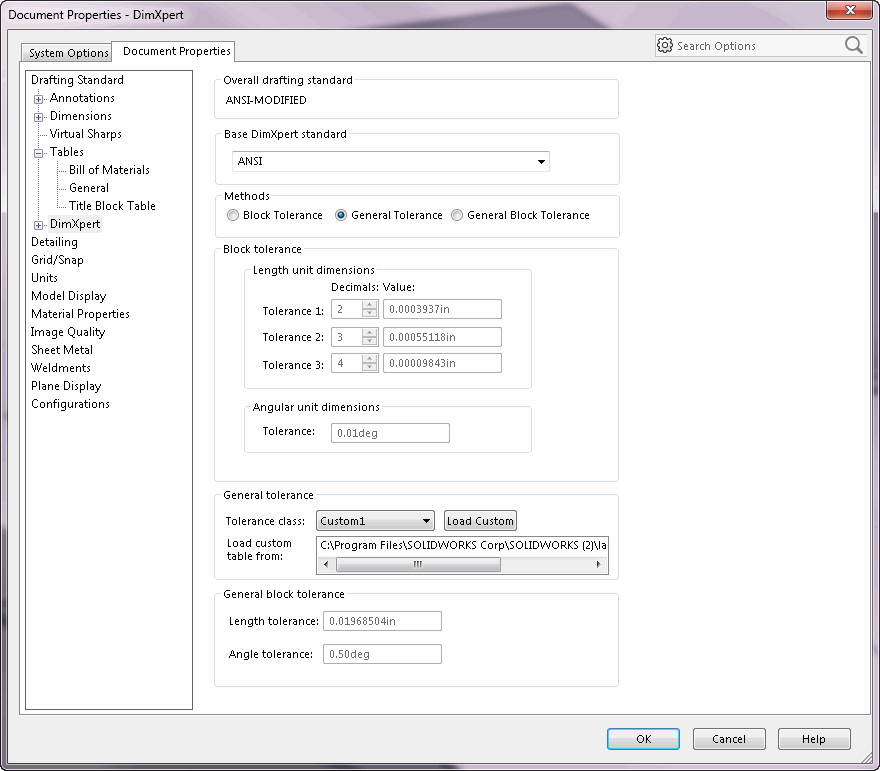

Document Properties > DimXpert



Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comments

Methods - Block Tolerance or General Tolerance

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertBlockTolerance swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertBlockTolerance, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <OnFlag>)

Boolean value

Specifies whether to use Block Tolerances or General Tolerances on dimensions that do not contain tolerances; true for Block Tolerances

Block Tolerance - Length unit dimensions - Tolerance 1 - Decimals

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol1Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol1Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Integer value

Specifies number of decimal places for first tolerance

Block Tolerance - Length unit dimensions - Tolerance 1 - Value

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol1Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol1Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in mm

Specifies symmetric plus or minus tolerance for first tolerance

Block Tolerance - Length unit dimensions - Tolerance 2 - Decimals

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol2Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol2Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Integer value

Specifies number of decimal places for second tolerance

Block Tolerance - Length unit dimensions - Tolerance 2 - Value

ModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol2Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol2Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in mm

Specifies symmetric plus or minus tolerance for second tolerance

Block Tolerance - Length unit dimensions - Tolerance 3 - Decimals

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol3Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol3Decimals, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Integer value

Specifies number of decimal places for third tolerance

Block Tolerance - Length unit dimensions - Tolerance 3 - Value

ModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol3Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol3Value, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in mm

Specifies symmetric plus or minus tolerance for third tolerance

Angular unit dimensions - Tolerance

ModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertAngularUnitTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertAngularUnitTolValue, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in degrees

Specifies the tolerance value to use for all angular dimensions

General tolerance - Tolerance class

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertGeneralToleranceClass, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertGeneralToleranceClass, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDimXpertGeneralTolClass_e.<Value>)

See swDimXpertGeneralTolClass_e for valid options

Specifies the part tolerance class

General tolerance - Load custom table from

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDimXpertGeneralToleranceCustomTable, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

String value

Specifies the full path name of the custom table to load; non-empty value only for Parts and when Tolerance class is set to swDimXpertGeneralTolClass_Custom1 or swDimXpertGeneralTolClass_Custom2
