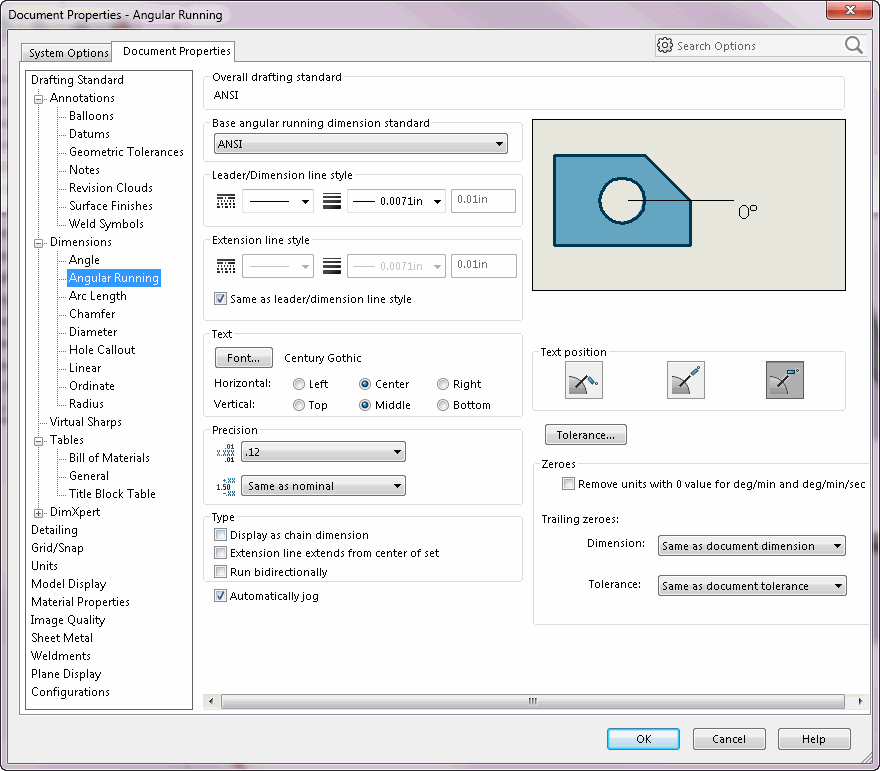

Document Properties > Dimensions > Angular Running



Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comments

Base angular running dimension standard

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swDetailingStandard_e.<Value>)

See swDetailingStandard_e for valid options

Specifies the base angular running dimensioning standard to use

Leader/Dimension Line Style - Leader Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDimensionsStyle, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDimensionsStyle, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swLineStyles_e.<Value>)

See swLineStyles_e for valid options

Specifies style of leader lines for angular running dimensions

Leader/Dimension Line Style - Leader Thickness

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDimensionsThickness, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDimensionsThickness, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swLineWeights_e.<Value>)

See swLineWeights_e for valid options

Specifies thickness of leader lines for angular running dimensions

Leader/Dimension Line Style - Custom Thickness

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDimensionsThicknessCustom, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDimensionsThicknessCustom, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>)



Double value

Specifies a custom thickness for leader lines in angular running dimensions; sets Custom Thickness to the specified thickness and Leader Thickness to Custom Size

Extension Line Style - Extension Line Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDimensionsExtensionLineStyle, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDimensionsExtensionLineStyle, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swLineStyles_e.<Value>)

See swLineStyles_e for valid options

Specifies style of extension lines for angular running dimensions

Extension Line Style - Extension Line Thickness

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDimensionsExtensionLineStyleThickness, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDimensionsExtensionLineStyleThickness, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swLineWeights_e.<Value>)

See swLineWeights_e for valid options

Specifies thickness of extension lines for angular running dimensions

Extension Line Style - Custom Thickness

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDimensionsExtensionLineStyleThicknessCustom, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDimensionsExtensionLineStyleThicknessCustom, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>)

Double value

Specifies a custom thickness for extension lines in angular running dimensions; sets Custom Thickness to the specified thickness and Extension Line Thickness to Custom Size

Extension Line Style - Same as leader/dimension line style

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDimensionsExtensionLineStyleSameAsLeader, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDimensionsExtensionLineStyleSameAsLeader, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <OnFlag>)



Boolean value

Specifies whether the extension line style is the same as the leader/dimension line style

Text - Font...

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDimensionTextFormat, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDimensionTextFormat, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Text - Horizontal

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAlignmentHorizontal, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAlignmentHorizontal, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swTextJustification_e.<Value>)

See swTextJustification_e for valid options



Text - Vertical

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAlignmentVertical, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAlignmentVertical, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swTextAlignmentVertical_e.<Value>)

See swTextAlignmentVertical_e for valid options



Precision - Unit Precision

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLinearDimPrecision, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLinearDimPrecision, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>)

Number of decimal places to display; 0 through 8

Specifies primary precision for linear dimension

Precision - Tolerance Precision

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLinearTolPrecision, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLinearTolPrecision, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swDimensionPrecisionSettings_e .<Value>)

See swDimensionPrecisionSettings_e for valid options

Specifies primary precision for tolerance

Type - Display as chain dimension

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningDisplayAsChain, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningDisplayAsChain, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <OnFlag>)

Boolean value

Specifies whether to display angular running dimensions as chain dimensions

Type - Extension line extends from center of set

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningExtensionLineExtend, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningExtensionLineExtend, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <OnFlag>)

Boolean value

Specifies whether to extend the angular running dimension extension line from center of set

Type - Run bidirectionally

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningRunBidirectionally, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAngularRunningRunBidirectionally, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <OnFlag>)

Boolean value

Specifies whether to display bidirectional angular running dimensions

Automatically jog

ModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDimsAutoJogAngularRunning, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDimsAutoJogAngularRunning, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <OnFlag>)

Boolean value

Specifies whether to automatically jog angular running dimensions

Tolerance...

See Comments

See Comments

See Dimension Tolerance

Layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <Value>)

Valid Options:

  • "Border"

  • "Dimensions"

  • "Notes"

  • "BOM"

  • "FORMAT"

This setting is available only on drawings; depending on drawing, some options may not apply

Text position

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAndLeaderStyle, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionTextAndLeaderStyle, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swDisplayDimensionLeaderText_e.<Value>)

See swDisplayDimensionLeaderText_e for valid options

Specifies how to display angular running dimension text


Zeroes - Remove units with 0 value for deg/min and deg/min/sec

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAndDimensionsRemoveInsignificantZeros, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingAndDimensionsRemoveInsignificantZeros, swUserPreferenceOption_e.swDetailingAngularRunningDimension, <OnFlag>)


Boolean value

Specifies whether to hide angular running  dimension units when equal to 0 deg/min or 0 deg/min/sec

Zeroes - Trailing zeroes - Dimension

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingAngularRunningTrailingZero, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingAngularRunningTrailingZero, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swDetailingDimTrailingZero_e.<Value>)

Valid options in swDetailingDimTrailingZero_e:

  • swDimShowTrailingZeroes
  • swDimRemoveTrailingZeroes
  • swDimSameAsDocumentDimension




Zeroes - Trailing zeroes - Tolerance

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingAngularRunningTrailingZeroTolerance, swUserPreferenceOption_e.swDetailingAngularRunningDimension)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingAngularRunningTrailingZeroTolerance, swUserPreferenceOption_e.swDetailingAngularRunningDimension, swDetailingDimTrailingZero_e.<Value>)

Valid options in swDetailingDimTrailingZero_e:

  • swDimShowTrailingZeroes
  • swDimRemoveTrailingZeroes
  • swDimRemoveOnlyOnZero
  • swDimSameAsDocumentTolerance
