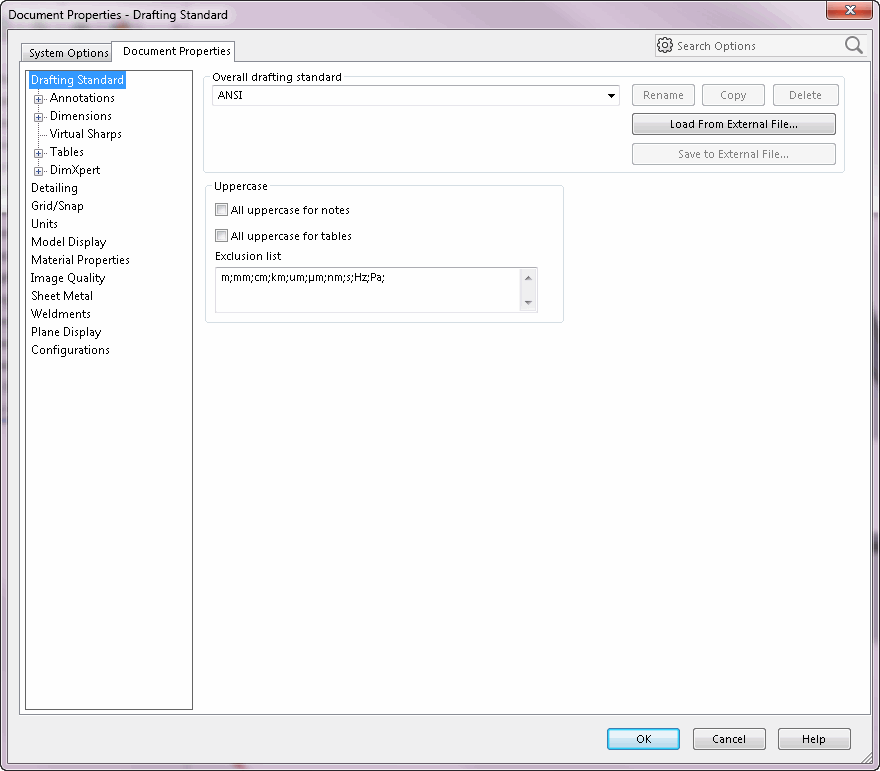

Document Properties > Drafting Standard



Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comments

Overall drafting standard

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingStandard_e.<Value>)

See swDetailingStandard_e for valid options

Specifies the base drafting standard to use



Uppercase - All uppercase for notes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDraftingStandardUppercase, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDraftingStandardUppercase, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <OnFlag>)

Boolean value

Specifies whether to set the drafting standard to all uppercase for notes

Uppercase - All uppercase for tables

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDraftingStandardAllUppercaseForTable, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDraftingStandardAllUppercaseForTable, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <OnFlag>)

Boolean value

Specifies whether to set the drafting standard to all uppercase for tables

Uppercase - Exclusion list

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDraftStandardExclusionList, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDraftStandardExclusionList, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

String value

Specifies the list of strings to exclude from making uppercase
