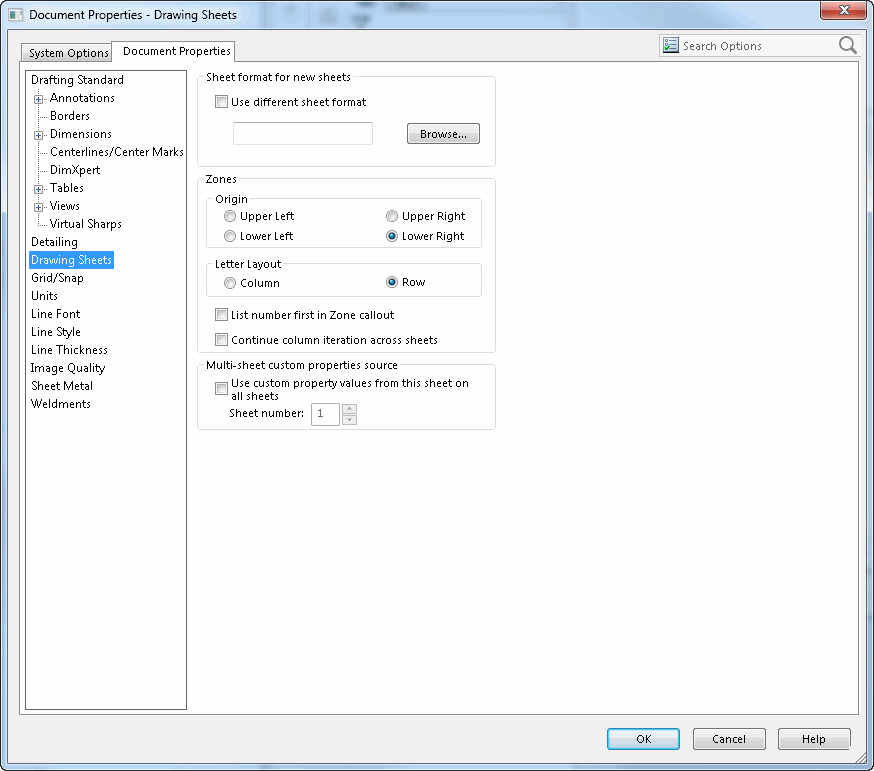

Document Properties > Drawing Sheets



Setting

Get/Set Methods

Return Value or <Value>

Comments

Sheet format for new sheets - Use different sheet format

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetUseDifferentSheetFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetUseDifferentSheetFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to use a different sheet format



Sheet format for new sheets - Sheet format file location

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swFileLocationsNewSheetFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swFileLocationsNewSheetFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

String value

Specifies the location of the sheet format file to use


Zones - Origin

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDrawingSheetsZonesOrigin, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDrawingSheetsZonesOrigin, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDrawingSheetsZonesOrigin_e.<Value>)


See swDrawingSheetsZonesOrigin_e for valid options

Specifies the corner where the lowest letters and numbers start on the drawing sheet

Zones - Letter Layout

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetsZonesLetterLayout, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetsZonesLetterLayout, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDrawingSheetsZonesLetterLayout_e.<Value>)


See swDrawingSheetsZonesLetterLayout_e for valid options

Specifies where the letters and numbers appear on the drawing sheet

Zones - List number first in Zone callout

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetsListNumFirstInZoneCallout, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetsListNumFirstInZoneCallout, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>


Boolean value

Specifies whether to list letter or number as first character in zone callouts:
  • Letter first (A1, B3, C4, etc.); default
  • Number first (1A, 3B, 4C, etc.)

Zones - Continue column iteration across sheets

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetsContinueColumnIteration, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetsContinueColumnIteration, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)


Boolean value

Specifies whether to restart columns or rows (default) across drawing sheets; (i.e., A, B, C, etc.)

Multi-sheet custom properties source - Use custom property values from this sheet on all sheets

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetsMatchCustomPropVals, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetsMatchCustomPropVals, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to use custom property values from this sheet on all sheets

Multi-sheet custom properties source - Sheet number

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDrawingSheetCustomPropSheetNo, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDrawingSheetCustomPropSheetNo, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Integer value

Sheet number
