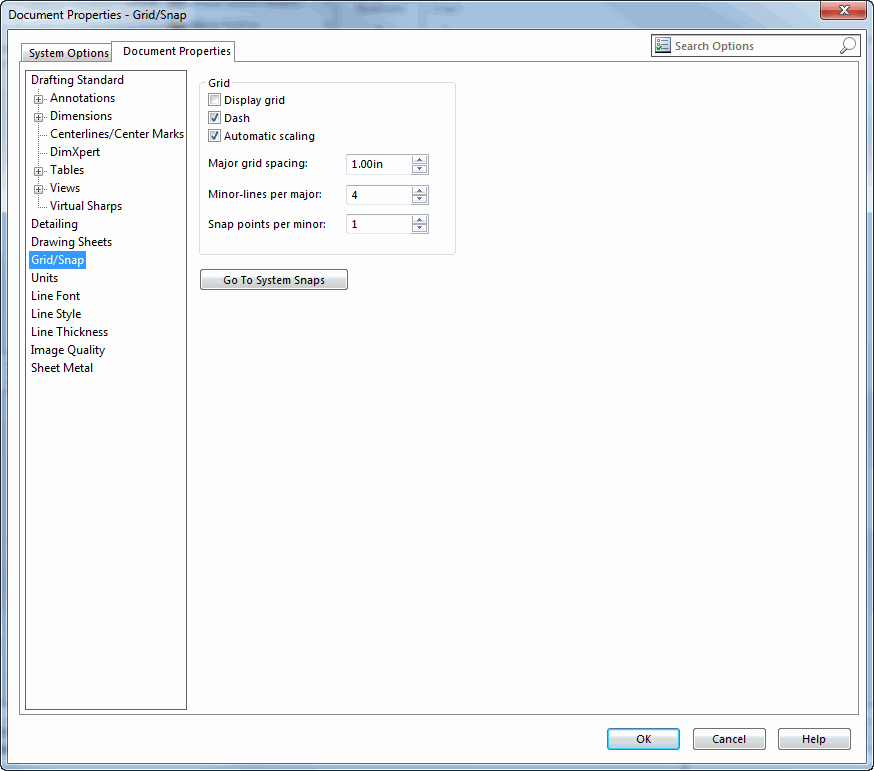

Document Properties > Grip/Snap





Setting

Get/Set Methods

Return Value or <Value>

Comments

Display grid

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swGridDisplay, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swGridDisplay, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display sketch grid

Dash

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swGridDisplayDashed, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swGridDisplayDashed, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to use solid or dashed grid lines; does not affect current document; only affects future documents

Automatic scaling

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swGridAutomaticScaling, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swGridAutomaticScaling, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to automatically adjust display of grid when zooming in and out

Major grid spacing

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swGridMajorSpacing, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swGridMajorSpacing, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in meters

Specifies space between major grid lines

Minor-lines per major

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swGridMinorLinesPerMajor, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swGridMinorLinesPerMajor, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Integer value

Specifies the number of minor grid lines between major grid lines

Snap points per minor

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSnapPointsPerMinor, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSnapPointsPerMinor, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Integer value

Specifies the number of snap points between minor grid lines
