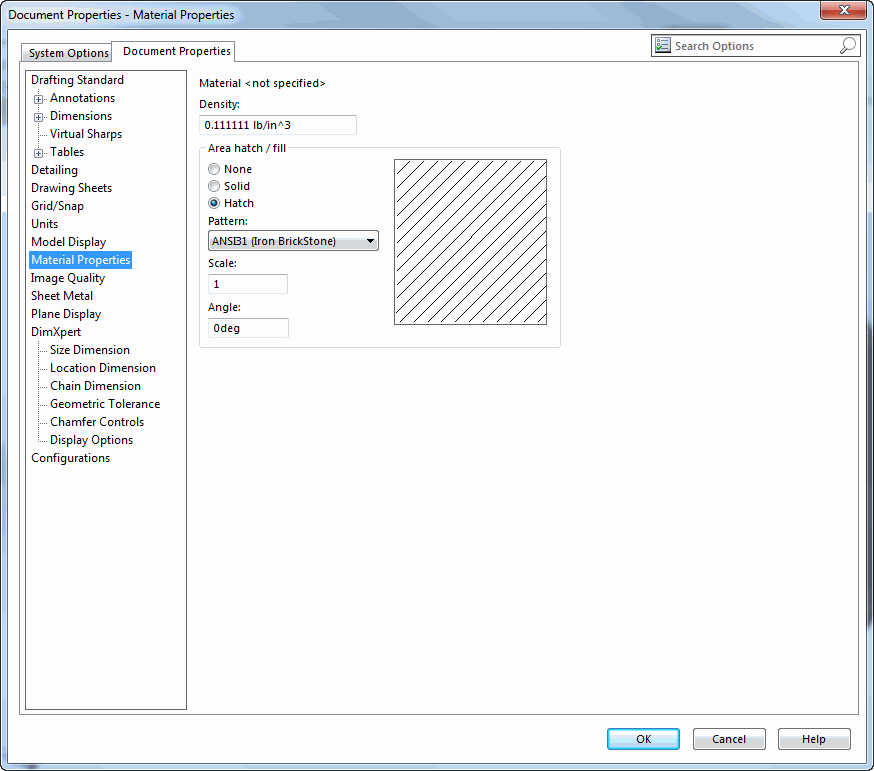

Document Properties > Material Properties





Setting

Get/Set Methods

Return Value or <Value>

Comments

Density

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swMaterialPropertyDensity, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swMaterialPropertyDensity, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value in kg/m^3

For parts only; specifies material density

Area Hatch/Fill - Style

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swMaterialPropertyAreaHatchFillStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swMaterialPropertyAreaHatchFillStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swAreaHatchFillStyle_e.<Value>)

See swAreaHatchFillStyle_e for valid options



Area Hatch/Fill - Pattern

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swMaterialPropertyCrosshatchPattern, swuserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swMaterialPropertyCrosshatchPattern, swuserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

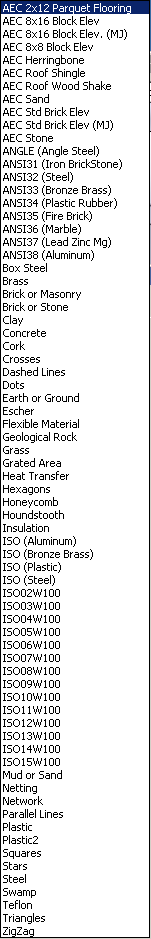

Valid string values:



For parts only; for hatch style only

Area Hatch/Fill - Scale

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swMaterialPropertyCrosshatchScale, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swMaterialPropertyCrosshatchScale, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

For parts only; for hatch style only; specifies value by which to scale crosshatch

Area Hatch/Fill - Angle

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swMaterialPropertyCrosshatchAngle, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swMaterialPropertyCrosshatchAngle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

For parts only; for hatch style only; specifies angle for crosshatch
