Hide Table of Contents

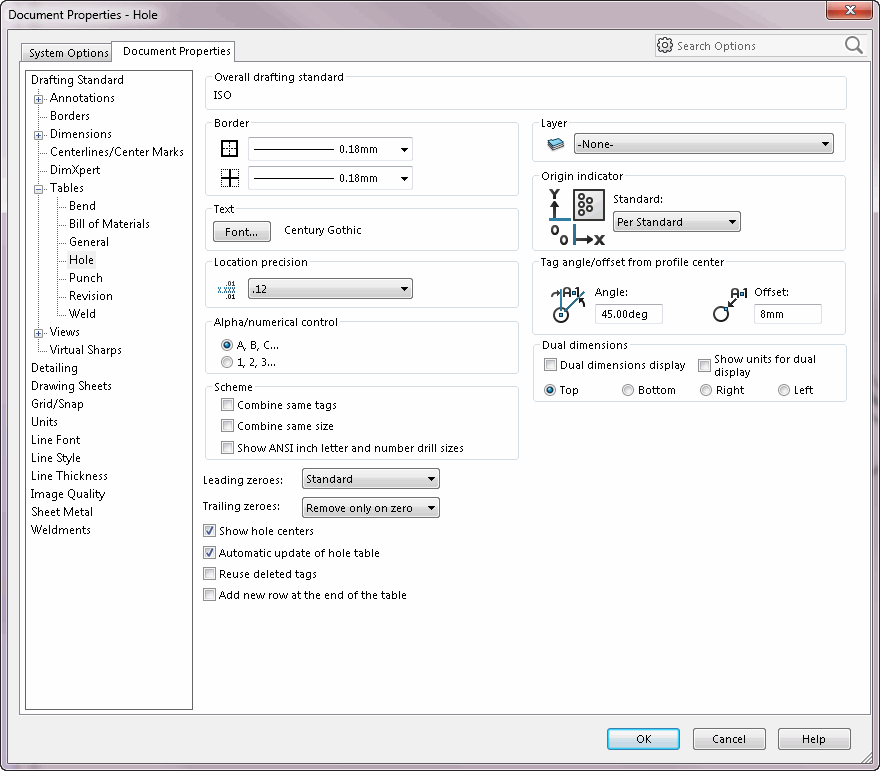

Document Properties > Tables > Hole



NOTE: Setting any of the following hole table values means that new holes tables added to the drawing use these default values. However, a hole table that uses a template table for insertion might not use these default values because the template table contains certain properties that take precedence over these default values. These properties include the tag style, precision values, combine tag, combine same size, and hole centers visible values.


Setting

Get/Set Methods

Return Value or <Value>

Comments

Border - Box Border

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingHoleTableBorderLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingHoleTableBorderLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)

See swLineWeights_e for valid options



Border - Grid Border

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingHoleTableGridLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingHoleTableGridLineWeight, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLineWeights_e.<Value>)

See swLineWeights_e for valid options



Text - Font...

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingHoleTableTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingHoleTableTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Location precision - Unit Precision

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swHoleTableHoleLocationPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swHoleTableHoleLocationPrecision, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Integer value

Specifies the number of digits of precision to display in the X and Y hole location columns in the hole table; specify a value from 0 through 8

When setting this value, existing hole tables in the drawing are updated to use this precision

Alpha/numerical control

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swHoleTableTagStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swHoleTableTagStyle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swHoleTableTagStyle_e.<Value>)

See swHoleTableTagStyle_e for valid options

Specifies whether or not the hole tags are alphanumeric or numeric

Scheme - Combine same tags

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableCombineTags, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableCombineTags, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

If true, then holes of the same size are assigned the same tag, and the hole table contains a Quantity column, which indicates multiple holes of the same size exist

Scheme -Combine same size

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableCombineSameSize, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableCombineSameSize, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

If true, then holes are the same size, and their cells in the Size column are merged and appear as a single cell

Scheme - Show ANSI inch letter and number drill sizes

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableShowAnsiInchSize, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableShowAnsiInchSize, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

If true, then display ANSI inch hole sizes in hole tables using letters or numbers

Leading zeroes

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLeadingZero, swUserPreferenceOption_e.swDetailingHoleTable)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLeadingZero, swUserPreferenceOption_e.swDetailingHoleTable, swDetailingLeadingZero_e.<Value>)

See swDetailingLeadingZero_e for valid options



Trailing zeroes

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimTrailingZero, swUserPreferenceOption_e.swDetailingHoleTable)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimTrailingZero, swUserPreferenceOption_e.swDetailingHoleTable, swDetailingDimTrailingZero_e.<Value>)

Valid options in swDetailingDimTrailingZero_e:

  • swDimShowTrailingZeroes
  • swDimRemoveTrailingZeroes
  • swDimRemoveOnlyOnZero
  • swDimSameAsSource



Show hole centers

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableHoleCentersVisible, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableHoleCentersVisible, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

If true, then the hole centers are indicated by points

Automatic update of hole table

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableAutomaticUpdate, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableAutomaticUpdate, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

If true, then the hole table is automatically updated when the model changes; when you set this value, existing holes tables in the drawing are updated

Reuse deleted tags

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableReuseDeleted, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableReuseDeleted, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

If true, then deleted tags can be reused

Add new row at the end of the table

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableAddNewAtEnd, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swHoleTableAddNewAtEnd, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

If true, then new rows are added to the end of the table

Layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingHoleTable)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingHoleTable, <Value>)

Valid options:

  • "Border"

  • "Dimensions"

  • "Notes"

  • "BOM"

  • "FORMAT"

  • "None"

This setting is available only on drawings; depending on drawing, some options may not apply

Origin indicator

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swHoleTableOriginStandard, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swHoleTableOriginStandard, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingStandard_e.<Value>)

See swDetailingStandard_e for valid options

Specifies the detailing standard to use for displaying the hole table's origin symbol

If you specify -1 or 0, then the origin symbol is displayed according to the default document detailing standard; otherwise, the value is from swDetailingStandard_e and the hole table's origin is displayed according to that standard

When setting this value, any existing hole tables in the drawing are updated to use this dimensioning standard

To determine the default document detailing standard, get the value of the document's integer user preference swDetailingDimensionStardard

Tag angle/offset from profile center - Angle

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swHoleTableTagAngle, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swHoleTableTagAngle, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

The origin of the hole tag text is at this angle, in radians, clockwise from the Y axis at the distance specified by swHoleTableTagOffset (see the next enumeration); the angle must be between -360° and 360°

Tag angle/offset from profile center - Offset

IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swHoleTableTagOffset, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swHoleTableTagOffset, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Double value

The origin of the hole tag text is this distance from the hole at the angle specified by swHoleTableTagAngle (see previous enumeration); the offset must be > 0

Dual dimensions - Dual dimensions display

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTableHoleDualDimensionDisplay, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTableHoleDualDimensionDisplay, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display dual dimensions

Dual dimensions - Show units for dual display

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTableHoleShowUnitsForDualDisplay, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTableHoleShowUnitsForDualDisplay, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display units for dual dimensions

Dual dimensions - Position

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swTableHoleDualDimensionPos, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swTableHoleDualDimensionPos, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See swDetailingDualDimPosition_e for valid options

Specifies the position of hole table dual dimensions
