Document Properties > Views > Orthographic

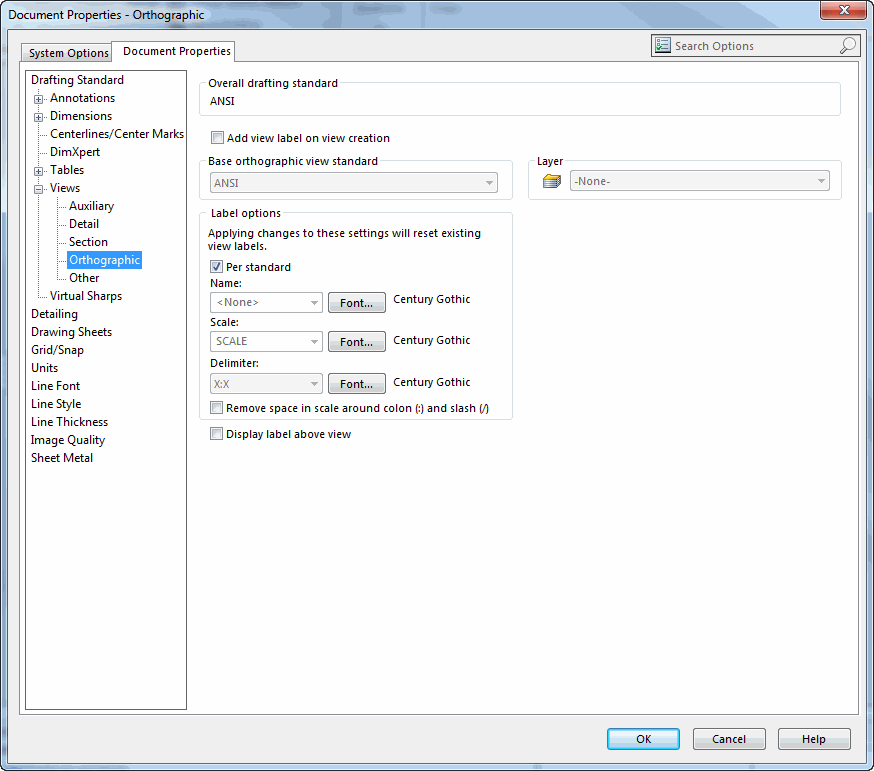

This topic contains two tables. The information in the table:

  • appearing immediately after the screen capture of the Document Properties - Orthographic dialog corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the Document Properties - Orthographic dialog, but are now obsolete and no longer appear on that dialog.





Setting

Get/Set Methods

Return Value or <Value>

Comments

Add view label on creation

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_AddViewLabelOnViewCreation, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_AddViewLabelOnViewCreation, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to add a view label when a view is created

Base orthographic view standard

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingOrthoView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingOrthoView, swDetailingStandard_e.<Value>)

See swDetailingStandard_e for valid options

Specifies the base orthographic view standard to use

Label options - Per standard

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoViewLabels_PerStandard, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoViewLabels_PerStandard, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

If...

Then display the orthographic view label according to the format...

True

Required by the current detailing standard

False

Determined by these document-level user preferences:

swDetailingOrthoView_Name

swDetailingOrthoViewLabels_Scale

swDetailingOrthoViewLabels_Delimiter

Label options - Name

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoView_Name, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoView_Name, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsName_e.<Value>)

See swDetailingViewLabelsName_e for valid options

Specifies the label to use in front of the orthographic view; if set to swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom, then set Label options - Name (CUSTOM) to a custom label

Label options - Name (CUSTOM)

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingOrthoView_CustomName, swUserPreferenceOption_e.swDetailingSectionView)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingOrthoView_CustomName, swUserPreferenceOption_e.swDetailingSectionView, <Value>)

String value

Specifies the custom label to use in front of the orthographic view; valid only if Label options - Name is set to swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom

Label options - Name - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_NameTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_NameTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Label options - Scale

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Scale, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Scale, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsScale_e.<Value>)

See swDetailingViewLabelsScale_e for valid options

Specifies the label to use in front of the scale value; if set to swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom, then set Label options - Scale (CUSTOM) to a custom scale label

Label options - Scale (CUSTOM)

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingOrthoView_CustomScale, swUserPreferenceOption_e.swDetailingSectionView)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingOrthoView_CustomScale, swUserPreferenceOption_e.swDetailingSectionView, <Value>)

String value

Specifies the custom label to use in front of the scale value; valid only if Label options - Scale is set to swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom

Label options - Scale - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_ScaleTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_ScaleTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Label options - Delimiter

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Delimiter, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingOrthoViewLabels_Delimiter, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingViewLabelsDelimiter_e .<Value>)

See swDetailingViewLabelsDelimiter_e for valid options

Specifies the format of the scale value

Label options - Delimiter - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_DelimiterTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingOrthoView_DelimiterTextFormat, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the API set method

Label options - Remove space in scale around colon (:) and slash (/)

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_RemoveSpaceInScale, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_RemoveSpaceInScale, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to remove spaces around the delimiter in the scale text

Display label above view

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_DisplayLabelAboveView, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingOrthoView_DisplayLabelAboveView, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)

Boolean value

Specifies whether to display the label above the orthographic view

Layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingOrthoView)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingOrthoView, <Value>)

Valid Options:

  • "BORDER"

  • "CENTER"

  • "CONTINUOUS"

  • "DIM"

  • "FORMAT"

  • "HIDDEN"

  • "RED"

  • "TEXT"

  • "THIN"

This setting is available only on drawings; depending on drawing, some options may not apply

Obsolete Enumerators

Enumerator

Comment

swDetailingOrthoViewLabelsEnableShow

Obsolete; specified whether to display the scale label in the orthographic view if the view scale differs from the sheet scale
