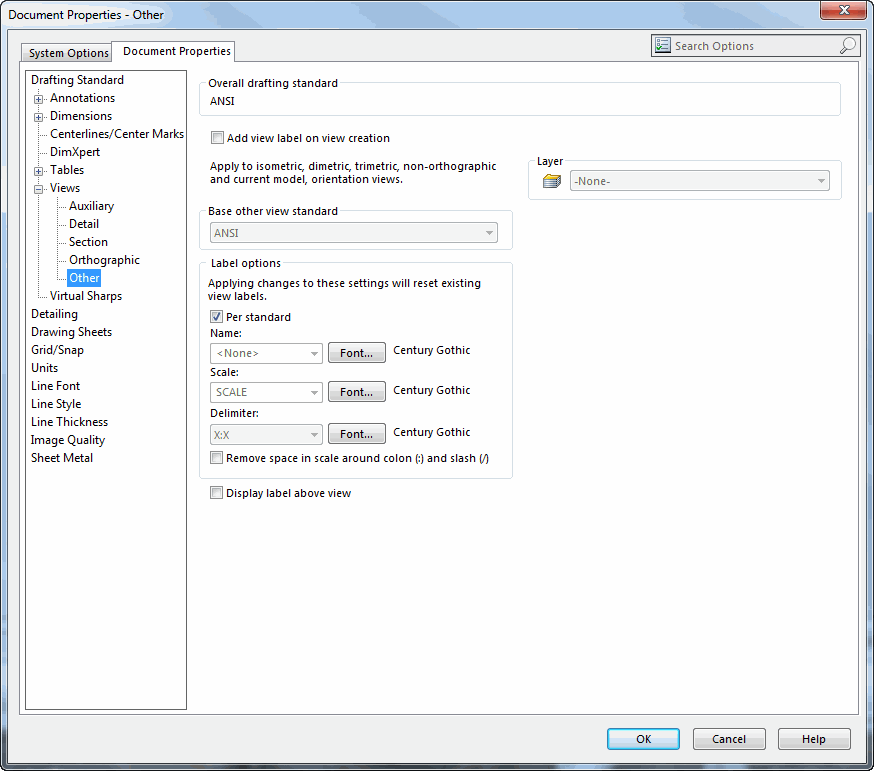

Document Properties > Views > Other



Setting

Get/Set Methods

Return Value or <Value>

Comments

Add view label on view creation

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_AddViewLabelOnViewCreation, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_AddViewLabelOnViewCreation, swUserPreferenceOption_e.swDetailingMiscView, <Value>)

Boolean value

Specifies whether to add a view label when the view is created

Base other view standard

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard, swUserPreferenceOption_e.swDetailingMiscView, swDetailingStandard_e.<Value>)

See swDetailingStandard_e for valid options

Specifies the base miscellaneous view standard to use

Label options - Per standard

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_PerStandard, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_PerStandard, swUserPreferenceOption_e.swDetailingMiscView, <Value>)

Boolean value

If...

Then display the miscellaneous view label according to the format...

True

Required by the current detailing standard

False

Determined by these document-level user preferences:

swDetailingMiscView_Name

swDetailingMiscView_Scale

swDetailingMiscView_Delimiter

Label options - Name

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Name, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Name, swUserPreferenceOption_e.swDetailingMiscView, swDetailingViewLabelsName_e.<Value>)

See swDetailingViewLabelsName_e for valid options

Specifies the label to use in front of the miscellaneous view; if set to swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom, then set Label options - Name (CUSTOM) to a custom label

Label options - Name (CUSTOM)

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingMiscView_CustomName, swUserPreferenceOption_e.swDetailingSectionView)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingMiscView_CustomName, swUserPreferenceOption_e.swDetailingMiscView, <Value>)

String value

Specifies the custom label to use in front of the miscellaneous view; valid only if Label options - Name is set to swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom

Label options - Name - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_NameTextFormat, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_NameTextFormat, swUserPreferenceOption_e.swDetailingMiscView, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method

Label options - Scale

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Scale, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Scale, swUserPreferenceOption_e.swDetailingMiscView, swDetailingViewLabelsScale_e.<Value>)

See swDetailingViewLabelsScale_e for valid options

Specifies the label to use in front of the scale value; if set to swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom, then set Label options - Scale (CUSTOM) to a custom scale label

Label options - Scale (CUSTOM)

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingMiscView_CustomScale, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingMiscView_CustomScale, swUserPreferenceOption_e.swDetailingMiscView, <Value>)

String value

Specifies the custom label to use in front of the scale value; valid only if Label options - Scale is set to swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom

Label options - Scale - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_ScaleTextFormat, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_ScaleTextFormat, swUserPreferenceOption_e.swDetailingMiscView, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method

Label options - Delimiter

IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Delimiter, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingMiscView_Delimiter, swUserPreferenceOption_e.swDetailingMiscView, swDetailingViewLabelsDelimiter_e .<Value>)

See swDetailingViewLabelsDelimiter_e for valid options

Specifies the format of the scale value

Label options -  Delimiter - Font

IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_DelimiterTextFormat, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingMiscView_DelimiterTextFormat, swUserPreferenceOption_e.swDetailingMiscView, <Value>)

See ITextFormat for font options

To set font property values, implement ITextFormat, set the appropriate ITextFormat member values, and pass the ITextFormat object in the set method

Label options - Remove space in scale around colon (:) and slash (/)

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_RemoveSpaceInScale, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_RemoveSpaceInScale, swUserPreferenceOption_e.swDetailingMiscView, <Value>)

Boolean value

Specifies whether to remove extra spaces around the delimiter in the scale text

Display label above view

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_DisplayLabelAboveView, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingMiscView_DisplayLabelAboveView, swUserPreferenceOption_e.swDetailingMiscView, <Value>)

Boolean value

Specifies whether to show the label above the miscellaneous view

Layer

IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingMiscView)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer, swUserPreferenceOption_e.swDetailingMiscView, <Value>)

Valid Options:

  • "Border"

  • "Dimensions"

  • "Notes"

  • "BOM"

  • "FORMAT"

This setting is available only on drawings; depending on the drawing, some options may not apply
