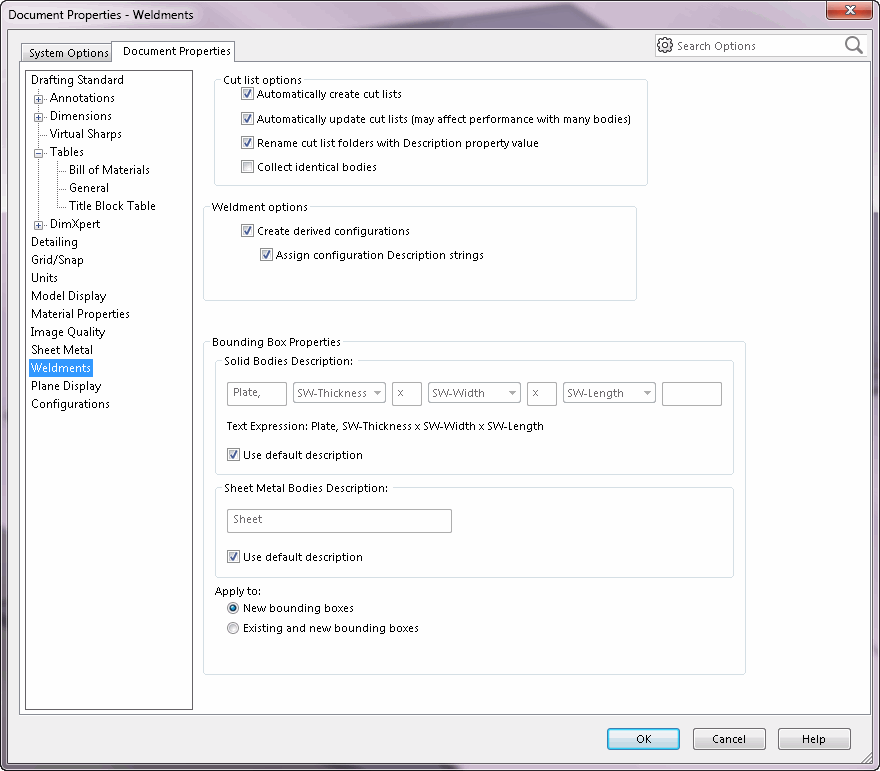

Document Properties >Weldments



Setting

Get/Set Methods

Return Value or <Value> or <OnFlag>

Comments

Cut list options - Automatically create cut lists

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticCutList)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticCutList, <OnFlag>)

Boolean value

Specifies whether to automatically create cut lists

Cut list options - Automatically update cut lists (may affect performance with many bodies)

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticUpdate)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticUpdate, <OnFlag>)


Boolean value

Specifies whether to automatically update cut lists

Cut list options - Rename cut list folders with Description property value

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentRenameCutlistDescriptionPropertyValue)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentRenameCutlistDescriptionPropertyValue, <OnFlag>)


Boolean value

Specifies whether to automatically rename cut list folders using the Description property value

Cut list options - Collect identical bodies

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentCollectIdenticalBodies)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentCollectIdenticalBodies, <OnFlag>)

Boolean value

Specifies whether to collect identical bodies


Weldment options - Create derived configurations

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableDerivedConfigurations)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableDerivedConfigurations, <OnFlag>)


Boolean value

Specifies whether to create derived configurations; affects newly added configurations only

Weldment options - Assign configuration Description strings

IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableWeldmentConfigStrings)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableWeldmentConfigStrings, <OnFlag>)


Boolean value

Specifies whether to assign configuration Description strings; swDisableDerivedConfigurations must be true for this setting to be applicable


Bounding Box Properties - Solid Bodies Description - Prefix



IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionPrefix, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionPrefix, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)



String value



Valid only if Solid Bodies Description - Use default description is set to true



Bounding Box Properties - Solid Bodies Description - First property



IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionFirstPropertyIndex, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionFirstPropertyIndex, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swSolidBodiesDescriptionPropertyIndex.<Value>)



Integer value as defined in swSolidBodiesDescriptionPropertyIndex



Valid only if Solid Bodies Description - Use default description is set to true



Bounding Box Properties - Solid Bodies Description - First separator



IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionFirstSeparator, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionFirstSeparator, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)



String value



Valid only if Solid Bodies Description - Use default description is set to true



Bounding Box Properties - Solid Bodies Description - Second property



IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionSecondPropertyIndex, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionSecondPropertyIndex, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swSolidBodiesDescriptionPropertyIndex.<Value>)



Integer value as defined in swSolidBodiesDescriptionPropertyIndex



Valid only if Solid Bodies Description - Use default description is set to true



Bounding Box Properties - Solid Bodies Description - Second separator



IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionSecondSeparator, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionSecondSeparator, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)



String value



Valid only if Solid Bodies Description - Use default description is set to true



Bounding Box Properties - Solid Bodies Description - Third property



IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionThirdPropertyIndex, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionThirdPropertyIndex, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swSolidBodiesDescriptionPropertyIndex.<Value>)



Integer value as defined in swSolidBodiesDescriptionPropertyIndex



Valid only if Solid Bodies Description - Use default description is set to true



Bounding Box Properties - Solid Bodies Description - Suffix



IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionSuffix, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionSuffix, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)



String value



Valid only if Solid Bodies Description - Use default description is set to true



Bounding Box Properties - Solid Bodies Description - Use default description



IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSolidBBoxDescriptionUseDefault)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSolidBBoxDescriptionUseDefault, <OnFlag>)



Boolean value







Bounding Box Properties - Sheet Metal Bodies Description - Description



IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swSheetMetalDescription, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swSheetMetalDescription, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)



String value



Valid only if Sheet Metal Bodies Description - Use default description is set to true



Bounding Box Properties - Sheet Metal Bodies Description - Use default description



IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalBodiesDescriptionUseDefault)

IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalBodiesDescriptionUseDefault, <OnFlag>)



Boolean value







Bounding Box Properties - Apply to



IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBBoxDescriptionApplyMethod, swUserPreferenceOption_e.swDetailingNoOptionSpecified)

IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBBoxDescriptionApplyMethod, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBBoxDescriptionApplyMethod_e.<Value>)



Integer value as defined in swBBoxDescriptionApplyMethod_e
