System Options > Import > Inventor/Catia V5/Creo/NX/Solid Edge

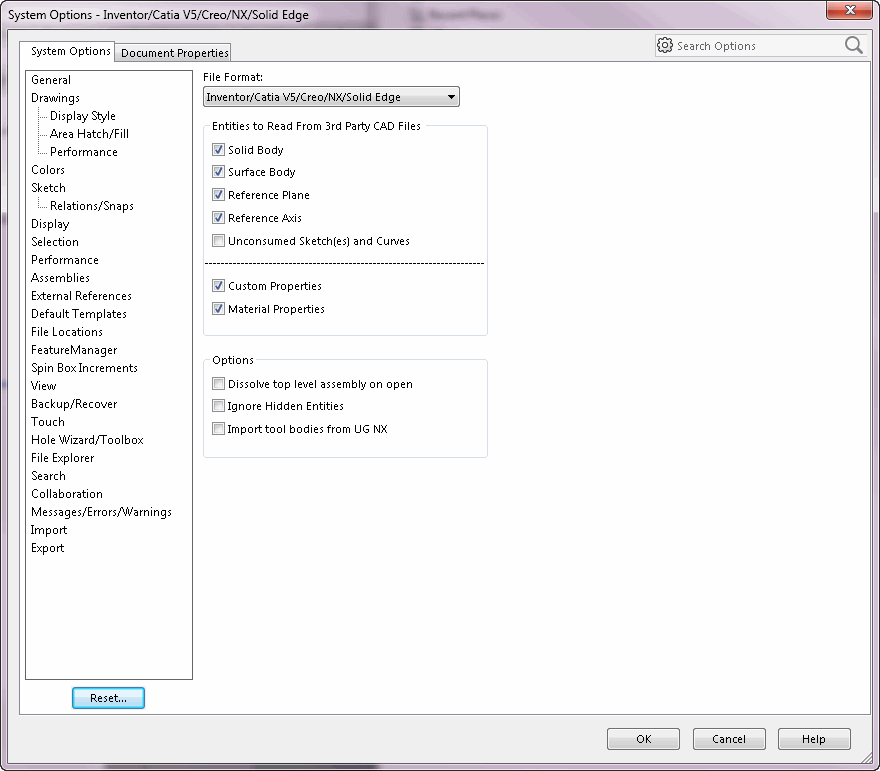

To display the dialog:

Select Tools > Options > System Options > Import > File Format > Inventor/Catia V5/Creo/NX/Solid Edge.

- or -

  1. Click File > Open.
  2. In Files of type, select Inventor (Part or Assembly), Catia V5, ProE/Creo (Part or Assembly), Unigraphics/NX, or Solid Edge (Part or Assembly).
  3. Click Options.



Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Entities to Read From 3rd Party CAD Files - Solid Body

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportSolidBody)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportSolidBody, <OnFlag>)

Boolean value



Entities to Read From 3rd Party CAD Files - Surface Body

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportSurfaceBody)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportSurfaceBody, <OnFlag>)

Boolean value



Entities to Read From 3rd Party CAD Files - Reference Plane

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportReferencePlane)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportReferencePlane, <OnFlag>)

Boolean value



Entities to Read From 3rd Party CAD Files - Reference Axis

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportReferenceAxis)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportReferenceAxis, <OnFlag>)



Boolean value



Entities to Read From 3rd Party CAD Files - Unconsumed Sketch(es) and Curves

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportUnconsumedSketchesAndCurves)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportUnconsumedSketchesAndCurves, <OnFlag>)

Boolean value





Entities to Read From 3rd Party CAD Files - Custom Properties

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportCustomProperties)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportCustomProperties, <OnFlag>)

Boolean value





Entities to Read From 3rd Party CAD Files - Material Properties

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportMaterialProperties)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportMaterialProperties, <OnFlag>)

Boolean value





Options - Dissolve top level assembly on open

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportDissolveTopLevelAssemblyOnOpen)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportDissolveTopLevelAssemblyOnOpen, <OnFlag>)

Boolean value





Options - Ignore Hidden Entities

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportIgnoreHiddenEntities)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportIgnoreHiddenEntities, <OnFlag>)

Boolean value





Options - Import tool bodies from UG NX

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportToolBodiesFromUGNX)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportToolBodiesFromUGNX, <OnFlag>)

Boolean value
