System Options > Import > STEP/IGES/ACIS

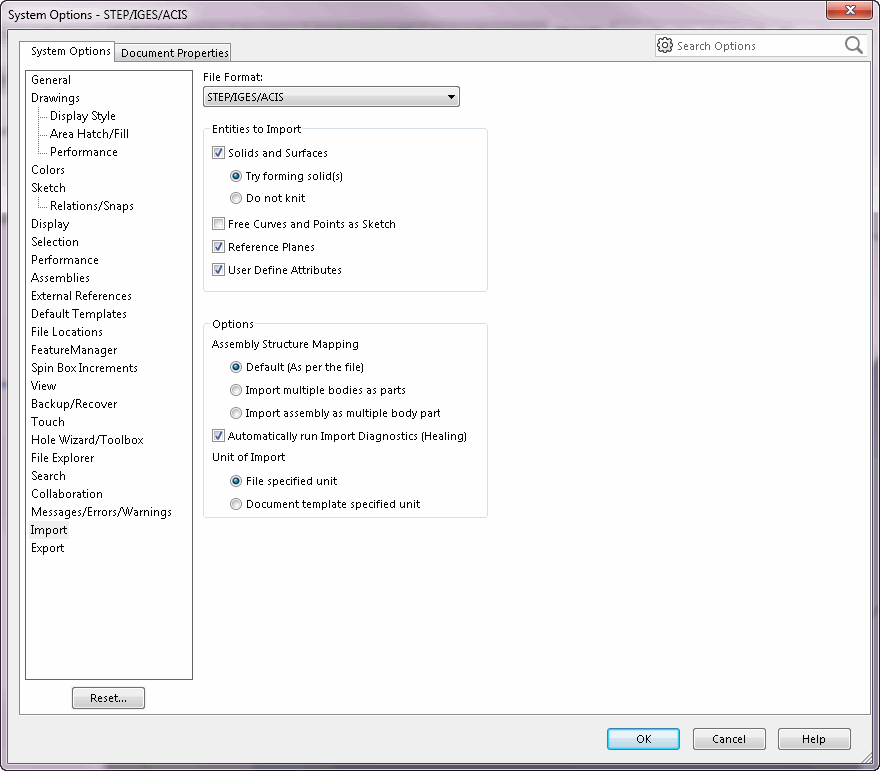

To display the dialog:

Select Tools > Options > System Options > Import > File Format > STEP/IGES/ACIS.

- or -

  1. Select File > Open.
  2. In Files of type, select IGES, ACIS, or STEP AP203/214/242.
  3. Click Options.



Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Entities to Import - Solids and Surfaces

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportNeutral_SolidandSurface)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportNeutral_SolidandSurface, <OnFlag>)

Boolean value



Entities to Import - Try forming solid(s) or Do not knit

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportNeutral_KnitOption)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportNeutral_KnitOption, swImportNeutralKnitOption_e.<Value>)

Integer value as defined in swImportNeutralKnitOption_e

Valid only if Entities to Import - Solids and Surfaces is set to true

Entities to Import - Free Curves and Points as Sketch

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportNeutral_FreeCurvesAndPoints)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportNeutral_FreeCurvesAndPoints, <OnFlag>)

Boolean value



Entities to Import - Reference Planes

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportNeutralReferencePlane)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportNeutralReferencePlane, <OnFlag>)

Boolean value



Entities to Import - User Define Attributes

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportNeutral_AttributesAndProperties)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportNeutral_AttributesAndProperties, <OnFlag>)

Boolean value





Options - Assembly Structure Mapping

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportNeutralAssemblyStructureMapping)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportNeutralAssemblyStructureMapping, swImportNeutralAssemblyStructureMapping_e.<Value>)

Integer value as defined in swImportNeutralAssemblyStructureMapping_e





Options - Automatically run Import Diagnostics (Healing)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportNeutralRunDiagnostics)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportNeutralRunDiagnostics, <OnFlag>)

Boolean value





Options - Unit of Import

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportNeutralUnits)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swImportNeutralUnits, swImportNeutralUnits_e.<Value>)

Integer value as defined in swImportNeutralUnits_e
