File > Page Setup

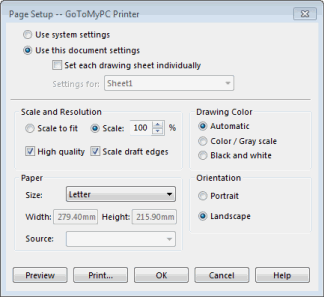

This topic contains two tables. The information in the table:

  • appearing immediately after the screen capture of the Page Setup dialog corresponds to the settings on that dialog.

  • titled Obsolete Enumerators contains enumerators that previously appeared on the Page Setup dialog, but are now obsolete and no longer appear on that dialog.



Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Use system settings

See Comment

See Comment

Not currently available in SOLIDWORKS API

Use this document settings

See Comment

See Comment

Not currently available in SOLIDWORKS API

Set each drawing sheet individually

See Comment

See Comment

Not currently available in SOLIDWORKS API

Settings for

See Comment

See Comment

Not currently available in SOLIDWORKS API

Scale and Resolution  - Scale to fit

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPageSetupDrawingScaleToFit) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPageSetupDrawingScaleToFit, <OnFlag>)

Boolean value

Specifies whether to print drawing sheet to fit paper size; for drawings only; Use system settings on Page Setup dialog must be selected when changing this setting.

Scale and Resolution - Scale

See Comment

See Comment

Not currently available in SOLIDWORKS API

Scale and Resolution - <n>

See Comment

See Comment

Not currently available in SOLIDWORKS API

Scale and Resolution - High Quality

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPageSetupHighQuality) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPageSetupHighQuality, <OnFlag>)

Boolean value

Specifies whether to load all model information into memory; for drawings only


Scale and Resolution - Scale draft edges

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPageSetupScaleDraftEdges) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPageSetupScaleDraftEdges, <OnFlag>)


Boolean value

Specifies whether to scale draft edges; for drawings only

Drawing Color - Automatic

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPageSetupDrawingColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPageSetupDrawingColor, swPageSetupDrawingColor_e.swPageSetup_AutomaticDrawingColor)

swPageSetupDrawingColor_e.swPageSetup_AutomaticDrawingColor

See swPageSetupDrawingColor_e for all valid options

Drawing Color - Color / Gray scale

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPageSetupDrawingColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPageSetupDrawingColor, swPageSetupDrawingColor_e.swPageSetup_ColorGrey)

swPageSetupDrawingColor_e.swPageSetup_ColorGrey)

See swPageSetupDrawingColor_e for all valid options

Drawing Color - Black and white

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPageSetupDrawingColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPageSetupDrawingColor, swPageSetupDrawingColor_e.swPageSetup_BlackAndWhite)

swPageSetupDrawingColor_e.swPageSetup_BlackAndWhite)

See swPageSetupDrawingColor_e for all valid options

Paper - Size

See Comment

See Comment

Defined by the operating system or by a specific printer device; there is no SOLIDWORKS API enumeration for these values

Paper - Source

See Comment

See Comment

Defined by the operating system or by a specific printer device; there is no SOLIDWORKS API enumeration for these values

Orientation - Portrait

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPageSetupPrinterOrientation)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPageSetupPrinterOrientation, swPageSetupOrientation_e.swPageSetupOrient_Portrait)

swPageSetupOrientation_e.swPageSetupOrient_Portrait

See swPageSetupOrientation_e for all valid options

Orientation - Landscape

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPageSetupPrinterOrientation)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPageSetupPrinterOrientation, swPageSetupOrientation_e.swPageSetupOrient_Landscape)

swPageSetupOrientation_e.swPageSetupOrient_Landsacpe

See swPageSetupOrientation_e for all valid options



Obsolete Enumerators

Enumerator

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

swPageSetupPrinterPartAsmPrintWindow

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPageSetupPrinterPartAsmPrintWindow) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPageSetupPrinterPartAsmPrintWindow, <OnFlag>)

Boolean value

Obsolete; for parts and assemblies only; specified whether to print current view of the graphics area; Use system settings on Page Setup dialog must be selected when changing this setting

swPageSetupDrawingScale

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e, swPageSetupDrawingScale)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e, swPageSetupDrawingScale, <Value>)

Double value

Obsolete

swPageSetupPrinterPartAsmScale

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e, swPageSetupPrinterPartAsmScale)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e, swPageSetupPrinterPartAsmScale, <Value>)

Double value

Obsolete
