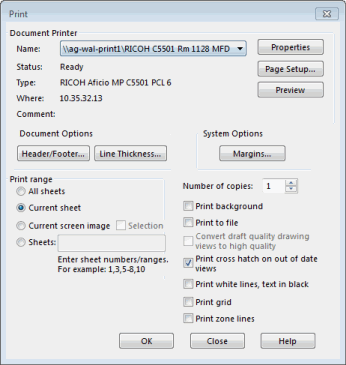

File > Print



Setting

Get/Set Methods

Return Value
or

<Value>
or
<OnFlag>

Comment

Name

See Comment

See Comment

Not currently available in SOLIDWORKS API

Document Options - Header/Footer

See Comment

See Comment

Not currently available in SOLIDWORKS API

Document Options - Line Thickness

See Comment

See Comment



See Document Properties > Line Thickness

System Options - Margins

See Comment



See Comment

See File > Page Setup > Print > System Options > Margins

Print range - Entire model

See Comment

See Comment

Not currently available in SOLIDWORKS API

Print range - Current sheet

See Comment

See Comment

Not currently available in SOLIDWORKS API

Print range - Current screen image

See Comment

See Comment

Not currently available in SOLIDWORKS API

Print range - Sheets

See Comment

See Comment

Not currently available in SOLIDWORKS API

Print range - Sheets - <n>

See Comment

See Comment

Not currently available in SOLIDWORKS API

Number of copies <n>

See Comment

See Comment

Not currently available in SOLIDWORKS API

Print background

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintBackground) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintBackground, <OnFlag>)

Boolean value

Specifies whether to print the window background, in addition to the model and drawing

Print to file

See Comment

See Comment

Not currently available in SOLIDWORKS API

Convert draft quality drawing views to high quality

See Comment

See Comment

Not currently available in SOLIDWORKS API

Print cross hatch on out of date views

See Comment

See Comment

Not currently available in SOLIDWORKS API

Print white lines, text in black See Comment See Comment

Not currently available in SOLIDWORKS API

Print grid ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintGrid) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintGrid, <OnFlag>) Boolean value Specifies whether to print the grid
Print zone lines ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintZoneLines) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPrintZoneLines, <OnFlag>) Boolean value Specifies whether to print zone lines
