File > Save As







Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

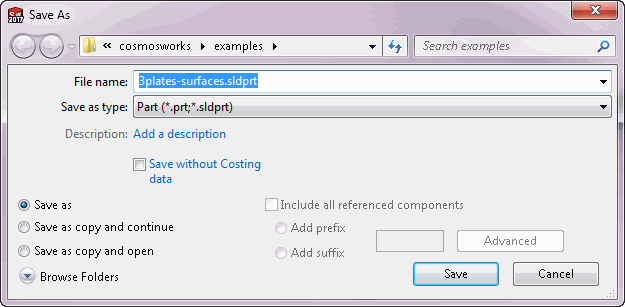

Save without Costing data

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveWithoutCostingData)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveWithoutCostingData, <OnFlag>)

Boolean value

Specifies whether to save the sheet metal part without any Costing data

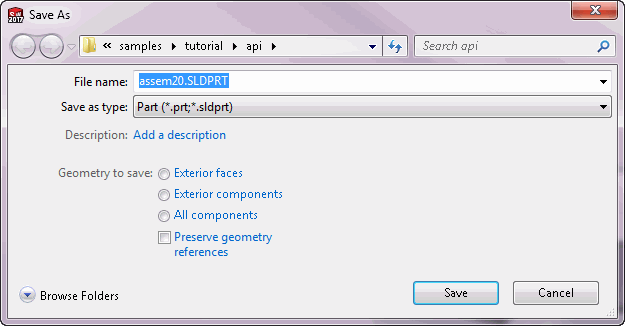

Geometry to save:

  • Exterior faces
  • Exterior components
  • All components



ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveAssemblyAsPartOptions)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveAssemblyAsPartOptions, swSaveAsmAsPartOptions_e.<Value>)

See swSaveAsmAsPartOptions_e for valid options

Specifies the geometry of an assembly to save as a multibody part

Preserve geometry references

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveAsmAsPartPreserveIDs)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveAsmAsPartPreserveIDs, <OnFlag>)

Boolean value

Specifies whether to preserve geometry reference IDs when saving an assembly as a part

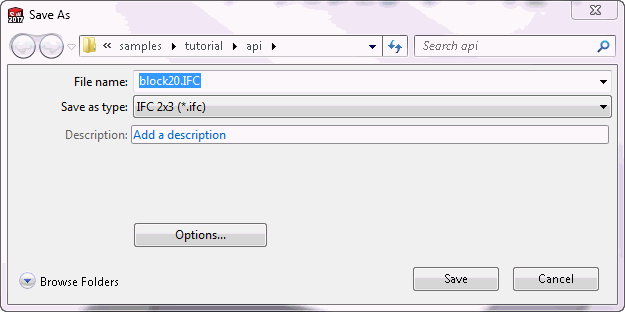

Save as type - IFC 2x3 or IFC 4

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveIFCFormat)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveIFCFormat, <Value>)

  • 23 = IFC 2x3
  •   4 = IFC 4

Specifies the IFC format in which to save a part
