System Options > Export > 3MF

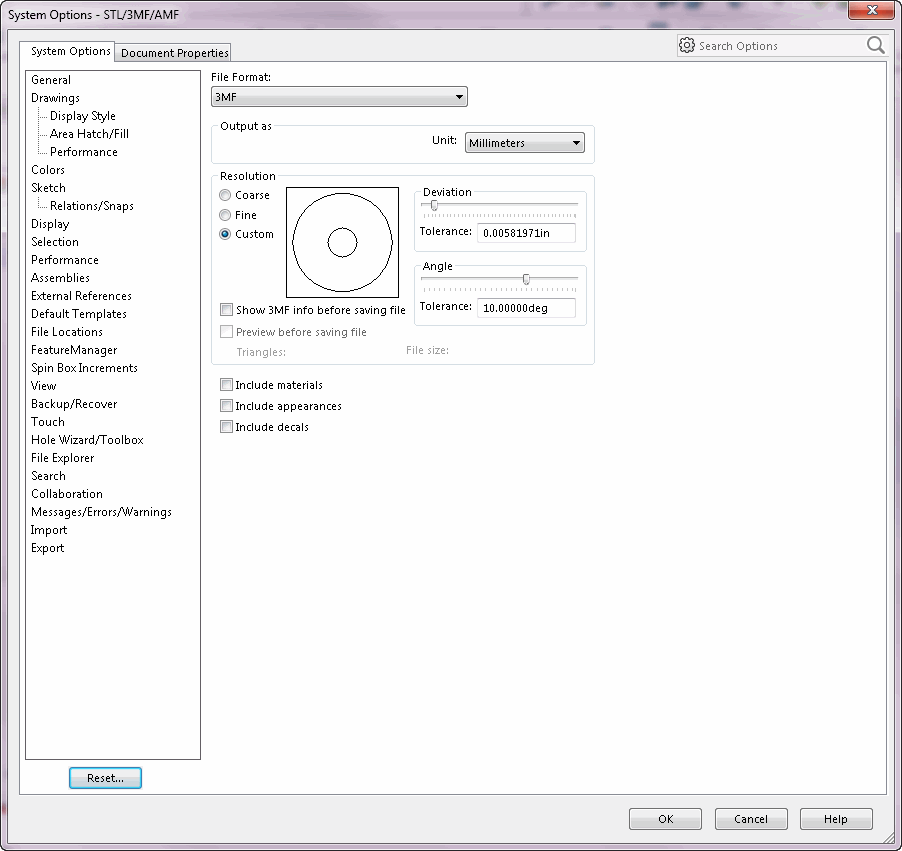

This topic contains two tables. The information in the table:

  • appearing immediately after the dialog corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

To display the dialog:

Click Tools > Options > System Options > Export > 3MF in File Format.

- or -

  1. Click File > Save As.
  2. In Save as type, select 3D Manufacturing Format.
  3. Click Options.




Get/Set Methods

Return Value


Output as - Unit


ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportStlUnits, swLengthUnit_e.<Value>)

Valid options as defined in swLengthUnit_e:

  • 0 = swMM (millimeters)

  • 1 = swCM (centimeters)

  • 2 = swMETER

  • 3 = swINCHES

  • 4 = swFEET


Resolution -

  • Coarse
  • Fine
  • Custom


ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSTLQuality, swSTLQuality_e.<Value>)

See swSTLQuality_e for valid options

Specifies the resolution of the output for 3D manufacturing files

Resolution - Deviation - Tolerance


ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSTLDeviation, <Value>)

Double value

Specifies the deviation tolerance, which controls whole-part tessellation; lower numbers generate files with greater whole-part accuracy

Resolution - Angle - Tolerance


ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSTLAngleTolerance, <Value>)

Double value

Specifies the angle tolerance, which controls smaller detail tessellation; lower numbers generate files with greater small-detail accuracy, but those files take longer to generate

Resolution - Show 3MF info before saving file

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFShowInfoOnSave)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFShowInfoOnSave, <OnFlag>)

Boolean value

Specifies whether to show 3MF info before saving the file

Resolution - Preview before saving file

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, swSTLPreview)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, swSTLPreview, <OnFlag>)

Boolean value

Specifies whether a faceted model preview is displayed in the graphics area

Include materials

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFMaterials)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFMaterials, <OnFlag>)

Boolean value

Specifies whether to include materials

Include appearances

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFAppearances)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFAppearances, <OnFlag>)

Boolean value

Specifies whether to include appearances

Include decals

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFDecals)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFDecals, <OnFlag>)

Boolean value

Specifies whether to include decals


Obsolete Enumerators
