System Options > Export > AMF

This topic contains two tables. The information in the table:

  • appearing immediately after the dialog corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

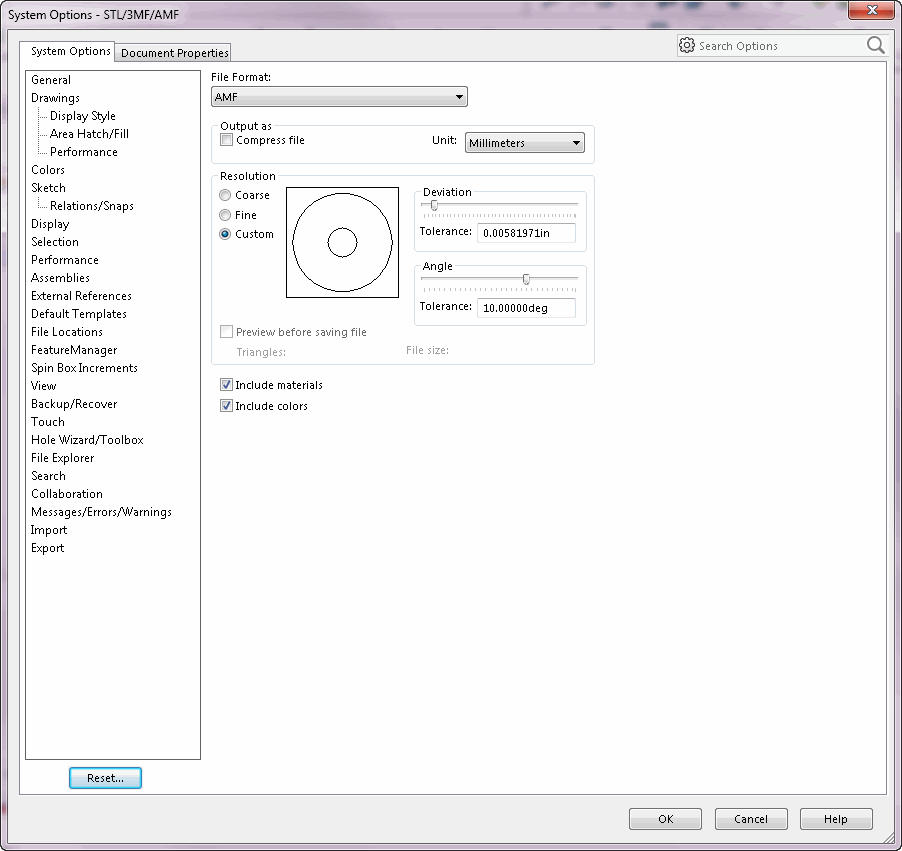

To display the dialog:

Click Tools > Options > System Options > Export > AMF in File Format.

- or -

  1. Click File > Save As.
  2. In Save as type, select Additive Manufacturing File.
  3. Click Options.





Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Output as - Compress file

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, swAMFCompression)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, swAMFCompression, <OnFlag>)

Boolean value

Specifies whether to compress the output file

Output as - Unit

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportStlUnits)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportStlUnits, swLengthUnit_e.<Value>)

Valid options as defined in swLengthUnit_e:

  • 0 = swMM (millimeters)

  • 1 = swCM (centimeters)

  • 2 = swMETER

  • 3 = swINCHES

  • 4 = swFEET



Resolution -

  • Coarse
  • Fine
  • Custom

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSTLQuality)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSTLQuality, swSTLQuality_e.<Value>)

See swSTLQuality_e for valid options

Specifies the resolution of the output for additive manufacturing files

Resolution - Deviation - Tolerance

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSTLDeviation)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSTLDeviation, <Value>)

Double value

Specifies the deviation tolerance, which controls whole-part tessellation; lower numbers generate files with greater whole-part accuracy

Resolution - Angle - Tolerance

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSTLAngleTolerance)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSTLAngleTolerance, <Value>)

Double value

Specifies the angle tolerance, which controls smaller detail tessellation; lower numbers generate files with greater small-detail accuracy, but those files take longer to generate

Resolution - Preview before saving file

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, swSTLPreview)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, swSTLPreview, <OnFlag>)

Boolean value

Specifies whether a faceted model preview is displayed in the graphics area

Include materials

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, swAMFMaterials)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, swAMFMaterials, <OnFlag>)

Boolean value

Specifies whether to include materials

Include colors

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, swAMFColors)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, swAMFColors, <OnFlag>)

Boolean value

Specifies whether to include colors



Obsolete Enumerators

Enumerator

Comment

swFileSaveAsCoordinateSystem

Obsolete
