System Options > Export > IGES 5.3

This topic contains two tables. The information in the table:

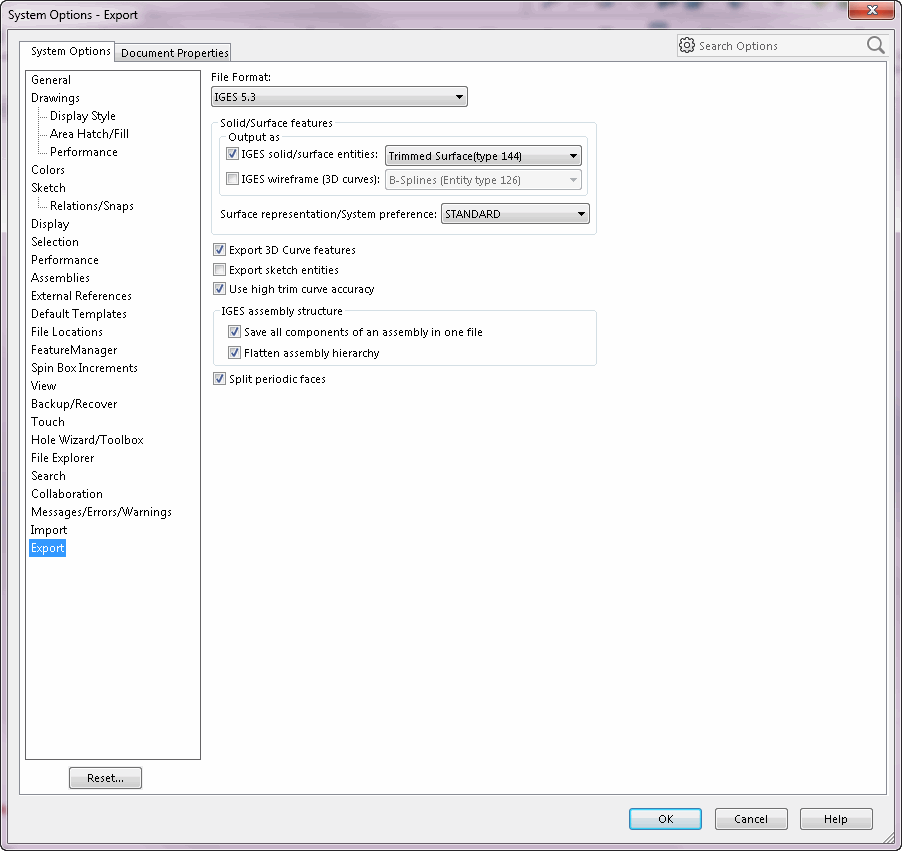

  • appearing immediately after the screen capture corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

To display the dialog:

Click Tools > Options > System Options > Export > IGES 5.3 in File Format.

- or -

  1. Click File > Save As.
  2. In Save as type, select IGES.
  3. Click Options.





Get/Set Methods

Return Value


Solid/Surface features - Output as - IGES solid/surface entities


ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIGESExportSolidAndSurface, <OnFlag>)

Boolean value

Specifies whether to export data as solid or surface entities

Solid/Surface features - Output as - IGES solid/surface entities <value>


ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swIGESRepresentation, swIGESRepresentation_e.<Value>)

See swIGESRepresentation_e for valid options


Specifies IGES representation type

Solid/Surface features - Output as - IGES wireframe (3D curves)


ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIGESExportAsWireframe, <OnFlag>)

Boolean value

Specifies whether to convert solid body to a 3D wireframe representation in the IGES file

Solid/Surface features - Output as - IGES wireframe (3D curves) <value>


ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swIGESCurveRepresentation, swIGESCurveRepresentation_e.<Value>)

See swIGESCurveRepresentation_e for valid options

Specifies the IGES curve representation

Solid/Surface features - Surface representation/System preference


ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swIGESSystem, swIGESPreferredSystem_e.<Value>)

See swIGESPreferredSystem_e for valid options

Specifies the IGES system setting

Export 3D Curve features


ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIGESExportFreeCurves, <OnFlag>)

Boolean value

Specifies whether to include 3D curve features in the exported file

Export sketch entities


ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIGESExportSketchEntities, <OnFlag>)

Boolean value

Specifies whether to export sketch entities

Use high trim curve accuracy


ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIGESHighTrimCurveAccuracy, <OnFlag>)

Boolean value

Specifies whether to use high-trim curve accuracy

IGES assembly structure - Save all components of an assembly in one file


ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIGESComponentsIntoOneFile, <OnFlag>)

Boolean value

Specifies whether to save all assembly components, sub-assemblies, and sub-assembly components in one file; for assemblies only

IGES assembly structure - Flatten assembly hierarchy


ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIGESFlattenAssemHierarchy, <OnFlag>)

Boolean value


Specifies whether to save assembly in flattened hierarchy (one level); for assemblies only

Split periodic faces


ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swIGESExportSplitPeriodic, <OnFlag>)

Boolean value

Specifies whether to split periodic faces; for parts only


Obsolete Enumerators






Obsolete; see swUserPreferenceIntegerValue_e.swIGESSystem


Obsolete; see swUserPreferenceIntegerValue_e.swIGESSystem
