> System Options > Export > VRML

System Options > Export > VRML

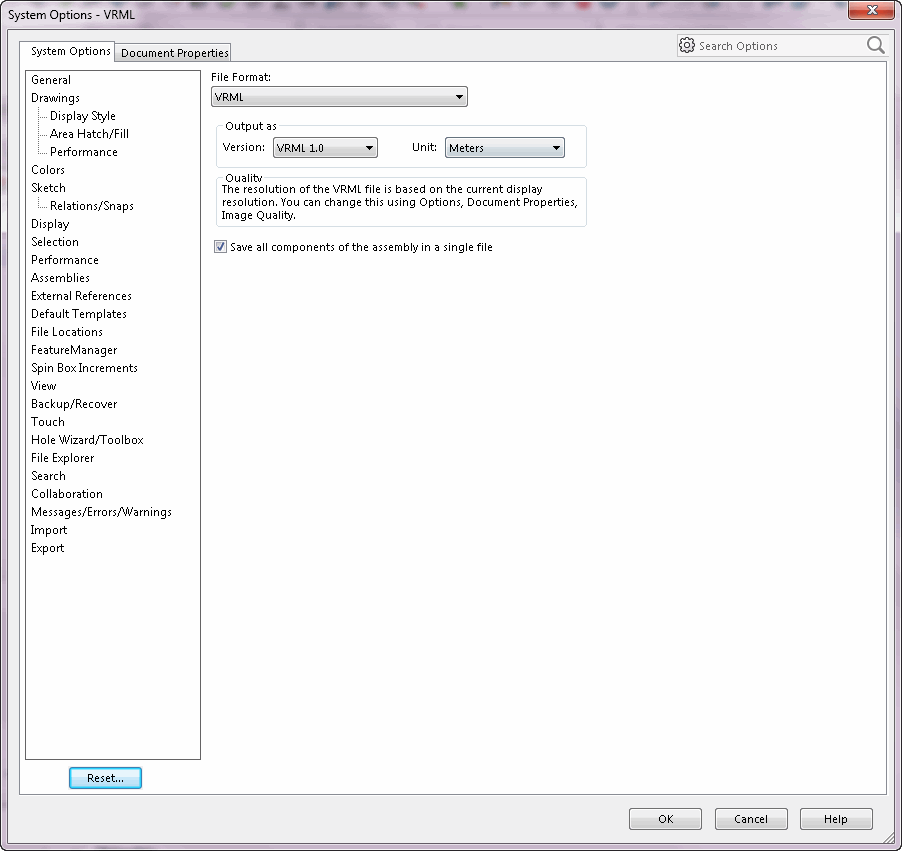

This topic contains two tables. The information in the table:

appearing immediately after the screen capture corresponds to the settings on that dialog.
titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

To display the dialog:

Click Tools > Options > System Options > Export > VRML in File Format.

- or -

Click File > Save As.
In Save as type, select VRML.
Click Options.

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Output as - Version	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportVrmlVersion) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportVrmlVersion, swVrmlOutputVersion_e.<Value>)	Values as defined in swVrmlOutputVersion_e
Output as - Unit	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportVrmlUnits) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportVrmlUnits, swLengthUnit_e.<Value>)	Any of the following swLengthUnit_e values: 0 = swMM (millimeters) 1 = swCM (centimeters) 2 = swMETER 3 = swINCHES 4 = swFEET
Save all components of the assembly in a single file	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExportVrmlAllComponentsInSingleFile) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExportVrmlAllComponentsInSingleFile, <OnFlag>)	Boolean value	Specifies whether to save all of the components of an assembly to a single VRML (.wrl) file

Obsolete Enumerators

Enumerator	Comment
swFileSaveAsCoordinateSystem	Obsolete
