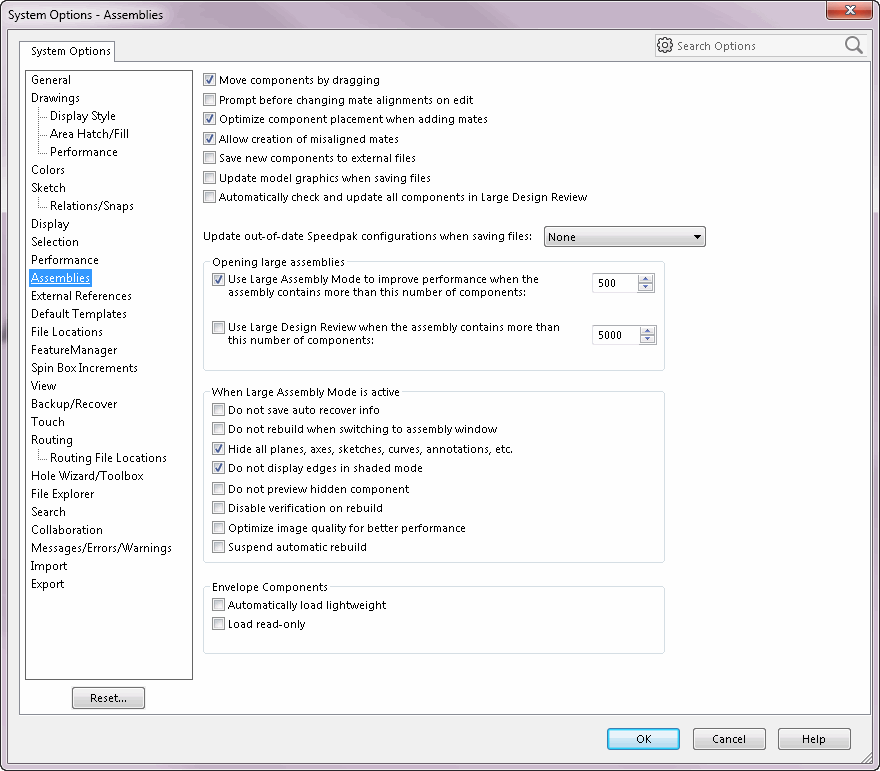

System Options > Assemblies



Setting

Get/Set Method

Return Value
or
<Value>
or
<OnFlag>

Comment

Move components by dragging

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAssemblyAllowComponentMoveByDragging)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAssemblyAllowComponentMoveByDragging, <OnFlag>)

Boolean value

Specifies whether to move assembly components by dragging them or using the Move with Triad and Move Component tools

Prompt before changing mate alignments on edit

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPromptForAutoMateFlip)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPromptForAutoMateFlip, <OnFlag>)

Boolean value

Specifies whether to prompt before automatically flipping a mate to avoid errors

Optimize component placement when adding mates

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swOptimizeMatePlacement)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swOptimizeMatePlacement, <OnFlag>)

Boolean value





Allow creation of misaligned mates

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAssemblyAllowCreationOfMisalignedMates)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAssemblyAllowCreationOfMisalignedMates, <OnFlag>)

Boolean value

Specifies whether to allow the creation of misaligned mates in assemblies

Save new components to external files

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveNewComponentsToExternalFile)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveNewComponentsToExternalFile, <OnFlag>)

Boolean value

Specifies whether to save new components to external files

Update model graphics when saving files

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAssemblyUpdateModelGraphicsWhenSavingFiles)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAssemblyUpdateModelGraphicsWhenSavingFiles, <OnFlag>)

Boolean value

Specifies whether to update model graphics when saving files

Automatically check and update all components in Large Design Review

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeAutoCheckUpdateAllComponents)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeAutoCheckUpdateAllComponents, <OnFlag>)

Boolean value

Specifies whether to automatically check and update all components in Large Design Review

Allow graphics component

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAssemblyAllowGraphicsComponent)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAssemblyAllowGraphicsComponent, <OnFlag>)

Boolean value

Valid only if registry setting, "Software\\SolidWorks\\SOLIDWORKS\\2018\\Assemblies\\ShowAllGraphics, is set to true

Update out-of-date Speedpak configurations when saving files

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceToggle_e.swUpdateOutOfDateSpeedPakConfigOnSave)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceToggle_e.swUpdateOutOfDateSpeedPakConfigOnSave, swSpeedpakUpdate_e.<Value>)

Integer value as defined in swSpeedpakUpdate_e

Specifies under what conditions to update out-of-date Speedpak configurations when saving files

Opening large assemblies - Use Large Assembly Mode to improve performance when the assembly contains more than this number of components

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeEnabled)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeEnabled, <OnFlag>)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swLargeAsmModeThreshold)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swLargeAsmModeThreshold, <Value>)

Boolean value





Integer value

Specifies whether to activate Large Assembly Mode





Specifies the minimum number of components in an assembly for automatically using Large Assembly Mode

Opening large assemblies - Use Large Design Review when the assembly contains more than this number of components

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeLargeDesignReview)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeLargeDesignReview, <OnFlag>)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swLargeAsmModeLargeDesignReviewThreshhold)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swLargeAsmModeLargeDesignReviewThreshhold, <Value>)

Boolean value





Integer value

Specifies whether to automatically use Large Design Review based on the number of components in the assembly; see swLargeAsmModeLargeDesignReviewThreshhold



Specifies the minimum number of components in an assembly for automatically using Large Design Review

When Large Assembly Mode is active - Do not save auto recover info

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeAutoRecover)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeAutoRecover, <OnFlag>)

Boolean value

Specifies whether to automatically save model information after specified number of changes

When Large Assembly Mode is active - Do not rebuild when switching to assembly window

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeDismissAutoUpdate)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeDismissAutoUpdate, <OnFlag>)

Boolean value

Specifies whether to rebuild when switching to the assembly window

When Large Assembly Mode is active - Hide all planes, axes, sketches, curves, annotations, etc.

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeHideAllItems)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeHideAllItems, <OnFlag>)

Boolean value

Specifies whether to hide all planes, axes, sketches, curves, annotations, etc.

When Large Assembly Mode is active - Do not display edges in shaded mode

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeUseHLREdgesInShaded)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeUseHLREdgesInShaded, <OnFlag>)

Boolean value

Specifies whether to use HLR edges in shaded mode

When Large Assembly Mode is active - Do not preview hidden component

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModePreviewHiddenComponent)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModePreviewHiddenComponent, <OnFlag>)

Boolean value

Specifies whether to not preview hidden components

When Large Assembly Mode is active - Disable verification on rebuild

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeVerificationOnRebuild)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeVerificationOnRebuild, <OnFlag>)

Boolean value

Specifies whether to disable verification on rebuild

When Large Assembly Mode is active - Optimize image quality for better performance

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeImageQualityPerformance)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeImageQualityPerformance, <OnFlag>)

Boolean value

Specifies whether to optimize image quality for better performance

When Large Assembly Mode is active - Suspend automatic rebuild

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeSuspendAutoRebuild)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLargeAsmModeSuspendAutoRebuild, <OnFlag>)

Boolean value

Specifies whether to suspend automatic rebuilds

Envelope Components - Automatically load lightweight

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLoadEnvelopeLightweight)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLoadEnvelopeLightweight, <OnFlag>)

Boolean value

Specifies whether to automatically load envelope components in lightweight mode

Envelope Components - Load read-only

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swLoadEnvelopeReadOnly)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swLoadEnvelopeReadOnly, <OnFlag>)

Boolean value

Specifies whether to load envelope components in read-only mode
