System Options > Drawings > Display Style

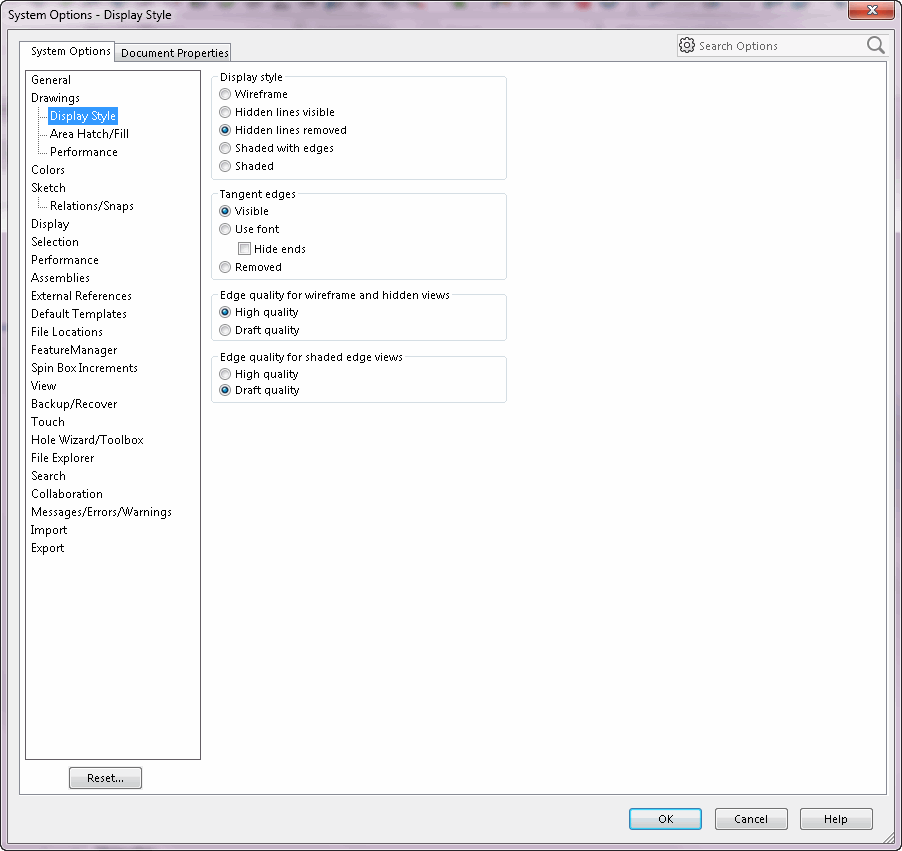

This topic contains two tables. The information in the table:

  • appearing immediately after the screen capture of the dialog corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.





Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Display style - Wireframe

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault, <swDisplayMode_e.swWIREFRAME)

See swDisplayMode_e for valid options



Display style - Hidden lines visible

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault, <swDisplayMode_e.swHIDDEN_GREYED)

See swDisplayMode_e for valid options



Display style - Hidden lines removed

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault, <swDisplayMode_e.swHIDDEN)

See swDisplayMode_e for valid options



Display style - Shaded with edges

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swHiddenEdgeDisplayDefault, <swDisplayMode_e.swSHADED)

See swDisplayMode_e for valid options

To display a drawing view shaded with edges, also set ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingsDefaultDisplayTypeHLREdgesWhenShaded, True)

Display style - Shaded

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingsDefaultDisplayTypeHLREdgesWhenShaded)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingsDefaultDisplayTypeHLREdgesWhenShaded, <OnFlag>)

Boolean value



Tangent edges - Visible

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault, <swDisplayTangentEdges_e.swTangentEdgesVisible)

See swDisplayTangentEdges_e for valid options

Specifies tangent edges using a solid line

Tangent edges - Use font

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault, <swDisplayTangentEdges_e.swTangentEdgesVisibleAndFonted)

See swDisplayTangentEdges_e for valid options

Specifies tangent edges using a line in the default font

Tangent edges - Hide ends

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingHideEnds)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingHideEnds, <OnFlag>)

Boolean value

Specifies whether to hide the start and end segments of tangent edges

Tangent edges - Removed

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTangentEdgeDisplayDefault, <swDisplayTangentEdges_e.swTangentEdgesHidden)

See swDisplayTangentEdges_e for valid options

Specifies to not display tangent edges

Edge quality for wireframe and hidden views - High/Draft  quality

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEdgeQualityWireframeHiddenViews)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEdgeQualityWireframeHiddenViews, False)

Boolean value

True for high edge quality for wireframe and hidden views; false for draft edge quality

Edge quality for shaded edge views - High/Draft quality

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEdgeQualityShadedEdgeViews)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEdgeQualityShadedEdgeViews, True)

Boolean value

True for high edge quality for shaded edge views; false for draft edge quality

Obsolete Enumerators

Enumerator

Comment

swDrawingsDefaultDisplayTypeFastHLRHLV

Obsolete; specified the display quality for new drawing views
