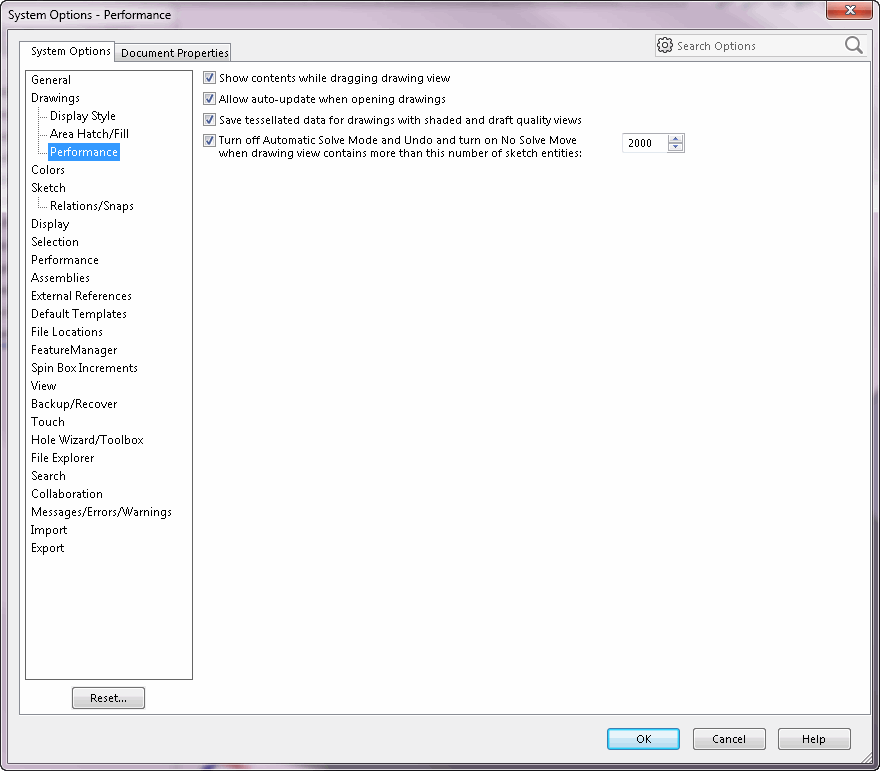

System Options > Drawings > Performance



Setting

Get/Set Methods

Return Value
or

<Value>
or
<OnFlag>

Comment

Show contents while dragging drawing view

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingViewShowContentsWhileDragging)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingViewShowContentsWhileDragging, <OnFlag>)

Boolean value

Specifies whether model or view boundary is displayed when view is dragged

Allow auto-update when opening drawings

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAutomaticDrawingViewUpdateDefault

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAutomaticDrawingViewUpdateDefault, <OnFlag>)

Boolean value

Specifies whether drawing views are updated when a drawing is opened

Save tessellated data for drawings with shaded and draft quality views

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSaveShadedData)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSaveShadedData, <OnFlag>)

Boolean value

Specifies whether to save tessellated data in drawing documents with shaded and draft quality views

Turn Off Automatic Solve Mode and Undo and turn on No Solve Mode when drawing view contains more than...

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingTurnOffAutomaticSolveModeAndUndo)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingTurnOffAutomaticSolveModeAndUndo, <OnFlag>)

Boolean value

True to turn off Automatic Solve Mode and Undo and turn on No Solve Mode when drawing view contains more than the specified number of sketch entities

False to turn on Automatic Solve Mode and Undo and turn off No Solve Mode when drawing view contains more than the specified number of sketch entities

this number of sketch entities

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swDrawing_Auto_Solve_Threshold) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swDrawing_Auto_Solve_Threshold, <Value>)

Integer value

The specified number of sketch entities mentioned in the previous comment
