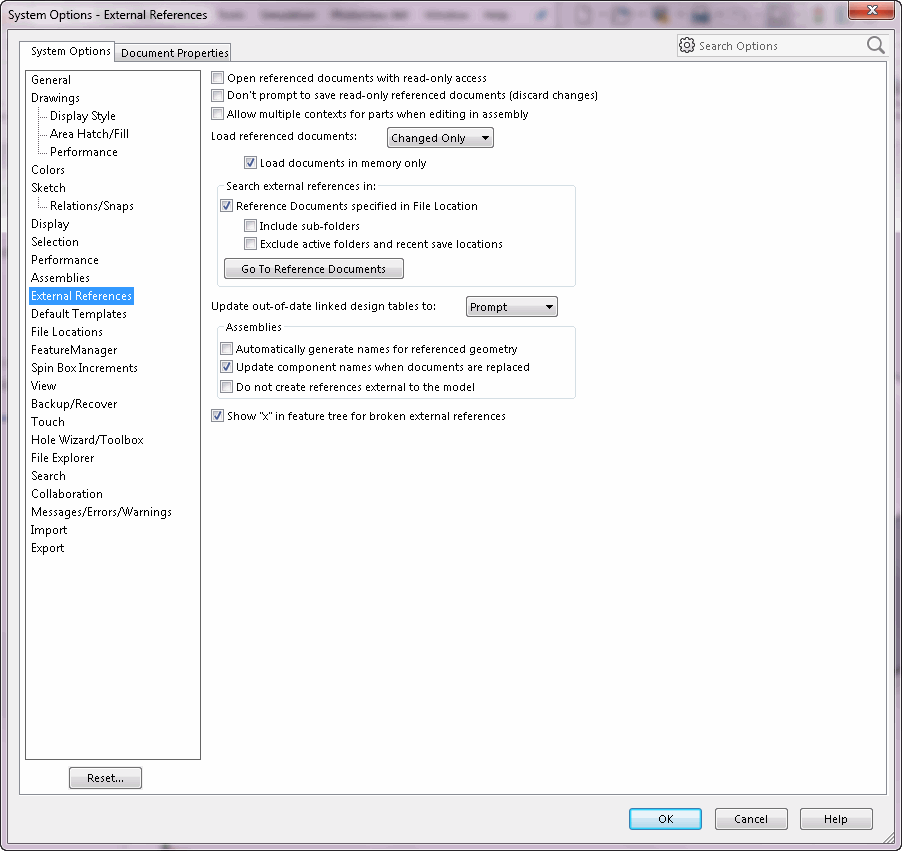

System Options > External References



Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Open referenced documents with read-only access

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefOpenReadOnly)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefOpenReadOnly, <OnFlag>)

Boolean value

Specifies whether to open referenced documents as read-only

Don't prompt to save read-only referenced documents (discard changes)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefNoPromptOrSave)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefNoPromptOrSave, <OnFlag>)

Boolean value

Specifies whether to close read-only reference documents without prompting or attempting to save changes made to them when saving or closing the parent document

Allow multiple contexts for parts when editing in assembly

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefMultipleContexts)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefMultipleContexts, <OnFlag>)

Boolean value

Specifies whether to create external references to a single part from more than one assembly context

Load referenced documents

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swLoadExternalReferences)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swLoadExternalReferences, swLoadExternalReferences_e.<Value>)

See swLoadExternalReferences_e for valid options



Load documents in memory only

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefLoadRefDocsInMemory)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefLoadRefDocsInMemory, <OnFlag>)

Boolean value

Specifies whether to load reference documents in memory only

Search external references in - Reference Documents specified in File Location

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swUseFolderSearchRules)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swUseFolderSearchRules, <OnFlag>)

Boolean value



Specifies whether to search the Referenced Documents list of folders in the File Locations Options dialog

Search external references in - Reference Documents specified in File Location - Include sub-folders

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefIncludeSubFolders)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefIncludeSubFolders, <OnFlag>)

Boolean value

Specifies whether to search for reference documents in sub-folders in the specified file location; valid only if Reference Documents specified in File Location is true

Search external references in - Reference Documents specified in File Location - Exclude active folders and recent save locations

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefExcludeActiveFoldersAndRecentSaveLocations)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefExcludeActiveFoldersAndRecentSaveLocations, <OnFlag>)

Boolean value

Specifies whether to block searching for reference documents in open folders and folders containing recently saved items; valid only if Reference Documents specified in File Location is true

Update out-of-date linked design tables to

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExternalReferencesUpdateOutOfDateLinkedDesignTable)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExternalReferencesUpdateOutOfDateLinkedDesignTable, swExternalReferencesUpdateOutOfDateLinkedDesignTable_e.<Value>)

See swExternalReferencesUpdateOutOfDateLinkedDesignTable_e for valid options



Assemblies - Automatically generate names for referenced geometry

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefAutoGenNames)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefAutoGenNames, <OnFlag>)

Boolean value



Specifies whether to automatically generate names for referenced geometry

Assemblies - Update component names when documents are replaced

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefUpdateCompNames)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefUpdateCompNames, <OnFlag>)

Boolean value



Specifies whether to mate to read-only parts using internal face IDs of the parts or to replace components using surface identifiers to write-access parts

Assemblies - Do not create references external to the model

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExternalReferencesDisable)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExternalReferencesDisable, <OnFlag>)

Boolean value



Specifies whether to create external references when designing in the context of an assembly

Show "x" in feature tree for broken external references

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefShowXInFeatureTree)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExtRefShowXInFeatureTree, <OnFlag>)



Boolean value

Specifies whether to hide or show the x that appears in the FeatureManager design tree to indicate broken references
