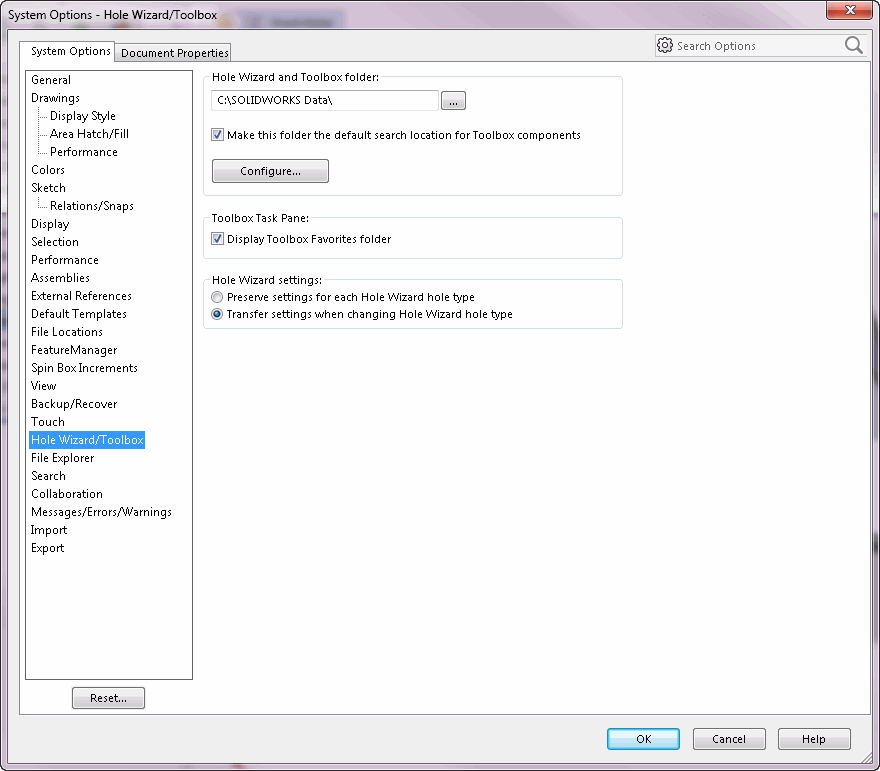

System Options > Hole Wizard/Toolbox



Setting

Get/Set Methods

Return Value
or
<Value>

Comment

Hole Wizard and Toolbox folder

ISldWorks::GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swHoleWizardToolBoxFolder) ISldWorks::SetUserPreferenceStringValue(swUserPreferenceStringValue_e.swHoleWizardToolBoxFolder, <Value>)

String value

Specifies the location of the Hole Wizard/Toolbox folder

Make this folder the default search location for Toolbox components

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swUseFolderAsDefaultSearchLocation)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swUseFolderAsDefaultSearchLocation, <Value>)

Boolean value

Specifies whether to make the specified Hole Wizard and Toolbox folder the default search location for Toolbox components

Toolbox Task Pane - Display Toolbox Favorites folder

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swShowToolboxFavoritesFolder)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swShowToolboxFavoritesFolder, <Value>)

Boolean value

Specifies whether to display the Toolbox Favorites folder

Hole Wizard settings

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swTransferHoleWizardSizeComboBoxSettings)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swTransferHoleWizardSizeComboBoxSettings, <Value>)

Boolean value

True to preserve settings for each Hole Wizard hole type, false to transfer settings when changing Hole Wizard hole type
