System Options > Search

This topic contains two tables. The information in the table:

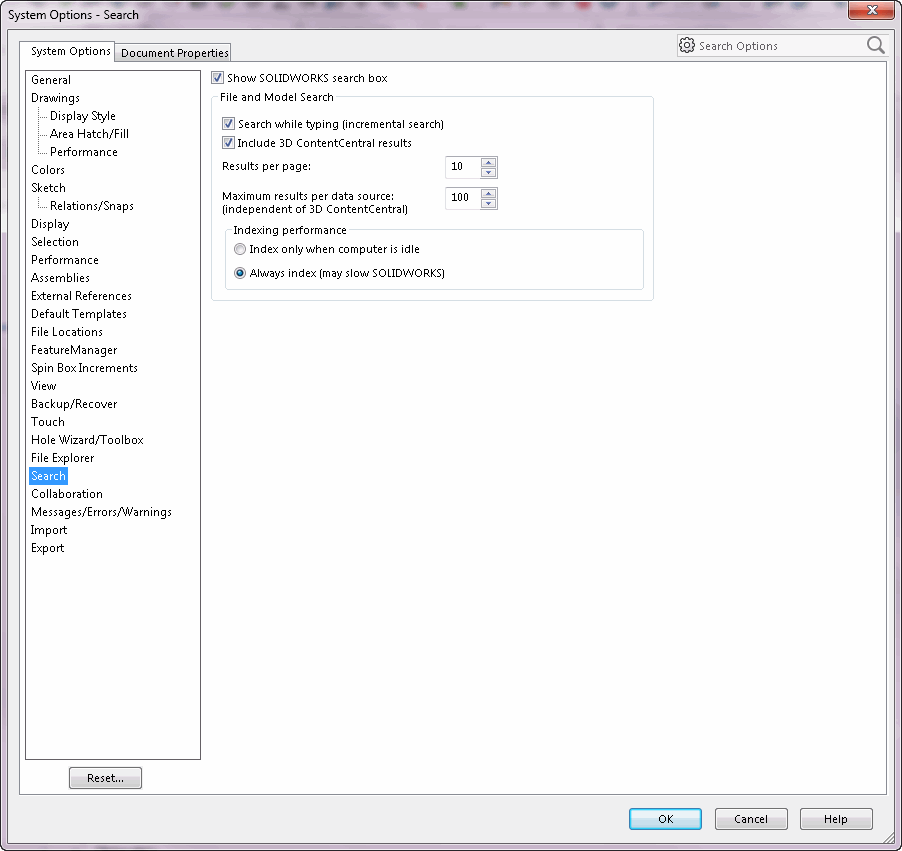

  • appearing immediately after the screen capture corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.





Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Show SOLIDWORKS search box

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchShowSOLIDWORKSSearchBox)

 ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchShowSOLIDWORKSSearchBox, <OnFlag>)

Boolean value

Specifies whether to show the SOLIDWORKS search box

File and Model Search - Search while typing (incremental search)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchWhileTyping)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchWhileTyping, <OnFlag>)

Boolean value

Specifies whether to start the search while typing the search string

File and Model Search - Include 3D ContentCentral results

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchIncludeContentCentral)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchIncludeContentCentral, <OnFlag>)

Boolean value

Specifies whether to start the search while typing the search string

File and Model Search - Results per page

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchResultsPerPage)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchResultsPerPage, <Value>)

Integer value

Specifies number of search results to show per page

File and Model Search - Maximum results per data source (independent of 3D ContentCentral)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchMaxResultsPerDataSource)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchMaxResultsPerDataSource, <Value>)

Integer value

Specifies maximum number of results per data source (independent of 3D Content Central)

File and Model Search - Indexing Performance

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchIndexingPerformance)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchIndexingPerformance, swSearchIndexingPerformance_e.<Value>)

See swSearchIndexingPerformance_e for valid options

Specifies when to perform search indexing





Obsolete Enumerators

Enumerator

Comment

swSearchDissectionScheduleDaily

Obsolete

swSearchDissectionDailyStartTime

Obsolete

swSearchDissectionDailyStopTime

Obsolete

swSearchDissectionLocation

Obsolete
