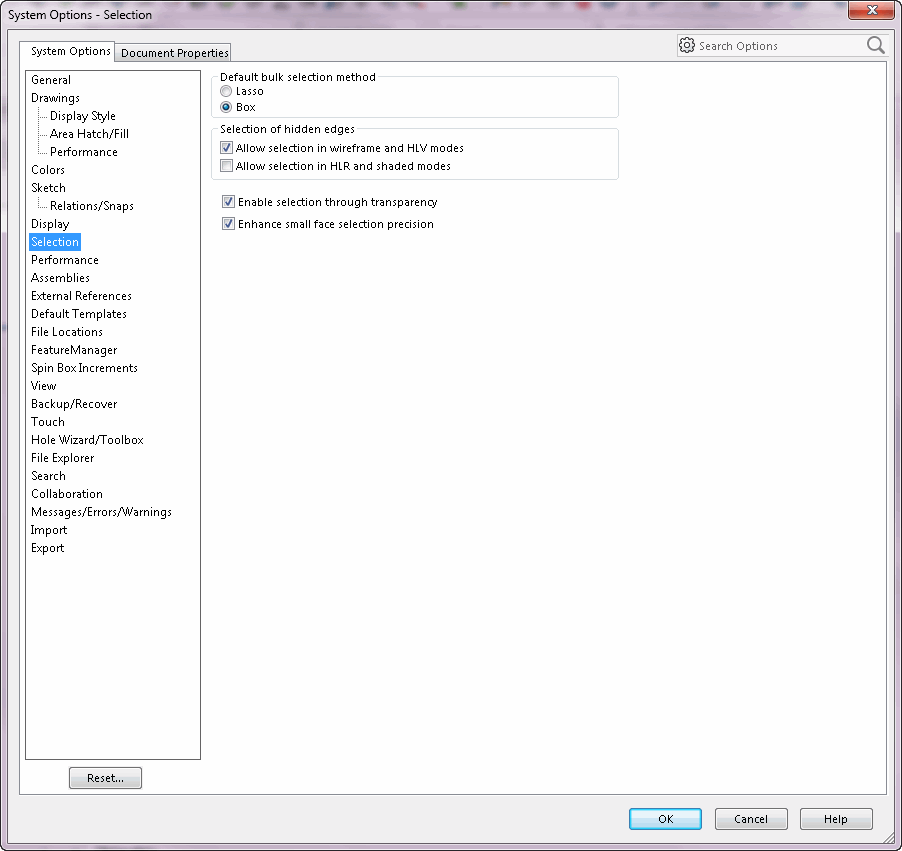

System Options > Selection





Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Default bulk selection method - Lasso or Box

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEdgesDefaultBulkSelection)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEdgesDefaultBulkSelection, <OnFlag>)

Boolean value

True to use a lasso for bulk selection, false to use a box

Selection of hidden edges - Allow selection in wireframe and HLV modes

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEdgesHiddenEdgeSelectionInWireframe)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEdgesHiddenEdgeSelectionInWireframe, <OnFlag>)

Boolean value

Specifies whether to allow selection of hidden edges or vertices in Wireframe and Hidden Lines Visible modes

Selection of hidden edges - Allow selection in HLR and shaded modes

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEdgesHiddenEdgeSelectionInHLR)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEdgesHiddenEdgeSelectionInHLR, <OnFlag>)

Boolean value

Specifies whether to allow selection of hidden edges or vertices in Wireframe and Hidden Lines Visible modes

Enable selection through transparency

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayEnableSelectionThroughTransparency)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayEnableSelectionThroughTransparency, <OnFlag>)

Boolean value

Specifies whether to enable selection of opaque objects behind transparent objects in graphics area or selection of nearest object regardless of transparency


Enhance small face selection precision

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEnhanceSmallFaceSelectionPrecision)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEnhanceSmallFaceSelectionPrecision, <OnFlag>)


Boolean value

Specifies whether to enable selecting small entities more easily
