System Options > Sketch

This topic contains two tables. The information in the table:

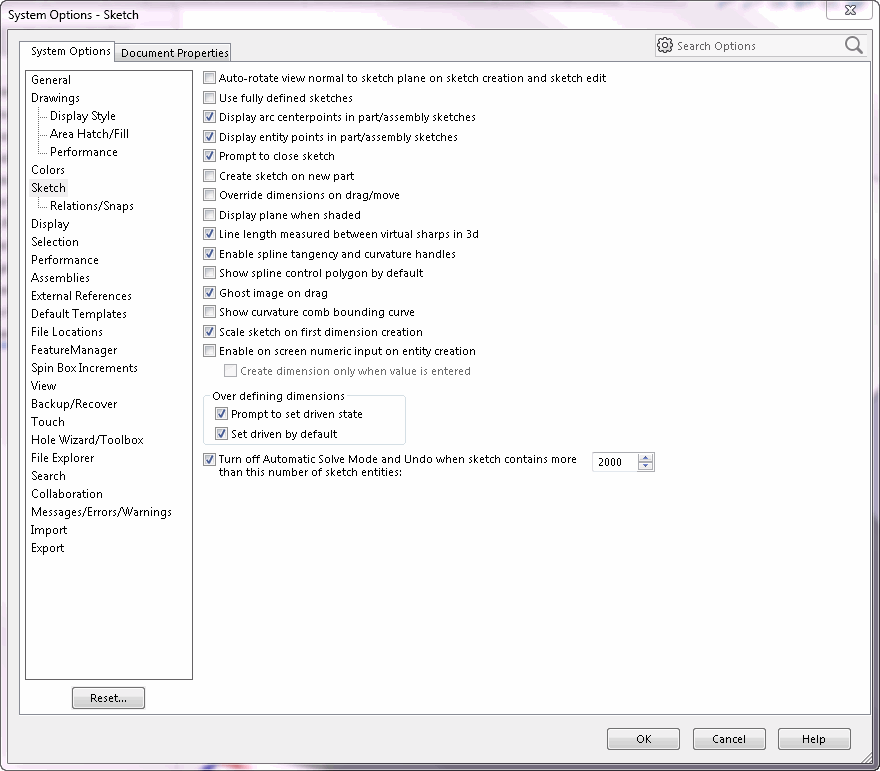

  • appearing immediately after the screen capture of the dialog corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.











Setting

Get/Set Methods

Return Value
or
<OnFlag>

Comment

Auto-rotate view normal to sketch plane on sketch creation and sketch edit

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoNormalToSketchMode)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAutoNormalToSketchMode, <OnFlag>)

Boolean value

Specifies whether to automatically rotate the view normal to the sketch plane when creating or editing a sketch

Use fully defined sketches

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFullyConstrainedSketchMode)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFullyConstrainedSketchMode, <OnFlag>)

Boolean value

Specifies whether sketches must be fully defined to create features

Display arc centerpoints in part/assembly sketches

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayArcCenterPoints)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayArcCenterPoints, <OnFlag>)

Boolean value

Specifies whether to display arc center points in part and assembly sketches

Display entity points in part/assembly sketches

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayEntityPoints)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayEntityPoints, <OnFlag>)

Boolean value

Specifies whether to display endpoints of sketch entities as filled circles in part and assembly sketches

Prompt to close sketch

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchPromptToCloseSketch)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchPromptToCloseSketch, <OnFlag>)

Boolean value

Specifies whether to display a dialog when creating open-profile sketch and extruding sketch to create boss feature

Create sketch on new part

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchCreateSketchOnNewPart)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchCreateSketchOnNewPart, <OnFlag>)

Boolean value

Specifies whether to open new part with active sketch on the Front Plane

Override dimensions on  drag/move

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchOverrideDimensionsOnDrag)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchOverrideDimensionsOnDrag, <OnFlag>)

Boolean value

Specifies whether to override dimensions when dragging or moving sketch entities

Display plane when shaded

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchDisplayPlaneWhenShaded)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchDisplayPlaneWhenShaded, <OnFlag>)

Boolean value

Specifies whether to display plane when editing sketch in Shaded With Edges or Shaded mode

Line length measured between virtual sharps in 3d

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchLineLengthVirtualSharp3d)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchLineLengthVirtualSharp3d, <OnFlag>)

Boolean value

Specifies whether to measure line length between virtual sharps in 3D

Enable spline tangency and curvature handles

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayAllSplineHandles)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayAllSplineHandles, <OnFlag>)

Boolean value

Specifies whether to display spline handles

Show spline control polygon by default

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchShowSplineControlPolygon)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchShowSplineControlPolygon, <OnFlag>)

Boolean value

Specifies whether to show spline control polygon by default

Ghost image on drag

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchShadowDrag)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchShadowDrag, <OnFlag>)

Boolean value

Specifies whether to enable ghost image on drag

Show curvature comb bounding curve

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchShowSplineOuterComb)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchShowSplineOuterComb, <OnFlag>)

Boolean value

Specifies whether to show the outer spline comb

Scale sketch on first dimension creation

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swScaleSketchOnFirstDimension)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swScaleSketchOnFirstDimension, <OnFlag>)

Boolean value Specifies whether to enable the automatic scaling that occurs when you specify the first dimension in a sketch

Enable on screen numeric input on entity creation

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchAcceptNumericInput)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchAcceptNumericInput, <OnFlag>)

Boolean value

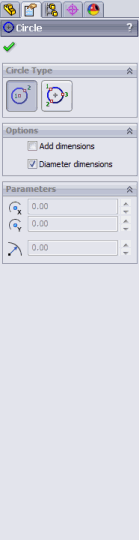

Specifies whether to enable on-screen numeric input when creating a sketch entity; adds the Add dimensions check box to the PropertyManager page of the sketch entity

Create dimension only when value is entered

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchCreateDimensionOnlyWhenEntered)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchCreateDimensionOnlyWhenEntered, <OnFlag>)

Boolean value

Specifies whether to create dimensions only when values are entered; valid only if Enable on screen numeric input on entity creation is true

Corresponds to the Sketch Numeric Input button on the shortcut menu while sketching an entity

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToSketchEntity)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToSketchEntity, <OnFlag>)

Boolean value

Specifies whether to enable on-screen numeric input while sketching an entity; adds Add dimensions check box to the PropertyManager page of the sketch entity

Corresponds to the Add Dimension button on the shortcut menu while sketching an entity and toggles the Add dimensions check box on that entity's PropertyManager page

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToLineEntity)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToLineEntity, <OnFlag>)



ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToRectangleEntity)

SldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToRectangleEntity, <OnFlag>)



ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToArcEntity)

SldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToArcEntity, <OnFlag>)



ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToCircleEntity)

SldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToCircleEntity, <OnFlag>)



ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToSlotEntity)

SldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDimensionsToSlotEntity, <OnFlag>)

Boolean value

swAddDimensionsToSketchEntity must be set to true for these enumerators to have an effect

Corresponds to the Sketch Dimension Driven button on the shortcut menu while sketching an entity

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swAddDrivenDimensions)

SldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.AddDrivenDimensions, <OnFlag>)

Boolean value

swAddDimensionsToSketchEntity must be set to true for this enumerator to have an effect

Over defining dimensions - Prompt to set driven state

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchOverdefiningDimsPromptToSetState)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchOverdefiningDimsPromptToSetState, <OnFlag>)

Boolean value

Specifies whether to display dialog when adding over-defining dimension to sketch

Over defining dimensions - Set driven by default

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchOverdefiningDimsSetDrivenByDefault)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchOverdefiningDimsSetDrivenByDefault, <OnFlag>)

Boolean value

Specifies whether to set dimension to be driven by default when adding an over-defining dimension to sketch

Turn off Automatic Solve Mode and Undo when sketch contains more than...

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchTurnOffAutomaticSolveModeAndUndo)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchTurnOffAutomaticSolveModeAndUndo, <OnFlag>)

Boolean value

Specifies whether to turn off Automatic Solve Mode and Undo when sketch contains more than the specified number of sketch entities

this number of sketch entities

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSketch_Auto_Solve_Threshold) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSketch_Auto_Solve_Threshold, <Value>)

Integer value

The specified number of sketch entities mentioned in the previous comment



Obsolete Enumerators

Enumerator

Comment

swSketchAlternateSplineCreation

Obsolete
