System Options > Sketch > Relations/Snaps

This topic contains two tables. The information in the table:

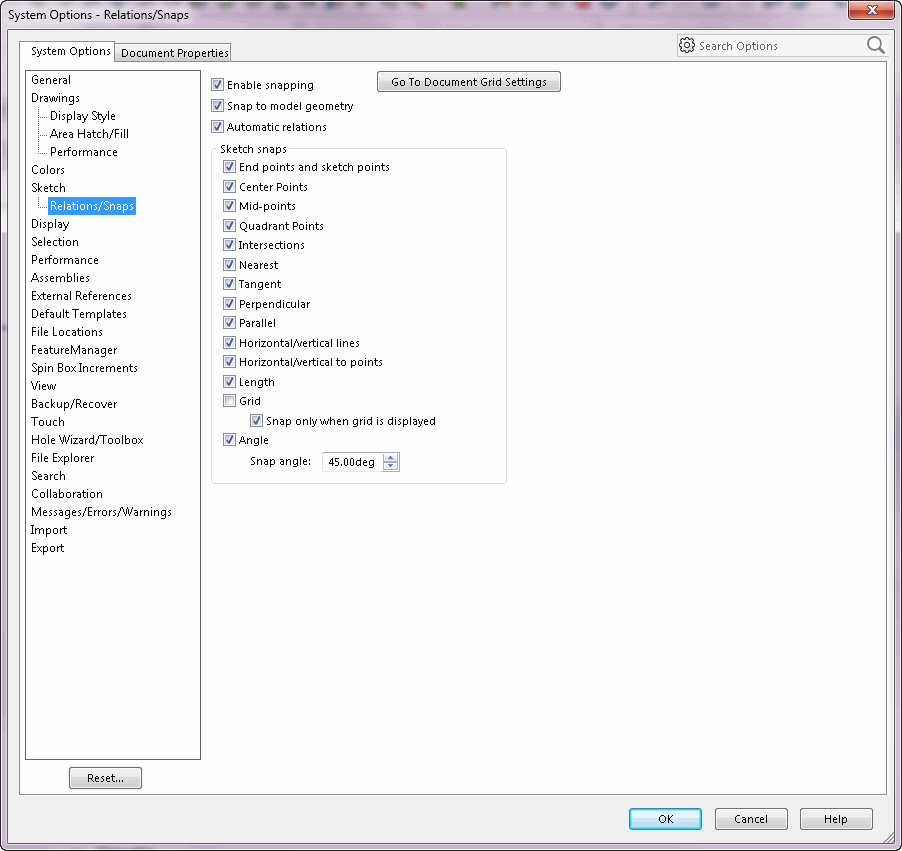

  • appearing immediately after the screen capture of the dialog corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog, but are now obsolete and replaced by the specified system-level snap-related enumerator.



Setting

Get/Set Methods

Return Value
or
<OnFlag>

Comment

Enable snapping

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchInference)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchInference, <OnFlag>)

Boolean value

Specifies whether to enable snapping

Snap to model geometry

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchInferFromModel)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchInferFromModel, <OnFlag>)

Boolean value

Specifies whether to display inferencing lines that relate to lines and vertices of underlying model when sketching on face of extruded part

Automatic relations

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchAutomaticRelations)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchAutomaticRelations, <OnFlag>)

Boolean value

Specifies whether to automatically create geometric relations when adding sketch entities

Sketch Snaps - End points and sketch points

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsPoints)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsPoints, <OnFlag>)

Boolean value

Specifies whether to snap to the end of the following sketch entities: lines, polygons, rectangles, parallelograms, fillets, arcs, parabolas, partial ellipses, splines, points, chamfers, and centerlines

Sketch Snaps - Center Points

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsCenterPoints)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsCenterPoints, <OnFlag>)

Boolean value

Specifies whether to snap to the center of the following sketch entities: circles, arcs, fillets, parabolas, and partial ellipses

Sketch Snaps - Mid-points

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsMidPoints)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsMidPoints, <OnFlag>)

Boolean value

Specifies whether to snap to the midpoints of lines, polygons, rectangles, parallelograms, fillets, arcs, parabolas, partial ellipses, splines, points, chamfers, and centerlines

Sketch Snaps - Quadrant Points

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsQuadrantPoints)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsQuadrantPoints, <OnFlag>)

Boolean value

Specifies whether to snap to the quadrants of circles, arcs, fillets, parabolas, ellipses, and partial ellipses

Sketch Snaps - Intersections

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsIntersections)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsIntersections, <OnFlag>)

Boolean value

Specifies whether to snap to the intersections of entities that meet or entities that intersect

Sketch Snaps - Nearest

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsNearest)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsNearest, <OnFlag>)

Boolean value

Specifies whether to support all entities; turn on to enable all snaps; your pointer does not need to be in the immediate vicinity of another sketch entity to show inference or snap to that point; turn off to enable snaps only when the pointer is in the vicinity of the snap point

Sketch Snaps - Tangent

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsTangent)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsTangent, <OnFlag>)

Boolean value

Specifies wither to snap to tangents on circles, arcs, fillets, parabolas, ellipses, partial ellipses, and splines

Sketch Snaps - Perpendicular

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsPerpendicular)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsPerpendicular, <OnFlag>)

Boolean value

Specifies whether to snap a line to another line

Sketch Snaps - Parallel

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsParallel)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsParallel, <OnFlag>)

Boolean value

Specifies whether to create a parallel entity to lines

Sketch Snaps - Horizontal/vertical lines

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsHVLines)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsHVLines, <OnFlag>)

Boolean value

Specifies whether to snap a line vertically to an existing horizontal sketch line, and horizontally to an existing vertical sketch line

Sketch Snaps - Horizontal/vertical to points

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsHVPoints)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsHVPoints, <OnFlag>)

Boolean value

Specifies whether to snap a line vertically or horizontally to an existing sketch point

Sketch Snaps - Length

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsLength)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsLength, <OnFlag>)

Boolean value

Specifies whether to snap to lines to the increments that are set by the grid, without requiring display of the grid

Sketch Snaps - Grid

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsGrid)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsGrid, <OnFlag>)

Boolean value

Specifies whether to snap sketch entities to the grid's vertical and horizontal divisions; this is the only sketch snap that is not active by default; replaces the now obsolete document-level Boolean swSnapToPoints

Sketch Snaps - Snap only when grid is displayed

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapToGridIfDisplayed)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapToGridIfDisplayed, <OnFlag>)

Boolean value

Specifies whether to only snap to the grid when it is displayed; replaces the now obsolete document-level Boolean enumerator swSnapOnlyIfGridSplayed

Sketch Snaps - Angle

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsAngle)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSketchSnapsAngle, <OnFlag>)

Boolean value

Specifies whether to snap to angles; replaces the now obsolete document-level Boolean enumerator swSnapToAngle

Sketch Snaps - Snap angle

ISldWorks::GetUserPreferenceDoubleValue( swUserPreferenceDoubleValue_e.swSketchSnapsAngleValue)

ISldWorks::SetUserPreferenceDoubleValue( swUserPreferenceDoubleValue_e.swSketchSnapsAngleValue, <Value>)

Double value

Specifies angle to which to snap; replaces the now obsolete document-level double enumerator swSnapToAngleValue



Obsolete Enumerators

Enumerator

Comment

swSnapOnlyIfGridDisplayed

Obsolete; formerly a document-level Boolean enumerator that specified to snap to grid if swGridDisplay was turned on; replaced by the system-level Boolean swSketchSnapToGridIfDisplayed

swSnapToAngle

Obsolete; formerly a document-level Boolean enumerator that specified whether sketched lines snap to predefined angle; replaced by the system-level Boolean swSketchSnapsAngle

swSnapToAngleValue

Obsolete; formerly a document-level double enumerator that specified angle to which sketched lines should snap; double value; replaced by the system-level double enumerator swSketchSnapsAngleValue

swSnapToPoints

Obsolete; formerly a document-level Boolean enumerator that specified whether points snap to grid; replaced by the system-level Boolean enumerator swSketchSnapsGrid
