Sketch Ink Toolbar

Visible only on Windows 10:



Setting

Get/Set Methods

Return Value or <Value> or <OnFlag>



Comments

Pen > Colors

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPenSketchStrokeColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPenSketchStrokeColor, <Value>)

COLORREF value

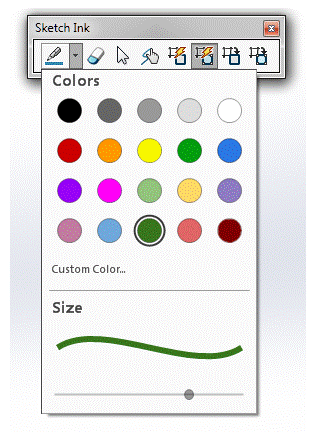

COLORREF values in SOLIDWORKS IColorTable; use function RGB to convert R,G, and B values to COLORREF values; the following colors are displayed in the graphic from left to right and top to bottom:

RGB(0,0,0)

RGB(102,102,102)

RGB(153,153,153)

RGB(221,221,221)

RGB(255,255,255)

RGB(204,0,0)

RGB(255,153,0)

RGB(255,255,0)

RGB(0,158,15)

RGB(153,0,255)

RGB(255,0,255)

RGB(147,196,125)

RGB(255,217,102)

RGB(142,124,195)

RGB(194,123,160)

RGB(111,168,220)

RGB(56,118,29)

RGB(224,102,102)

RGB(97,61,48)

Pen > Size

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPenSketchStrokeThickness)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swPenSketchStrokeThickness, <Value>)

Valid options as defined in swLineWeights_e:

swLW_THIN

swLW_NORMAL

swLW_THICK

swLW_THICK2

swLW_THICK3

swLW_THICK4

swLW_THICK5

Thickness of pen stroke; if you set an invalid value (<0 or >6) then the pen size is automatically set to swLW_THIN = 0
